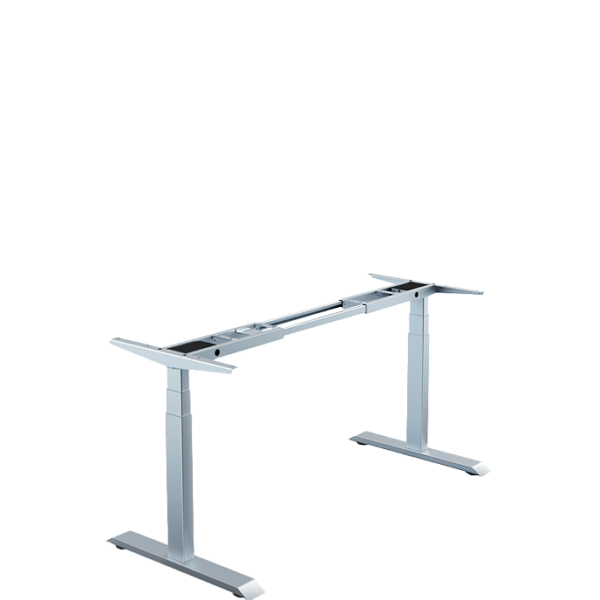

HT-S182 Lift Desk Complete Kit Solutions
General Features
- Column: Two columns
- Load Capacity: 1000N
- Speed: 38mm/s
- Adjustable frame: 1010-1800mm or custom
- Input Voltage: 110-240V widely voltage
- Memory position: 4 memory position set
- Brilliant digital LED display indicates height selection
- Smooth and gentle soft-start and soft-stop
- 0.1W standby Power eco friendly
- Anti-collision technology to prevent damage
- Duty Cycle: 10% max 2 min, continuous use
- Package: 755*330*160mm
- Gross Weight: 16.85kgs
- Warranty: 5 years for the machinery, 2 years for the electric.
HT-S182 Lift Desk Complete Kit Solutions
General Features
- Column: Eight columns
- Load Capacity: 1000N
- Speed: 38mm/s
- Adjustable frame: 1080-1800mm or custom
- Input Voltage: 110-240V widely voltage
- Memory position: 4 memory position set
- Brilliant digital LED display indicates height selection
- Smooth and gentle soft-start and soft-stop
- 0.1W standby Power eco friendly
- Anti-collision technology to prevent damage
- Duty Cycle: 10% max 2 min, continuous use
- Package: 755*330*160mm
- Gross Weight: 18.85kgs
- Warranty: 5 years for the machinery, 2 years for the electric.

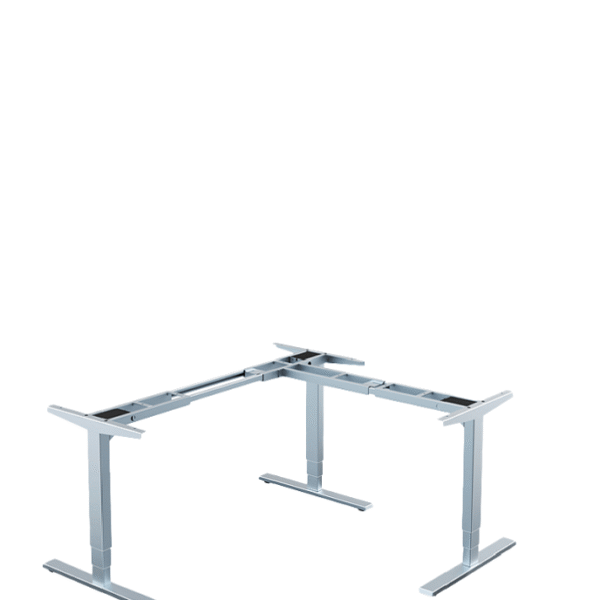

HT-S183 Lift Desk Complete Kit Solutions
Highly adjustable desk base-HT-S183 is an essential design for an office power desk. A digital display switch with four preset memories helps to set the preferred and comfortable position. When you press the HTS7-driven button on the programming box, the height ranges from a maximum of 45.3 inches to a minimum of 25.6 inches, and the speed of both feet is 0.79/second. The HT-S183 electric desk allows you to transform from a traditional sitting position to a flexible standing position, one of the best products for creativity and productivity. Our standard model does not have a beam, if you want to add this accessory, please contact us!..

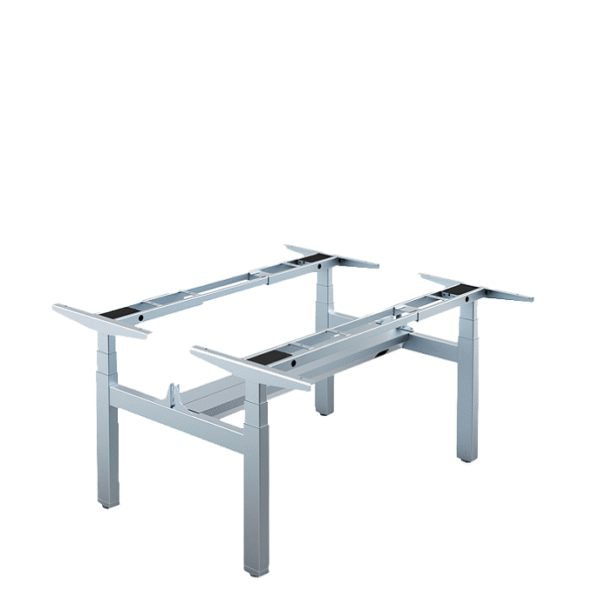

HT-S184 Lift Desk Complete Kit Solutions
General Features
- Column: Four columns
- Load Capacity: 1000N
- Speed: 38mm/s
- Adjustable frame: 1010-1800mm or custom
- Input Voltage: 110-240V widely voltage
- Memory position: 4 memory position set
- Brilliant digital LED display indicates height selection
- Smooth and gentle soft-start and soft-stop
- 0.1W standby Power eco friendly
- Anti-collision technology to prevent damage
- Duty Cycle: 10% max 2 min, continuous use
- Package: 755*330*160mm
- Gross Weight: 18.85kgs
- Warranty: 5 years for the machinery, 2 years for the electric.
HTA1 Lifting column
Product Features
- Motor type: permanent magnet DC motor
- Voltage: 12V DC, 24V DC, 36V DC, 48V DC
- Maximum self-locking force: 8,000N/Limited to thrust
- Maximum load: 6,000N/Limited to thrust
- Maximum tension: 2,000N/Maximum tension
- Maximum speed at full load: 18 mm/s (load 1,500N)
- The slowest speed at full load: 3.5mm/s (load 8,000N)
- Stroke: 100~900mm
- Minimum size: stroke + 180 mm (limited to 300 mm stroke or less)
- Minimum size: stroke + 200 mm (over 300 mm stroke or more)
- Maximum outer tube size: two sections, 173*121mm, rectangular
- Color: silver gray or customized
- IP rating: IP54
- Operating temperature range: -45°C~+75°C
- Full performance operating temperature range: +5°C~+45°C
- Higher duty cycle (25%)
- Other options: Hall sensor (single or double), motor wire outlet mode is upper or lower side outlet, can synchronize the lifting operation of the system
- High-strength metal zinc alloy housing protects motors and gears
- Limit switch (built-in: not adjustable)
HTA2 Lifting column
Product Features
- Motor type: permanent magnet DC motor
- Voltage: 12V DC, 24V DC, 36V DC, 48V DC
- Maximum self-locking force: 6,000N/Limited to thrust
- Maximum load: 6,000N/Limited to thrust
- Maximum tension: 2,000N/Maximum tension
- Stroke: 100~900mm
- Minimum size: stroke + 180 mm (limited to 300 mm stroke or less)
- Minimum size: stroke + 200 mm (over 300 mm stroke or more)
- Maximum outer tube size: two sections, 193*141mm, rectangular
- Color: silver gray or customized
- IP rating: IP54
- Operating temperature range: -45°C~+75°C
- Full performance operating temperature range: +5°C~+45°C
- Higher duty cycle (25%)
- Other options: Hall sensor (single or double), motor wire outlet mode is upper or lower side outlet, can synchronize the lifting operation of the system
- High-strength metal zinc alloy housing protects motors and gears
- Limit switch (built-in: not adjustable)
HTA3 Telescopic lifting column
Product Features
- Motor type: permanent magnet DC motor
- Voltage: 12V DC, 24V DC, 36V DC, 90V DC
- Maximum load: 6,000N/Limited to thrust
- Stroke: 200~2000mm(or customized)
- Minimum size: Stroke /2 + 200mm
- Maximum outer tube size: three sections, 193*141mm, rectangular
- Color: silver gray or customized
- IP rating: IP54
- Operating temperature range: -45°C~+75°C
- Full performance operating temperature range: +5°C~+45°C
- Higher duty cycle (25%)
- Other options: Hall sensor (single or double), motor wire outlet mode is upper or lower side outlet, can synchronize the lifting operation of the system
- High-strength metal zinc alloy housing protects motors and gears
- Limit switch (built-in: not adjustable)
HTB3 Lifting column
Product Features
- Motor type: permanent magnet DC motor
- Voltage: 12V DC, 24V DC, 36V DC, 48V DC
- Maximum self-locking force: 6,000N/Limited to thrust
- Maximum load: 4,000N/Limited to thrust
- Maximum tension: 2,000N/Maximum tension
- Maximum speed at full load: 35 mm / s (load 1,500N)
- The slowest speed at full load: 17.5mm/s (load 4,000N)
- Stroke: 200~1200mm
- Minimum size: Stroke /2 + 200mm
- Maximum outer tube size: three sections, 144*144mm, square
- Color: silver gray or customized
- IP rating: IP54
- Operating temperature range: -45°C~+75°C
- Full performance operating temperature range: +5°C~+45°C
- Higher duty cycle (25%)
- Other options: Hall sensor (single or double), motor wire outlet mode is upper or lower side outlet, can synchronize the lifting operation of the system
- High-strength metal zinc alloy housing protects motors and gears
- Limit switch (built-in: not adjustable)
HTD3 Robotic arm lifting column
Product Features
- Voltage: 48V DC, 220V AC
- Motor Options: DC or AC servo motor
- Maximum thrust: 4,000N
- Speed under load: 100 mm/s (2,000N load)
- Speed under load: 200 mm/s (1,000N load)
- Minimum installation dimensions: Stroke/2 + 350mm
- Dynamic lateral torque: 3,000Nm
- Static lateral torque: 400Nm
- Operating temperature range: -45°C to +75°C
- Protection rating: IP54
- Control options: Synchronous, standalone, integrated, CAN bus
HTD5-27 Five-section lifting column
Product Features
- Motor options: AC motor, stepper motor, servo motor
- Voltage: 24~48V DC or 220V, 380V AC
- Maximum self-locking force: 1,000N/Limited to thrust
- Maximum load: 800N/Limited to thrust
- Maximum tension: 500N/Maximum tension
- The fastest speed at full load: 2.5 M / min (load 500N)
- The slowest speed at full load: 1.5 M/min (load 800N)
- Minimum retracted height: There are three types:
- Minimum retracted height: 1.52M, 1.77M, 2.25M
- Expanded maximum height: 5.0M, 6.0M, 8.0M
- Dynamic lateral torque: 150Nm
- Static lateral moment: 250Nm
- Color: customized
- Safety certification: comply with ISO9001-2008, working temperature range:
- Operating temperature range: +5 ° C ~ + 45 ° C
- Storage temperature range: -35 ° C ~ + 85 ° C
- Protection level: IP65
- Tube material: 6063 aluminum,
- Pipe size: maximum pipe 147*147/minimum pipe 64*64
- Work control options: electric control, manual control, synchronous control, independent control
HTE2 Lifting column
Product Features
- Motor type: permanent magnet DC motor
- Voltage: 12V DC, 24V DC
- Maximum self-locking force: 3,000N/Limited to thrust
- Maximum load: 2,000N/Limited to thrust
- Maximum tension: 2,000N/Maximum tension
- Maximum speed at full load: 8.7 mm/s (load 1,000N)
- The slowest speed at full load: 4.3mm/s (load 3,000N)
- Stroke: 100~900mm
- Minimum size: stroke + 180 mm (limited to 300 mm stroke or less)
- Minimum size: stroke + 200 mm (>300 mm stroke)
- Maximum outer tube size: two sections, 180*65mm, square
- Color: silver gray or customized
- IP rating: IP54
- Operating temperature range: -45°C~+75°C
- Full performance operating temperature range: +5°C~+45°C
- Higher duty cycle (25%)
- Other options: Hall sensor (single or double), motor wire outlet mode is upper or lower side outlet, can synchronize the lifting operation of the system
- High-strength metal zinc alloy housing protects motors and gears
- Limit switch (built-in: not adjustable)
HTK1 Independent control box
Product Features
- Compact, high-power controller
- Number of controlled motors: 1
- Color: Black
- Casing material: Flame-retardant ABS
- Current limiting, overload protection
- Input voltage: 100-240VAC
- Output voltage: 24VDC
- Plug-in power cord (standard length: 3 meters) with optional power plugs for global compatibility
- Integrated mounting holes for independent installation on the device
- Ultra-low standby power consumption, meeting environmental standards
- Duty cycle: Up to 10%
- Duty cycle: 10%; 2 minutes of continuous use, 18 minutes of rest
- Ambient operating temperature: +5°C to +40°C
- IEC60601, RoHS certified
