An aviation borescope is a specialized inspection tool with a flexible or rigid camera probe that allows technicians to visually examine the internal parts of aircraft engines, turbines, and hard-to-reach components, helping identify cracks, wear, corrosion, or foreign object damage without dismantling the engine, making maintenance faster, safer, and more efficient.

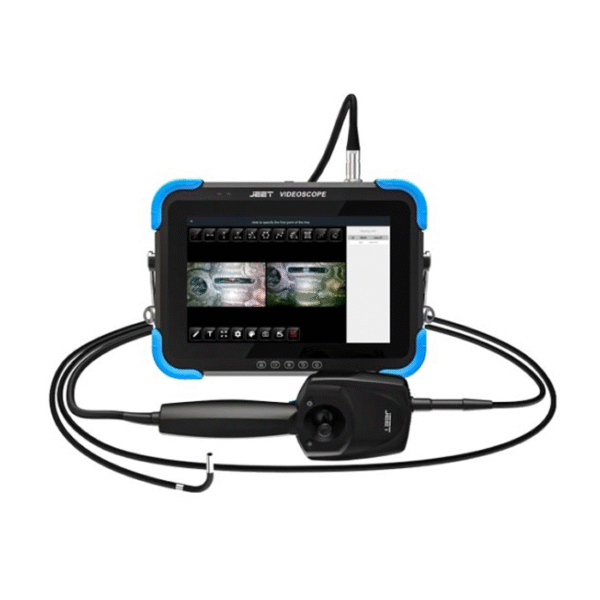

JEET F-Series Aviation Borescopes Industrial Endoscope For Inspection Of Aero-engines

Model F
Diameter 1.0/1.8/2.2/2.8/3.8/6.0/8.0mm
DOF 10~100mm
Sensor HD image sensor
Resolution HD 1000000 pixels
Working length 2m/3m, customized
Material Abrasion-resistant alloy
Articulation 360°
Bending angle ≤150°

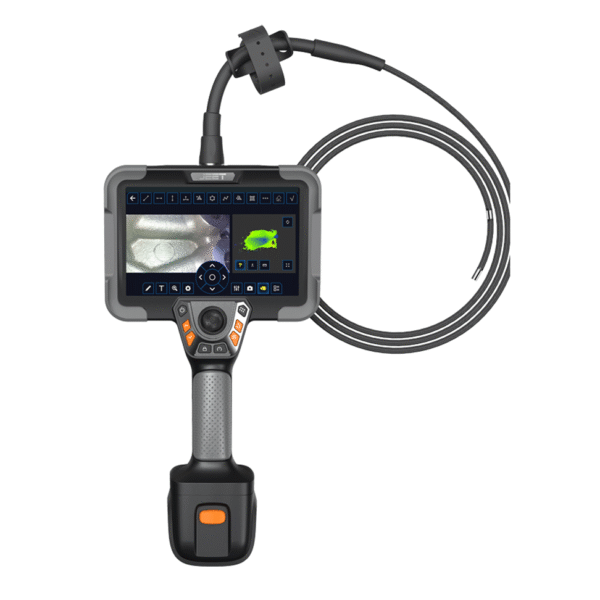

JEET JX Aviation Borescopes | Remote Visual Inspection Borescope

Model JX
Diameter 1.0/1.8/2.2/2.8/3.8/6.0/8.0mm
Tube Length 1m~10m
DOF 3-25mm/10-110mm
Articulation 360°all-way
Light Source LED/optic fiber
FOV 90°/120°
Measurement Accuracy ≥95%
Minimum Accuracy 0.01mm
Standard Accuracy 0.1mm

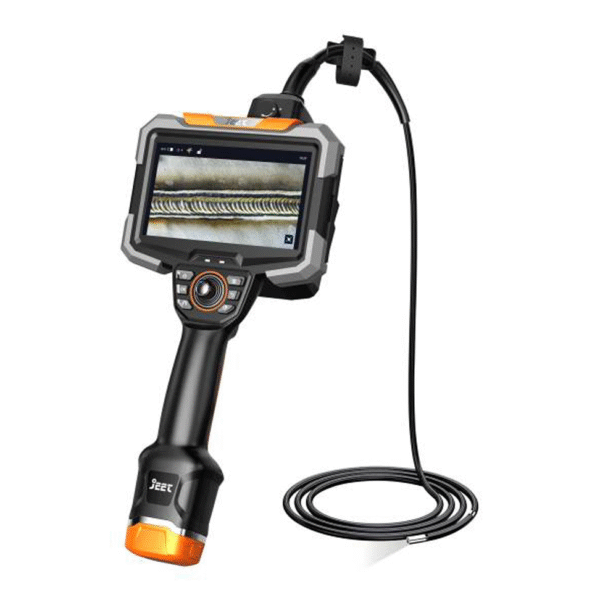

JEET K Series Motor-driven HD Videoscope

Model K
Probe diameter(mm) 1.0/1.8/2.2/2.8/3.8/4.2/6.0/8.0
Effective work length 1m-5m
Camera Pixels 1000000 pixels
Image/video resolution 1920x1080
DOF(mm) 10-100 20-120/5-50 10-100
FOV 90°/120°
Articulation 360° all way
Bending angle 210° big angle bending
Light source LED/ fiber

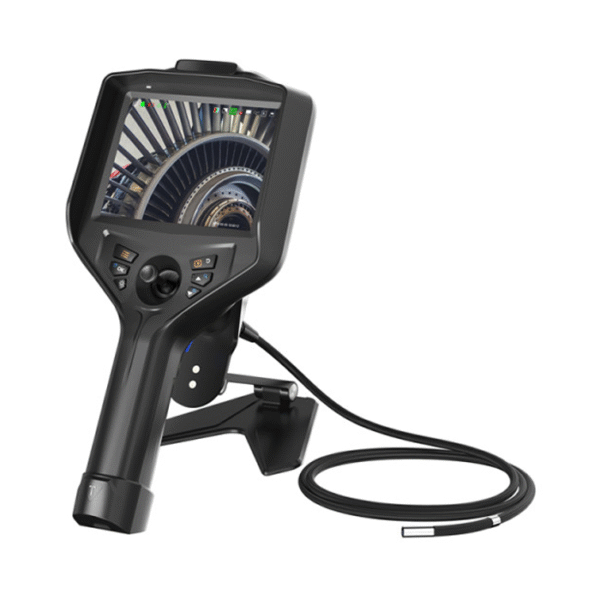

JEET T51X series Aviation Borescopes for the inspection of aero-engines

Model T51X
Probe Diameter(mm) Φ2.2/Φ2.4/Φ2.8/Φ3.8/Φ6
Camera Pixels 300,000/1,000,000
Image Resolution 640×480/1280×720
Video Resolution 640×480/1280×720
FOV 90°/120°
Light Source Front ceramic light/ Rear-mounted optic fiber cold
Illuminance Maximum: 50000+Lx 1~9 levels adjustable light
Tube Length 1.5m/3.0m/5.0m/30m (customized for other length)
FOB port Shenzhen
Terms of Payment D/P, Western Union, T/T
