An intelligent pressure calibrator is an advanced calibration instrument designed to measure, generate, and control pressure with high accuracy while offering smart features for efficient testing and documentation. These devices combine pressure measurement with digital intelligence such as automated calibration routines, data logging, and connectivity options.

Widely used in process industries, laboratories, and maintenance environments, intelligent pressure calibrators are ideal for calibrating pressure gauges, transmitters, and sensors. They help improve calibration accuracy, reduce manual effort, and ensure compliance with industry standards.

Equipped with features like touch interfaces, multiple pressure modules, real-time data recording, and communication capabilities (USB/Bluetooth), intelligent pressure calibrators provide a modern and reliable solution for precision calibration tasks.

Show sidebar
Show 9 24 36

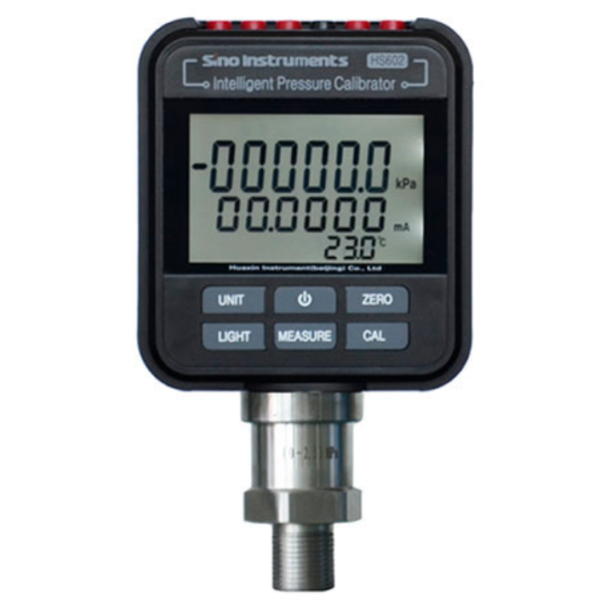

HS602 intelligent pressure calibrator digital high accuracy pressure calibration device with LCD display

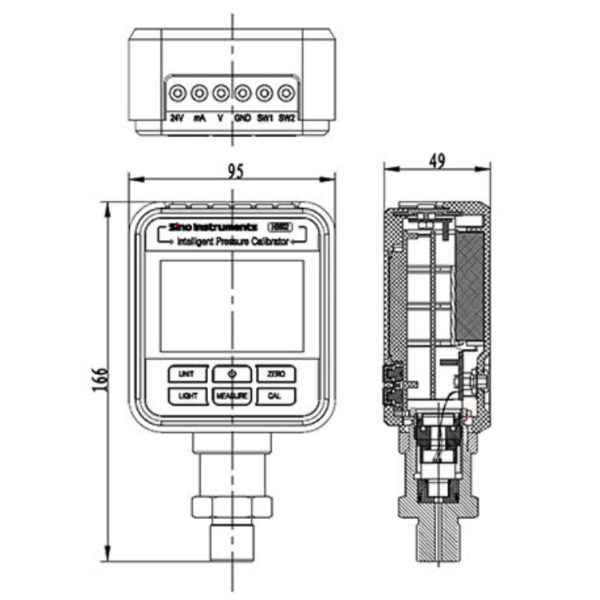

HS602 handheld pressure calibrator digital device used for industrial pressure calibration

HS602 Intelligent Pressure Calibrator – High Accuracy Digital Pressure Calibration Device 2500 Bar

Key Features

  • Ultra-high accuracy up to ±0.025% FS
  • Wide pressure range from vacuum to 2500 bar
  • Integrated pressure, current, and voltage measurement
  • HART communication for advanced calibration tasks
  • Pressure switch testing capability
  • Zero and full-scale calibration function
  • Overpressure warning with max/min monitoring
  • Data storage for up to 30 calibration records
  • RS232 communication for PC connectivity
  • Compact, lightweight, and portable design
  • Durable ABS housing with stainless steel connector

Electrical Measurement

  • Current Measurement: 0–25 mA
  • Voltage Measurement: 0–25 V
  • DC Output: 24V (≤30mA)

Technical Specifications

  • Accuracy: ±0.025% FS, ±0.05% FS
  • Operating Temperature: -10°C to 50°C
  • Display: 5–6 digit LCD with backlight
  • Battery: 7.4V rechargeable lithium battery (80 hours backup)
  • Pressure Units: kPa, Pa, psi, bar, mbar, mmH₂O, mmHg, MPa
  • Communication: RS232
  • Overpressure Protection: 120% full scale
  • Connections: M20×1.5 male, 1/4” NPT
  • Weight: 0.75 kg

Applications

Perfect for calibration of pressure transmitters, gauges, and sensors in industries such as oil & gas, power plants, manufacturing, calibration labs, and process automation systems.

Read more
Quick view
industrial digital pressure calibrator device portable calibration instrument with rechargeable battery

Industrial Digital Pressure Calibrator – Rechargeable High Accuracy Calibration Device

Key Features

  • High accuracy pressure calibration for industrial use
  • Compatible with multiple pressure connections (M20×1.5, 1/4” NPT)
  • Rechargeable lithium battery with up to 80 hours backup
  • Portable and easy-to-use design
  • Suitable for harsh environments (-10°C to 50°C)
  • Reliable performance for field and laboratory calibration

Technical Specifications

  • Pressure Connections: M20×1.5 male, 1/4” NPT male
  • Power Supply: Rechargeable lithium battery / power adaptor
  • Battery Life: Up to 80 hours
  • Operating Temperature: -10°C to 50°C
  • Relative Humidity: <95%
  • Atmospheric Pressure: 86~106 kPa

Applications

Widely used for calibration of pressure gauges, transmitters, and sensors in industrial automation, maintenance, and testing environments.
