DB series

DB

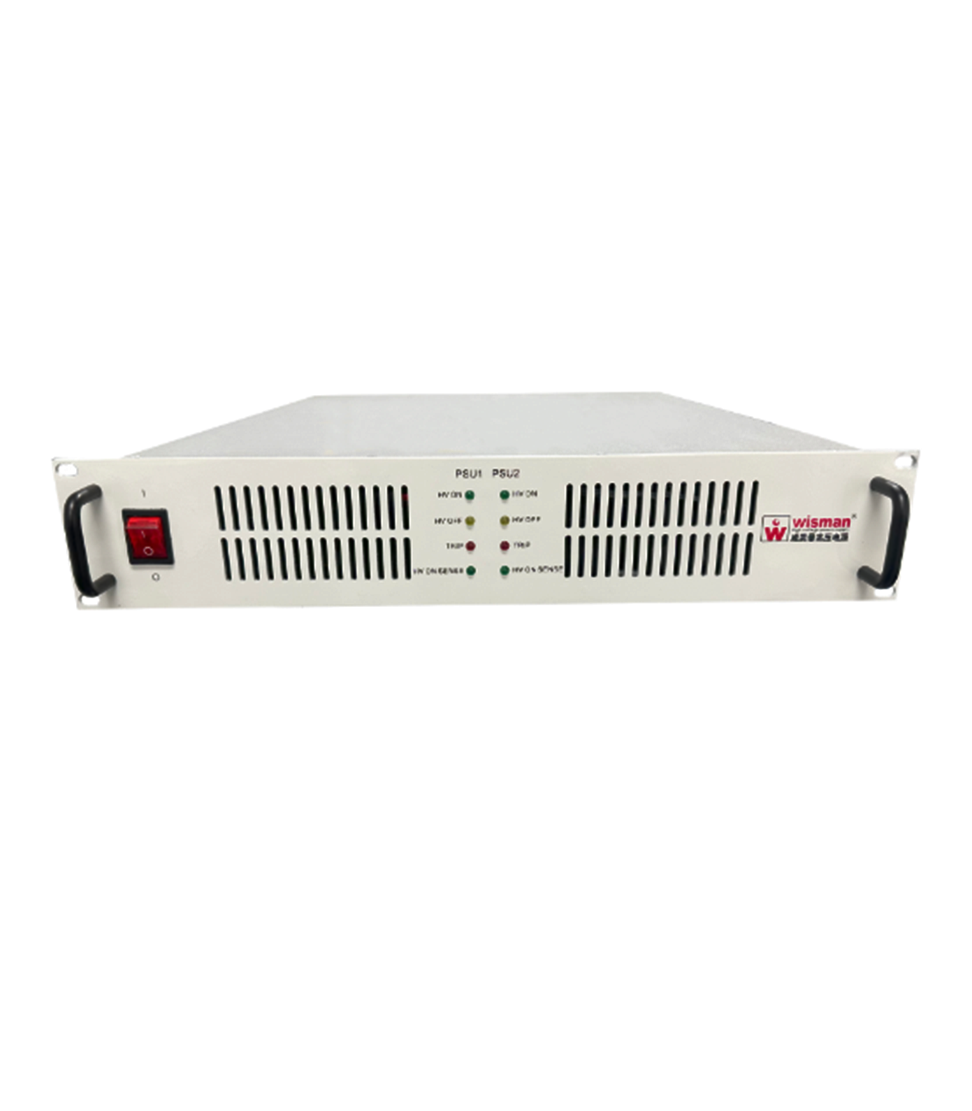

Wisman’s DB series high voltage power supply is a high-performance standard rack-mounted high-voltage power supply.DB series is a high voltage power supply specially used for accelerators and ion implanters, which can eliminate the charge accumulation problem of the electrostatic lens of the accelerator and ion implanters. DB series has perfect protection system. Local control, high voltage output end over voltage, over current, short circuit protection, arc, over temperature protection and safety interlock and other functions. Wide range of adjustments and flexible multiple optional features.

Typical applications:

Ion Implantation, Accelerator, ion beam power Supply, High Energy Particle Implantation, Medical, industrial, semiconductor, safety, environmental, Analytical instruments, Scientific Research.

SPECIFICATIONS:

Input Voltage:AC220±10%，（AC110V optional）Maximum current 10A

Output Voltage： -40kV

Output Power：400W

Ripple： 0.1% P-P

Temperature Coefficient：≤25ppm/℃，Higher temperature coefficients can be customized.

Stability: ＜100ppm/ 8 hours after starting for half an hour.

Voltage control:

Inside the power supply: The multi-turn potentiometer with the power supply can set the output voltage between 0V and the highest voltage.

Current control:

Inside the power supply: The multi-turn potentiometer with the power supply can set the current from 0 to the highest current.

Voltage adjustment rate:

Relative load：0.005%+500mV(no-load to rated load)

Relative input:±0.005%+500mV (input voltage change ±10%).

Current adjustment rate:

Relative load: 0.01%±100uA (no-load to rated load)

Relative input: ±0.005% (input voltage change ±10%).

Operating Temperature：0 到+50℃。

Storage Temperature：-40℃到+85℃。

Dimensions：H88mm(2U) W483mm，L483mm

【 Replaceable part number 】：E11295182； E19295183；E19295184

For information concerning our high voltage products, please call at 086 029 89282015 or visit our website www.wsmhv.com

Wisman advances medical care, industrial processes, quality control, scientific research, security and telecommunications by providing innovative high voltage power supplies including micro-modules high voltage power supply, modules high voltage power supply, X-ray generator, rack mount voltage power supply, special customized high voltage power supply, high voltage accessories, etc. that enable equipment manufacturers to improve their systems’ performance, reliability, cost and bottom line. Power range from 100mW to 200kW, voltage range from 60V to 500kV. You can purchase multiple varieties and specifications in one-stop from us. We have a high-voltage power supply research and development team, high-voltage power supply development software and software for testing high voltage insulation technology and zero current resonance technology, making our high voltage power supplies maintain high stability, low ripple, excellent in EMC. Our products are compact, highly efficient with a long operating life.

Wisman high voltage power supplies are competitively priced and a great idea for OEM customers.
