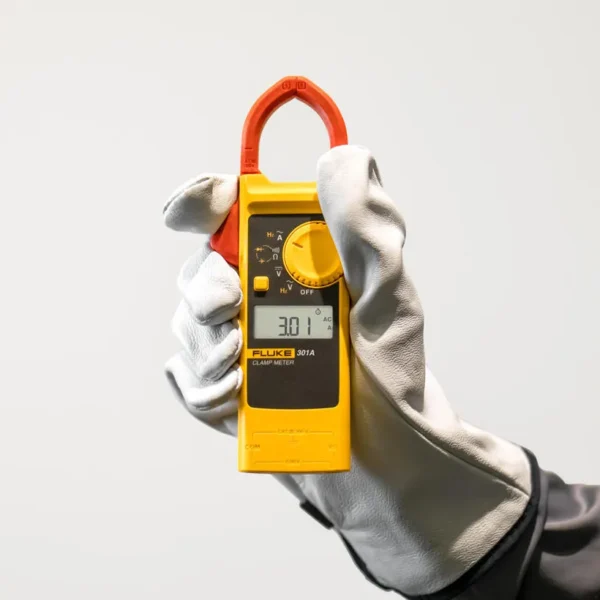

Fluke 301A
Original price was: ₹6,500.00.₹4,745.00Current price is: ₹4,745.00.
Fluke 301C
Original price was: ₹15,000.00.₹10,950.00Current price is: ₹10,950.00.
Fluke 301B
Original price was: ₹8,000.00.₹5,840.00Current price is: ₹5,840.00.
Key features

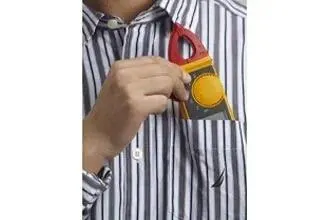

- The body weighs only 132g and is 16mm thick, which is light and portable and can be fitted into a pocket
- The slim and thin jaw of only 10mm can easily clamp onto tightly packed wires
- 600A AC range, 0.01A high resolution
- Tests voltage, resistance and continuity
- Tests current frequency and voltage frequency
- Tests capacitance and diodes
- Backlight
Description

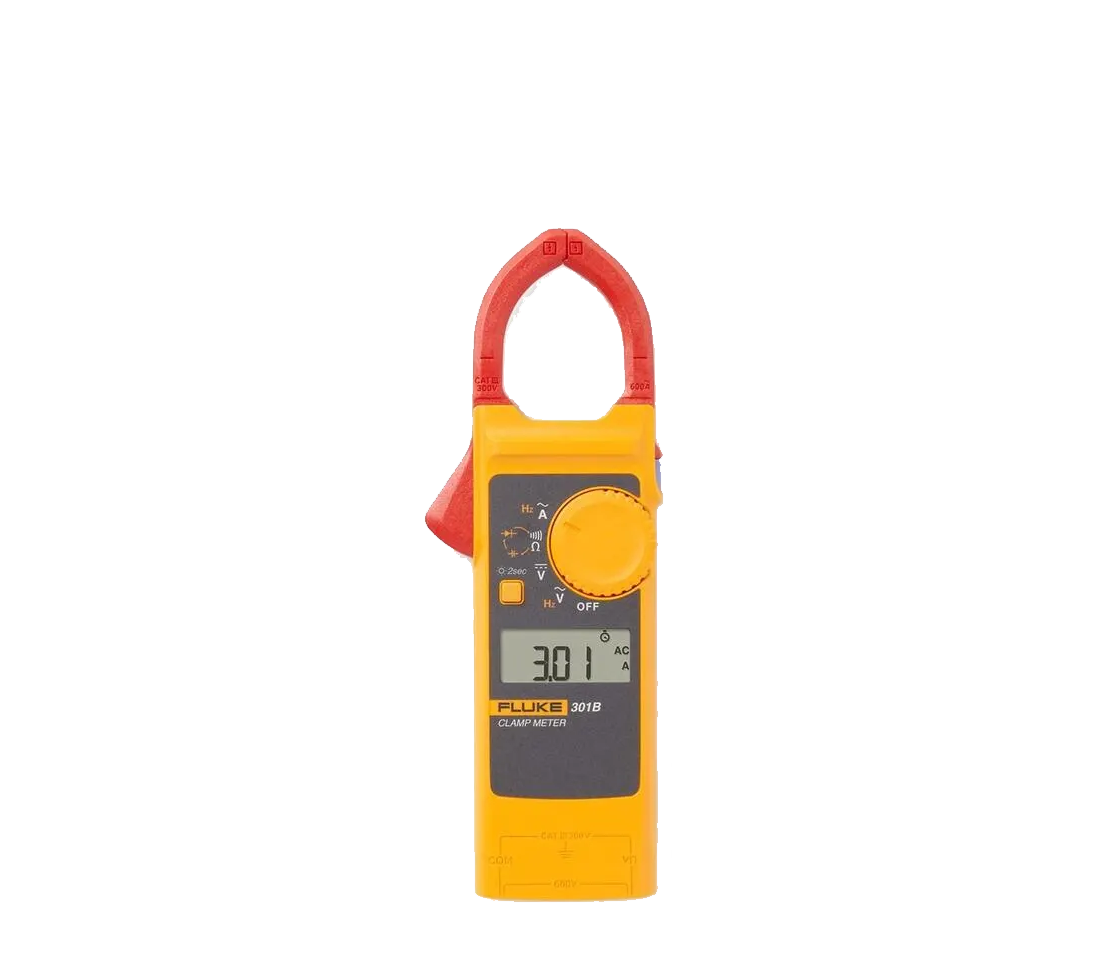

Product overview: Fluke 301B
Fluke 301B

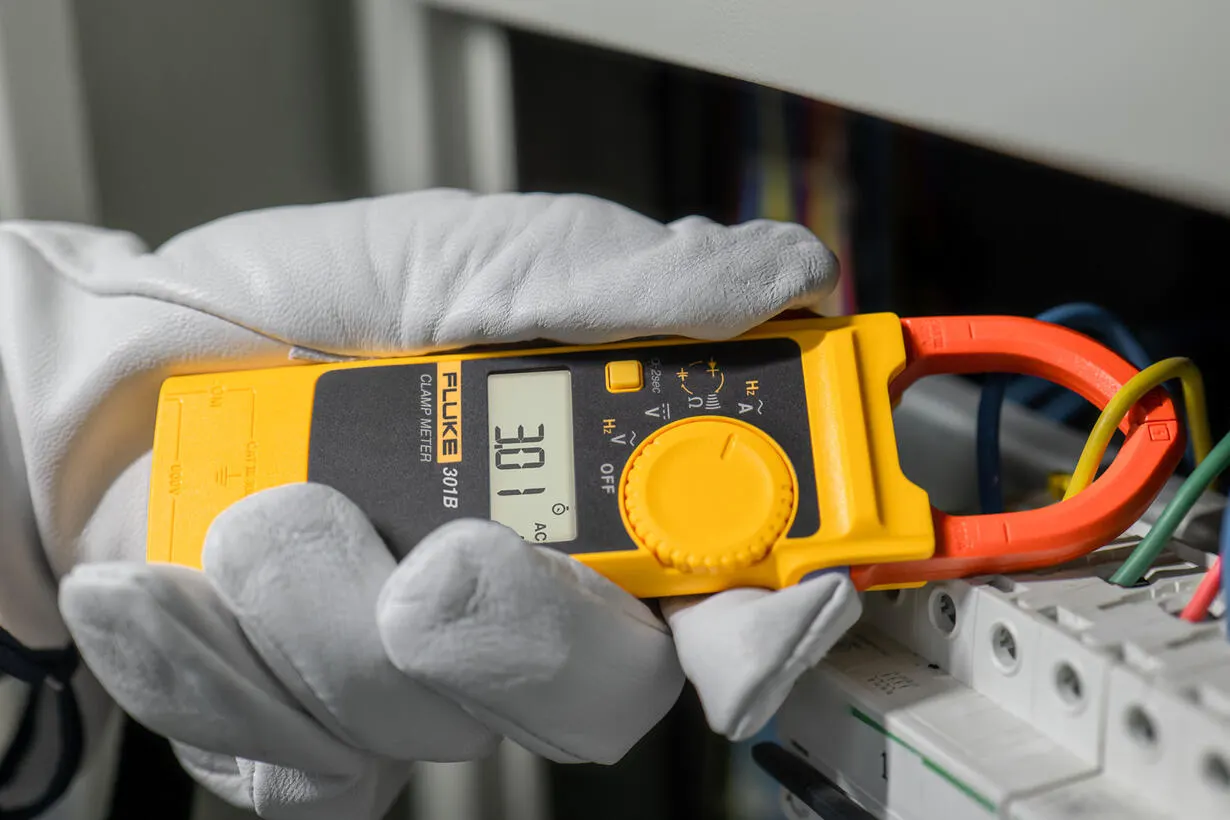

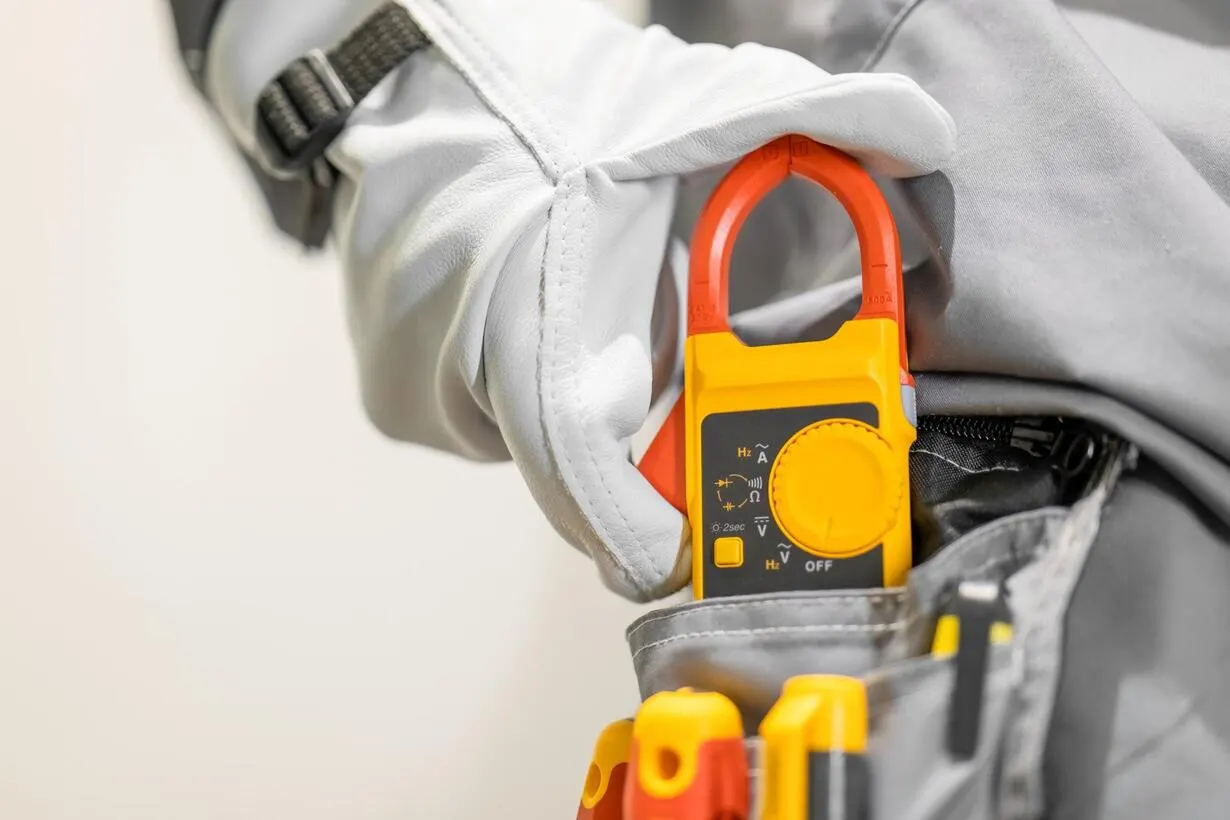

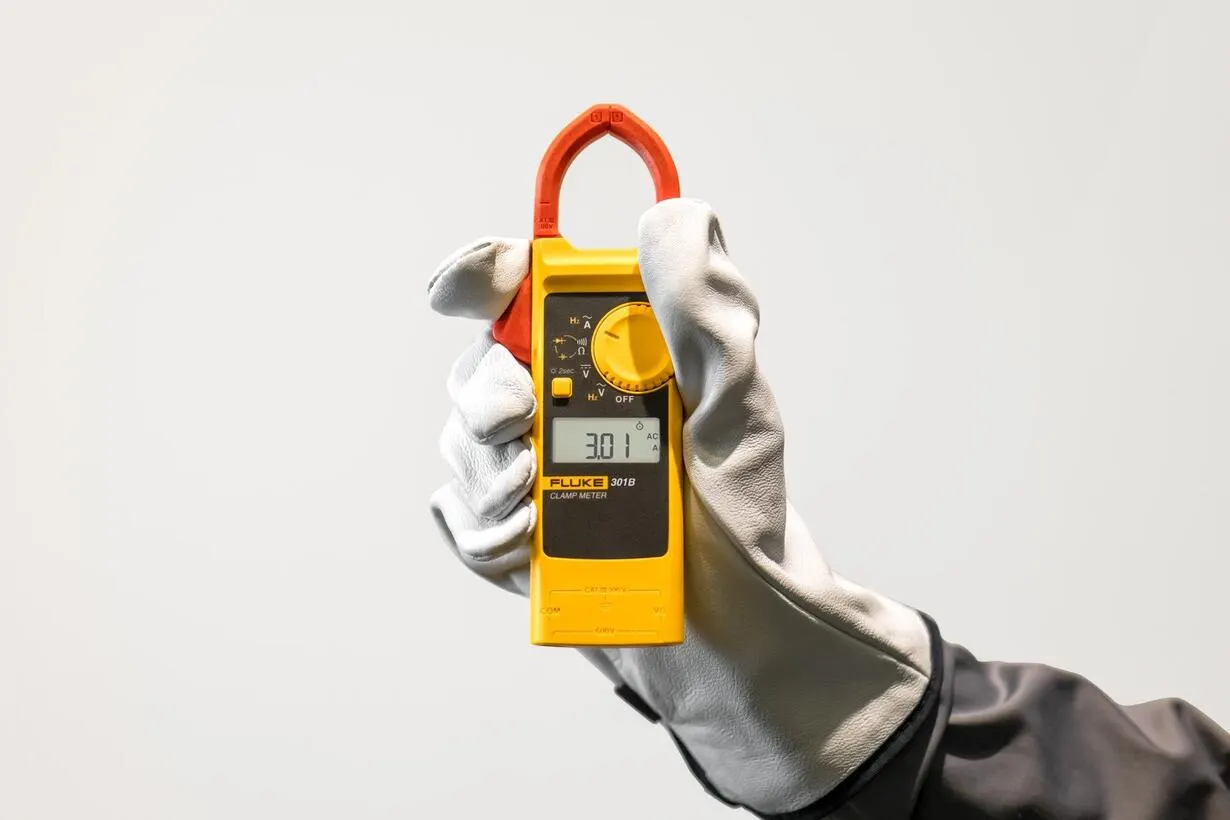

The Fluke 301B Clamp Meter has a lightweight and compact body, which allows you to carry it around in your pocket. The slim and thin jaw can easily clamp onto tightly packed wires. The Fluke 301B tests current, voltage, resistance, continuity, frequency (voltage and current), capacitance, and diode, etc.. You can handle more testing needs with it.
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Shipping & Delivery
Specifications
Specifications: Fluke 301B
Specifications
Accuracy is specified for 1 year after calibration, with operating temperatures from 18 °C to 28 °C and relative humidity from 0 % to 75 %. Accuracy specifications take the form of:
±([% of Reading] + [Number of Least Significant Digits]).
| Models | 301A/301A+ | 301B | 301C | |||||
| AC Current (45 to 400 Hz) | Range | 40.00 A | 400.0 A | 60.00 A | 600.0 A | 60.00 A | 600.0 A | 1000 A |
| Resolution | 0.01 A | 0.1 A | 0.01 A | 0.1 A | 0.01 A | 0.1 A | 1 A | |
| Accuracy | 2 % + 10 | 2 % + 5 | 2 % + 10 | 2 % + 5 | 2 % + 10 | 2 % + 5 | 2 % + 5 | |
| AC Voltage (45 to 400 Hz) | Range | 600.0 V | 600.0 V | 600.0 V | ||||
| Resolution | 0.1 V | 0.1 V | 0.1V | |||||
| Accuracy | 1.5% + 5 | 1.5% + 5 | 1.5% + 5 | |||||
| DC Voltage | Range | 600.0 V | 600.0 V | 600.0 V | ||||
| Resolution | 0.1 V | 0.1 V | 0.1 V | |||||
| Accuracy | 1% + 5 | 1% + 5 | 1% + 5 | |||||
| Resistance | Range | 600.0 Ω 6.000 kΩ 60.00 kΩ |
600.0 Ω 6.000 kΩ 60.00 kΩ |
600.0 Ω 6.000 kΩ 60.00 kΩ |
||||
| Accuracy | 1% + 5 | 1% + 5 | 1% + 5 | |||||
| Voltage Frequency | Range | 9.999 Hz 99.99 Hz 999.9 Hz 9.999 kHz 99.99 kHz |
9.999 Hz 99.99 Hz 999.9 Hz 9.999 kHz 99.99 kHz |
9.999 Hz 99.99 Hz 999.9 Hz 9.999 kHz 99.99 kHz |
||||
| Accuracy | 0.1% + 3 | 0.1% + 3 | 0.1% + 3 | |||||
| Current Frequency | Range | 45.0 to 400.0 Hz | 45.0 to 400.0 Hz | 45.0 to 400.0 Hz | ||||
| Accuracy | 0.1% + 3 | 0.1% + 3 | 0.1% + 3 | |||||
| Capacitance | Range | 9.999 uF | 99.99 uF 999.9 uF | 9.999 uF | 99.99 uF 999.9 uF | 9.999 uF | 99.99 uF 999.9 uF | |
| Accuracy | 2 % + 5 | 5% + 5 | 2 % + 5 | 5% + 5 | 2 % + 5 | 5% + 5 | ||
| Diode | Range | 3.000 V | 3.000 V | 3.000 V | ||||
| Accuracy | 10% | 10% | 10% | |||||
| T-rms Value | - | - | ● | |||||
| Continuity | ● | ● | ● | |||||
| Hold | ● | ● | ● | |||||
| Backlight | - | ● | ● | |||||
| Safety rating | CAT III 300V | CAT III 300V | CAT III 300V | |||||
| Weight | 132 g | 132 g | 132 g | |||||
| Size | 190 mm x 52 mm x 16 mm | 190 mm x 52 mm x 16 mm | 190 mm x 52 mm x 16 mm | |||||
| Jaw Opening | 34 mm | 34 mm | 34 mm | |||||
| Clamp Arm Size | 10 mm X 10 mm | 10 mm X 10 mm | 10 mm X 10 mm | |||||
| Battery | (2) AAA Batteries | (2) AAA Batteries | (2) AAA Batteries | |||||
| Warranty | 1 year | 1 year | 1 year | |||||
| General Specifications | |
| Maximum Voltage between any Terminal and Earth Ground | 300 V |
| Maximum Differential Voltage between V/Ω and COM Terminals | 600 V |
| Display (LCD) | 6000 counts, updates 3 times per second |
| Battery Type | 2 AAA, IEC LR03 |
| Battery Life | 500 hours minimum |
| Auto Power Off Time | 20 minutes |
| Temperature | Operating: -10 °C to 50 °C； |
| Storage: -30 °C to 60 °C | |
| Relative Humidity | Operating Humidity: Non condensing (<10°C); ≤ 90 % RH at 10 °C to 30 °C; ≤ 75 % RH at 30 °C to 40 °C; ≤ 45 % RH at 40 °C to 50 °C; |
| Altitude | Operating: 2000 m; Storage: 12000 m |
| Temperature Coefficient | 0.1 x (specified accuracy) /°C (<18 °C or>28 °C) |
| Dimensions (H x W x L) | 190 mm x 52 mm x 16 mm |
| Weight | 132 g |
| Jaw Opening | 34 mm |
| Ingress Protection Rating | IP30 |
| Safety | IEC 61010--1, IEC61010-2-032 CAT III 300 V, Pollution Degree 2 |
| Electromagnetic Environment | IEC 61326--1: Portable |
Related products
Fluke 301C
Key features
- The body weighs only 132g and is 16mm thick, which is light and portable and can be fitted into a pocket
- The slim and thin jaw of only 10mm can easily clamp onto tightly packed wires
- Tests AC voltage and current with the True-rms function.
- 1000A AC range, 0.01A high resolution
- Tests voltage, resistance and continuity
- Tests current frequency and voltage frequency
- Tests capacitance and diodes
- Backlight
Fluke 301D AC/DC Clamp Meter
Key features
- The body weighs only 154g and is 16mm thick, which is light and portable and can be put into a pocket
- The slim and thin jaw of only 10mm can easily fit into tightly packed wires
- 600A AC/DC range (D model), 0.01A high resolution
- Tests voltage, resistance and continuity
- Tests current frequency and voltage frequency
- Tests capacitance and diodes
- Backlight
Fluke 301E Series AC/DC Clamp Meter
Key features
- The body weighs only 154g and is 16mm thick, which is light and portable and can be put into a pocket
- The slim and thin jaw of only 10mm can easily fit into tightly packed wires
- 1000A AC/DC (E model), 0.01A high resolution
- Tests voltage, resistance and continuity
- Tests current frequency and voltage frequency
- Tests capacitance and diodes
- Backlight
Fluke 302+ CAT III Digital Clamp Meter
Key features
- AC current measurements up to 400 A, handling your everyday electrical maintenance needs
- Comes with the TL75 Hard Point™ Test Lead Set offering the convenience of a test lead and probe in one unit with a variety of connections
- Rugged, easy-to-use digital clamp meter with CAT IV 300 V/CAT III 600 V safety rating

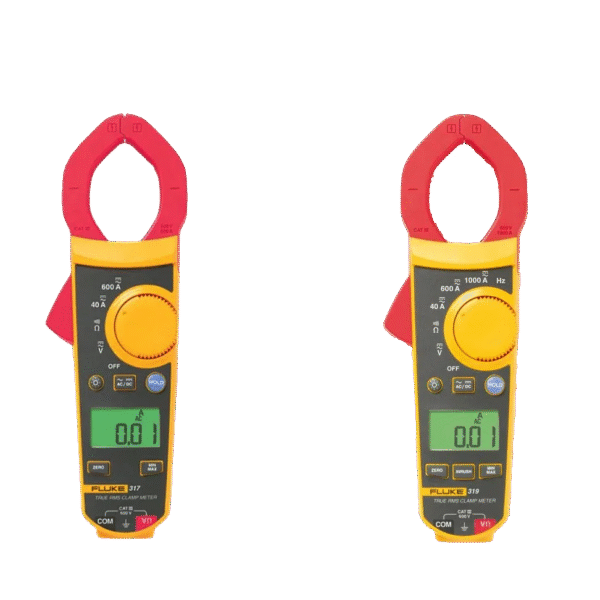

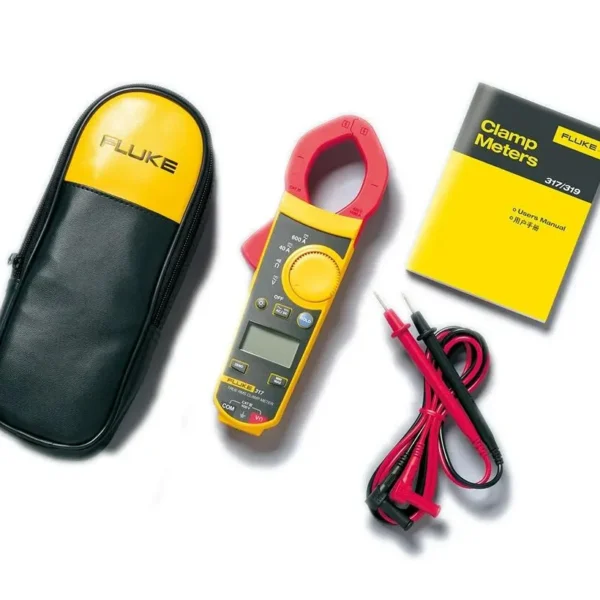

Fluke 317 Clamp Meter
Key features
The two models are economic, compact and offer a range of special features:
- Unique 40A high-precision low current measurement--0.01A high-resolution, 1.6% high-precision measurement
- The clamps are slim, lightweight, and portable, making them ideal for use in small, confined spaces
- The large backlight display facilitates readings in dark environments
- Current frequency measurement
- Precision down to 0.01A and 0.1V
- 600A AC/DC current measurement
- 600V AC/DC voltage measurement
- 4000Ω resistance measurement
- Continuity beeper
- Auto off function enhances battery life, meaning the instrument can work when you need it screen store ‘hold’ function for capturing a measurement result on the screen
- One year warranty
Fluke 319 Clamp Meter
Key features
The two models are economic, compact and offer a range of special features:
- Unique 40A high-precision low current measurement--0.01A high-resolution, 1.6% high-precision measurement
- The clamps are slim, lightweight, and portable, making them ideal for use in small, confined spaces
- The large backlight display facilitates readings in dark environments
- Starting current (inrush) functionality (319) allows measurement of the starting current of electrical and lighting equipment, for example. (319)
- Current frequency measurement
- Precision down to 0.01A and 0.1V
- 1000A/600A AC/DC current measurement
- 600V AC/DC voltage measurement
- 4000Ω resistance measurement
- Continuity beeper
- Auto off function enhances battery life, meaning the instrument can work when you need it screen store ‘hold’ function for capturing a measurement result on the screen
- One year warranty

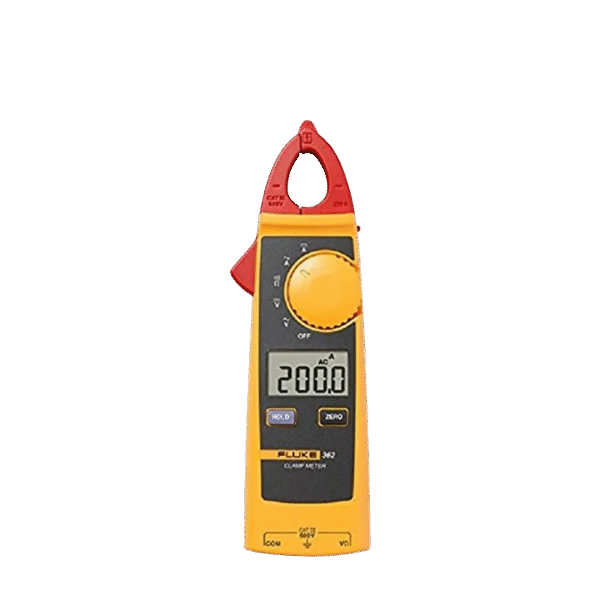

Fluke 362 Clamp Meter
