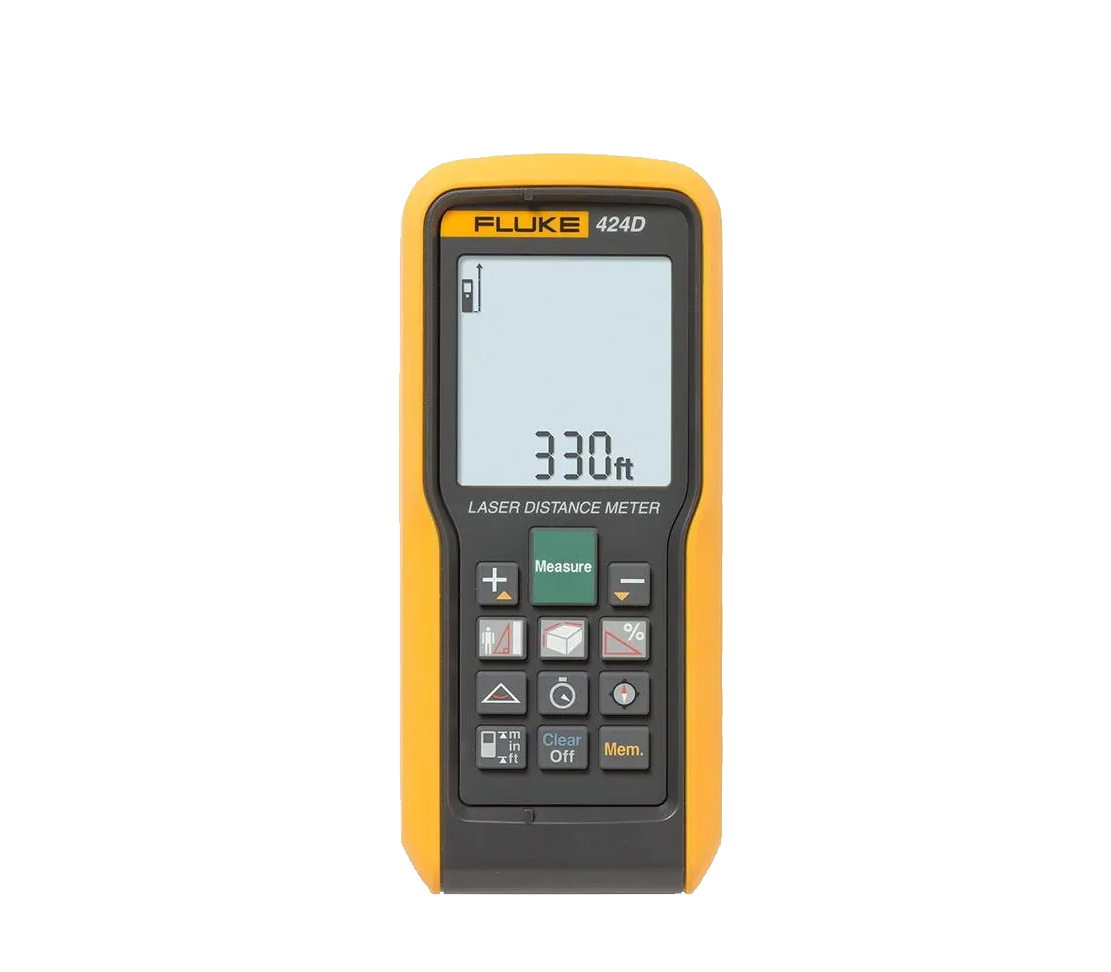

Fluke 424D Laser Distance Meter
Original price was: ₹40,200.00.₹29,346.00Current price is: ₹29,346.00.
Key features
- Versatile laser distance meter that instantly measures up to 100 meters (330 feet) with one-button point-and-click operation
- Quickly calculates area (square feet/meters) and volume
- Includes 180° inclination sensor for leveling and height tracking
- Offers enhanced Pythagoras calculation for determining distance indirectly from three other measurements
Description

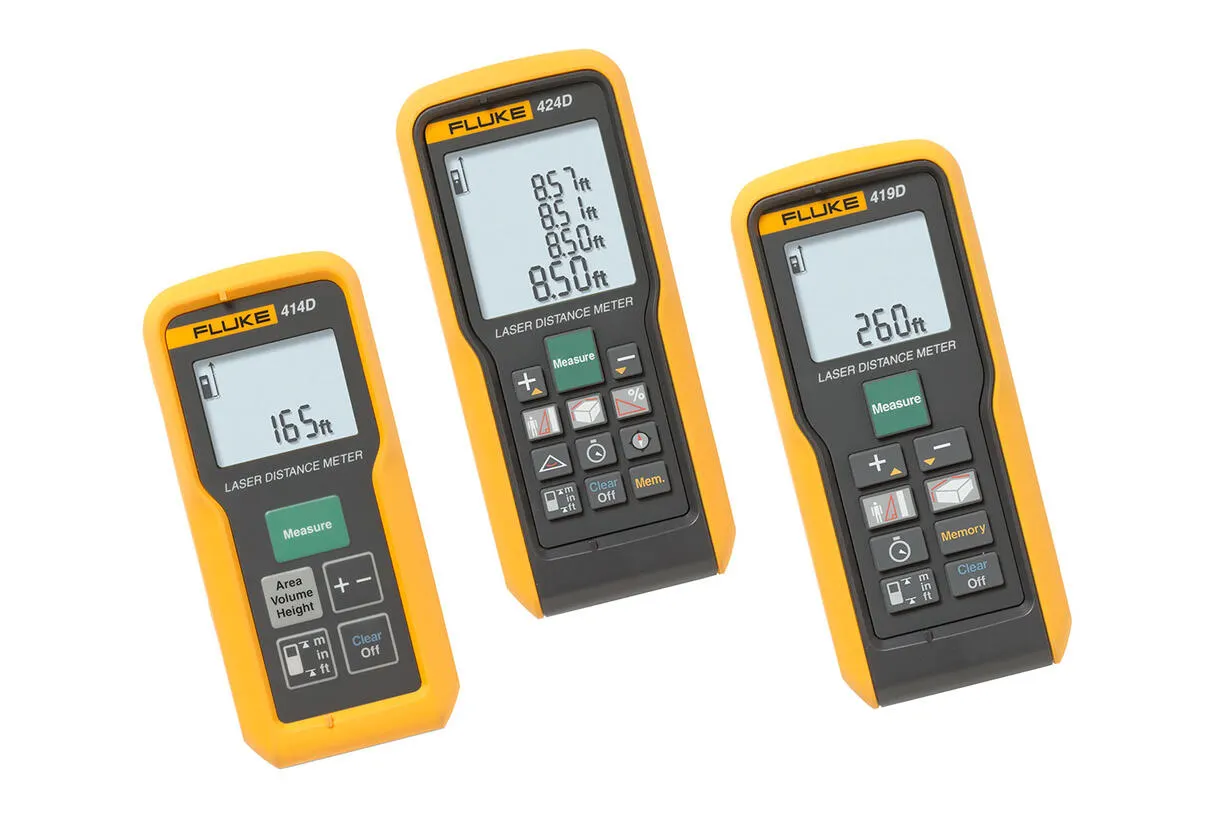

Product overview: Fluke 424D Laser Distance Meter
Fluke 424D Laser Distance Meter delivers a full measure of sophisticated features
The Fluke 424D is our most sophisticated laser distance meter packed with versatile features to save you more time in more situations and reduce errors. Just point and click to instantly measure up to 100 meters (330 ft.), accurate to + 1 mm. No scales to interpret or misread. The extra bright laser supports easy targeting even at longer distances. Extra features like a 180º inclination sensor, the corner angle feature, and a built-in compass make it easy to get accurate measurements in hard-to-reach locations. You’ll be able to see the results more clearly on the large, four-line backlit display. No matter your job, the 424D laser distance meter will help you do the work of two people on your own.
Other helpful features:
- Provides a compass “heading” for distance measurement
- Provides easy to-use addition and subtraction function
- Includes automated end-piece correction. When measuring from an edge or corner, a built-in sensor detects the position of this bracket and automatically changes the reference point.
- Provides audible keypad feedback
- Offers improved visibility with a bigger, 4-line backlit display
- Improved battery life of 5000 measurements with automatic shut-off feature
- Offers minimum/maximum tracking to measure the room’s diagonal and horizontal distance from a stable measurement point
- Allows mounting on a tripod for stable long distance measurements
- Includes stake out function for marking off defined measured lengths
- Stores the last twenty measurements for quick recall
- Strong environmental protection with IP54 (water spray and dust proof) sealing
- Powered by two AAA batteries
- Comes with carrying pouch and three-year warranty -30-
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Shipping & Delivery
Specification
Specifications: Fluke 424D Laser Distance Meter
| Distance Measurement | |
| Typical measuring tolerance 1 | ±1.0 mm 3 |
| Maximum measuring tolerance 2 | ±2.0 mm 3 |
| Range At Leica Target Plate GZM26 | 100 m / 330 ft |
| Typical range 1 | 80 m / 260 ft |
| Range at unfavorable condition 4 | 60 m / 195 ft |
| Smallest unit displayed | 6 / 30 / 60 mm (10 / 50 / 100 m) |
| Ø Laser point at distances | 6 / 30 / 60 mm (10 / 50 / 100 m) |
| Tilt Measurement | |
| Measuring tolerance to laser beam 5 | ±0.2° |
| Measuring tolerance to housing 5 | ±0.2° |
| Range | 360° |
| General | |
| Laser cass | 2 |
| Laser type | 635 nm, < 1 mW |
| Protection class | IP54 |
| Automatic laser off | After 90 seconds |
| Automatic power off | After 180 seconds |
| Battery life (2 x AAA) 1.5 V NEDA 24A/IEC LR03 | Up to 5,000 measurements |
| Size (L x W x D) | 127 x 56 x 33 mm |
| Weight (with batteries) | 158 g |
| Temperature range Storage operation | -25°C to +70°C (-13°F to +158°F) |
| -10°C to +50°C (14°F to +122°F) | |
| Calibration cycle | Tilt and compass |
| Maximum altitude | 3000 m |
| Maximum relative humidity | 85% at 20°F to 120°F (-7°C to 50°C) |
| Safety | IEC Standard No. 61010-1:2001 |
| EN60825-1:2007 (Class II) | |
| EMC | EN 55022:2010 |
| EN 61000-4-3:2010 | |
| EN 61000-4-8:2010 | |
| 1. Applies for 100% target reflectivity (white painted wall), low background illumination, 25°C. 2. Applies for 10 to 500% target reflectivity, high background illumination, -10°C to +50°C. 3. Tolerances apply from 0.05 m to 10 m with a confidence level of 95%. The maximum tolerance may deteriorate to 0.1 mm/m between 10 m to 30 m and to 0.15 mm/m for distances above 30 m. 4. Applies for 100% target reflectivity, background illumination between 10'000 lux and 30'000 lux. 5. After user calibration. Additional angle related deviation of ±0.01° per degree up to ±45° in each quadrant. Applies at room temperature. For the whole operating temperature range the maximum deviation increases by ±0.1°. |
|
Related products

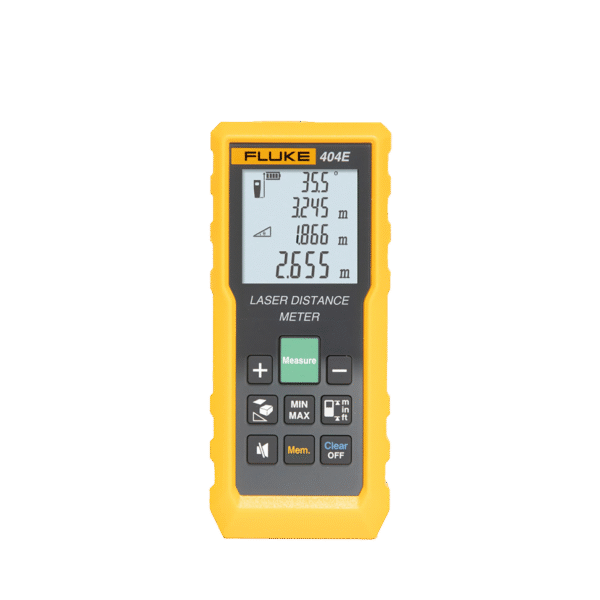

Fluke 404E 40mtr Digital Laser Distance Meter
About this item
VERSATILE MEASUREMENT FUNCTIONS:
The Fluke Laser Distance Meter offers quick and precise distance measurements, along with automatic calculations for area, volume, and indirect (Pythagorean) measurements. Its multi-function capability makes it an essential tool for professionals across construction, engineering, architecture, and interior design fields.
PRECISE HEIGHT & AUTO-LEVEL FUNCTION:
Equipped with an intelligent auto-leveling system, this device guarantees accurate results even when not perfectly aligned. It also supports height measurement, making it ideal for vertical and elevation-based projects.
DURABLE, RUGGED CONSTRUCTION:
Designed to withstand demanding work environments, this Fluke Laser Distance Meter is both dust- and water-resistant with an IP54 protection rating. It has successfully passed a 1-meter drop test, ensuring reliable performance in harsh or outdoor conditions.
ELECTRONIC ANGLE DISPLAY & LEVEL INDICATION:
The built-in electronic angle sensor delivers highly accurate angle readings between two points. It also includes an auxiliary level measurement function for precise leveling of surfaces.
SMART DATA STORAGE & LONG BATTERY PERFORMANCE:
Easily store up to 30 measurement records for quick access to previous readings. The meter supports up to 5000 single measurements on one battery cycle and features an auto power-off function after 3 minutes of inactivity to conserve energy.

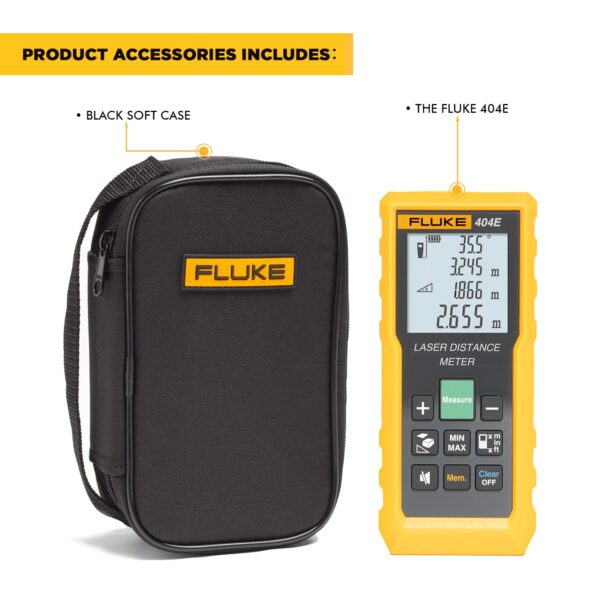

Package Includes:
-
1 × Laser Distance Meter
-
2 × AAA Alkaline Batteries
-
1 × User Manual
-
1 × Qualification Certificate
-
1 × Vinyl Carrying Pouch

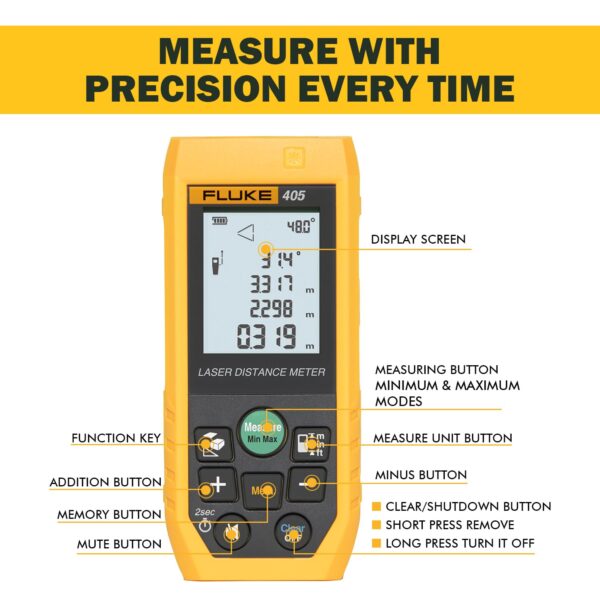

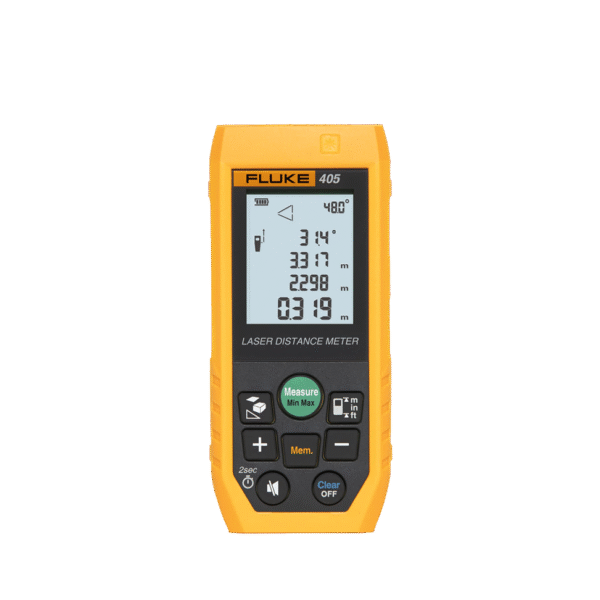

Fluke 405 50mtr Digital Laser Distance Meter Tape
Key features
- Quickly measure distance, calculate area / volume / pythagoras
- Auto level and height
- Built to withstand rainy or dusty conditions: 1-meter drop tested with rated IP54
- Electronic angle display, auxiliary level measurement
- Up to 100 sets of data storage
- The battery life up to 5000 single measurements
- Automatically power off after 3 minutes of inactivity

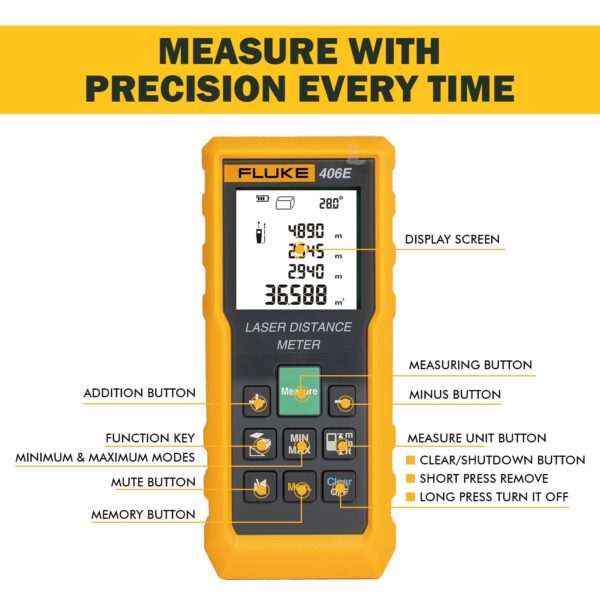

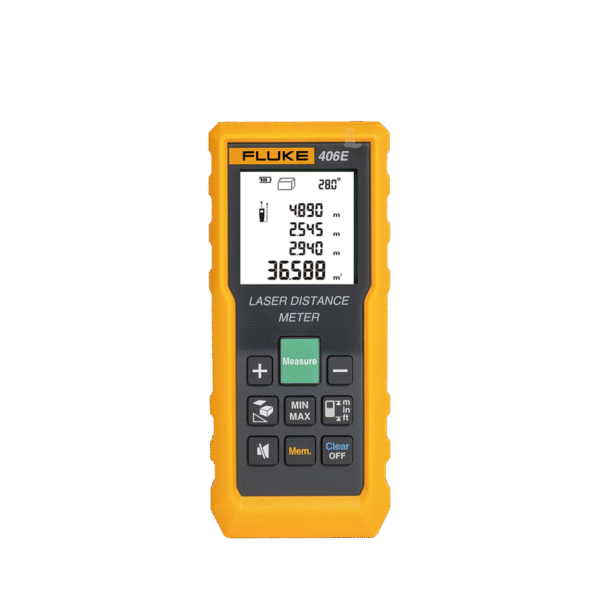

Fluke 406E 60mtr Digital Laser Distance Meter Tape
Key features
- Quickly measure distance, calculate area / volume / pythagoras
- Auto level and height
- Built to withstand rainy or dusty conditions: 1-meter drop tested with rated IP54
- Electronic angle display, auxiliary level measurement
- Up to 100 sets of data storage
- The battery life up to 5000 single measurements
- Automatically power off after 3 minutes of inactivity
Fluke 408 Laser Distance Meter 80m
Key Features
- Quickly measure distance (upto 100m), calculate area / volume / angle
- 2-inch HD display, clear viewing in full sunlight
- Rechargeable battery with Type-C charging port
- Water and dust proof - IP65
- Extremely rugged - 1 meter drop tested
- 100 sets of data storage
- Long battery life up to 5000 single measurements
- Automatic power off to save battery

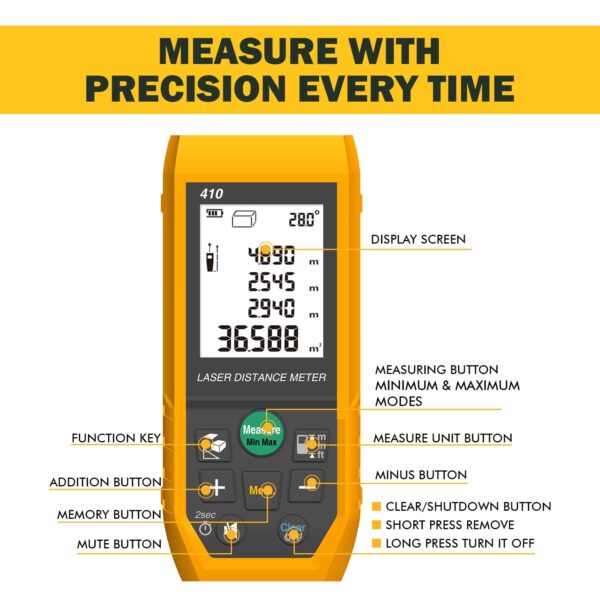

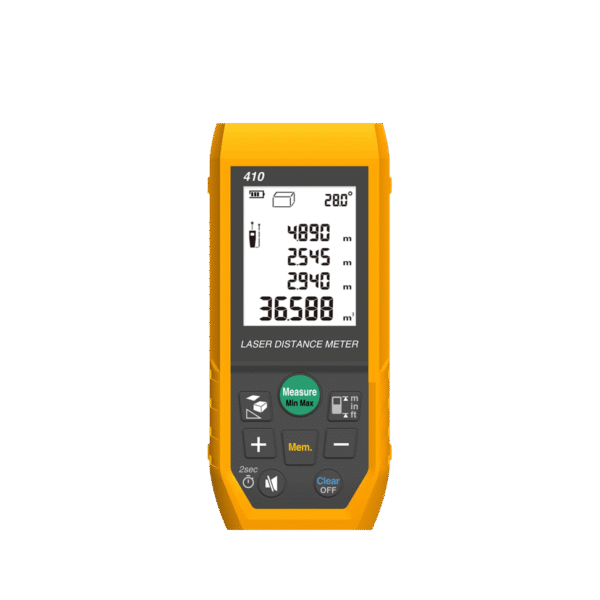

Fluke 410 100mtr Digital Laser Distance Meter Tape
Key features
- Quickly measure distance, calculate area / volume / Pythagoras
- Auto level and height
- Built to withstand rainy or dusty conditions: 1-meter drop tested with rated IP65
- Electronic angle display, auxiliary level measurement
- Up to 100 sets of data storage
- The battery life up to 5000 single measurements
- Automatically power off after 3 minutes of inactivity
- Universal tripod interface, easy to use
- Type-C charging port, strong endurance
- 2-inch HD display, clear viewing in full sunlight

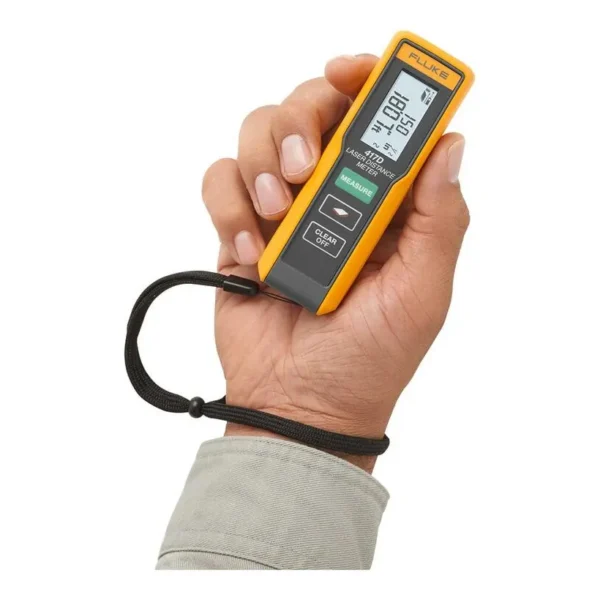

Fluke 417D Laser Distance Meter
