HS108 High Accuracy Digital Pressure Gauge
Key Features
- Ultra-high accuracy up to ±0.025% FS
- Wide pressure range from vacuum to 2500 bar
- 6-digit LCD display with adjustable backlight
- Maximum and minimum pressure monitoring
- Overpressure warning for enhanced safety
- Stores calibration records for up to 30 instruments
- Automatic power-off for energy saving
- Temperature compensation for stable readings
- RS232 communication interface for data transfer
- Durable ABS housing with stainless steel connector
Technical Specifications
- Pressure Range: (-1~0) bar, (0~2500) bar
- Accuracy: ±0.025% FS, ±0.05% FS, ±0.1% FS
- Operating Temperature: -10°C to 50°C
- Power Supply: 7.4V rechargeable lithium battery / adapter
- Display: 6-digit LCD with backlight
- Pressure Units: kPa, Pa, psi, bar, mbar, mmH₂O, mmHg, MPa
- Communication: RS232
- Protection: 120% full scale
- Weight: 0.75 kg
Applications
Ideal for high-pressure calibration, hydraulic systems, industrial testing, process control, and precision pressure monitoring in critical environments.
Description

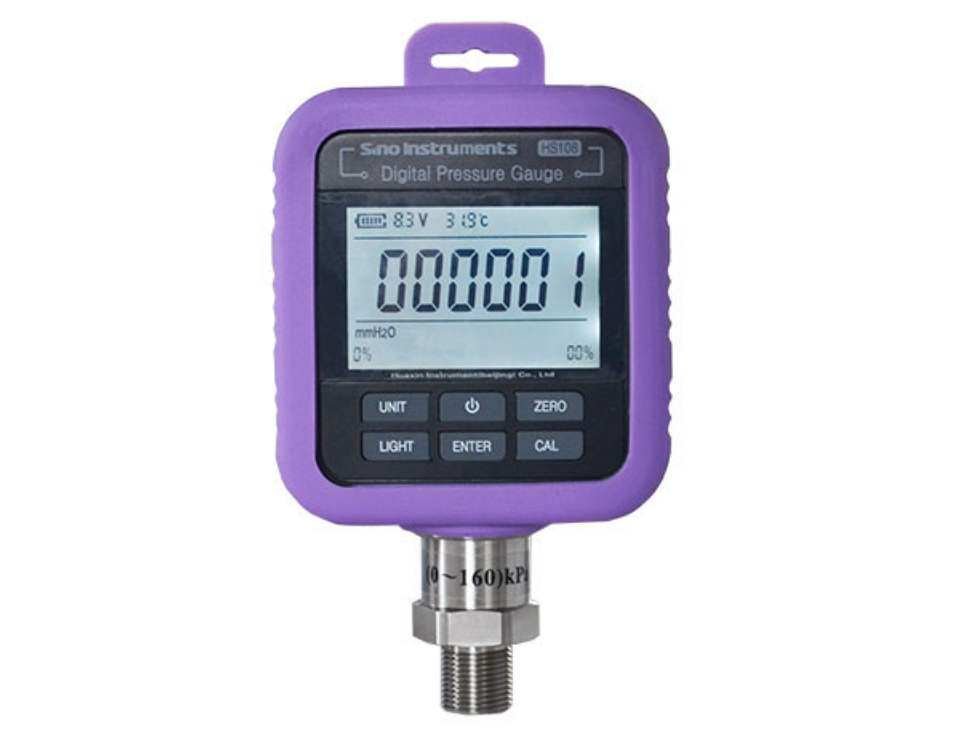

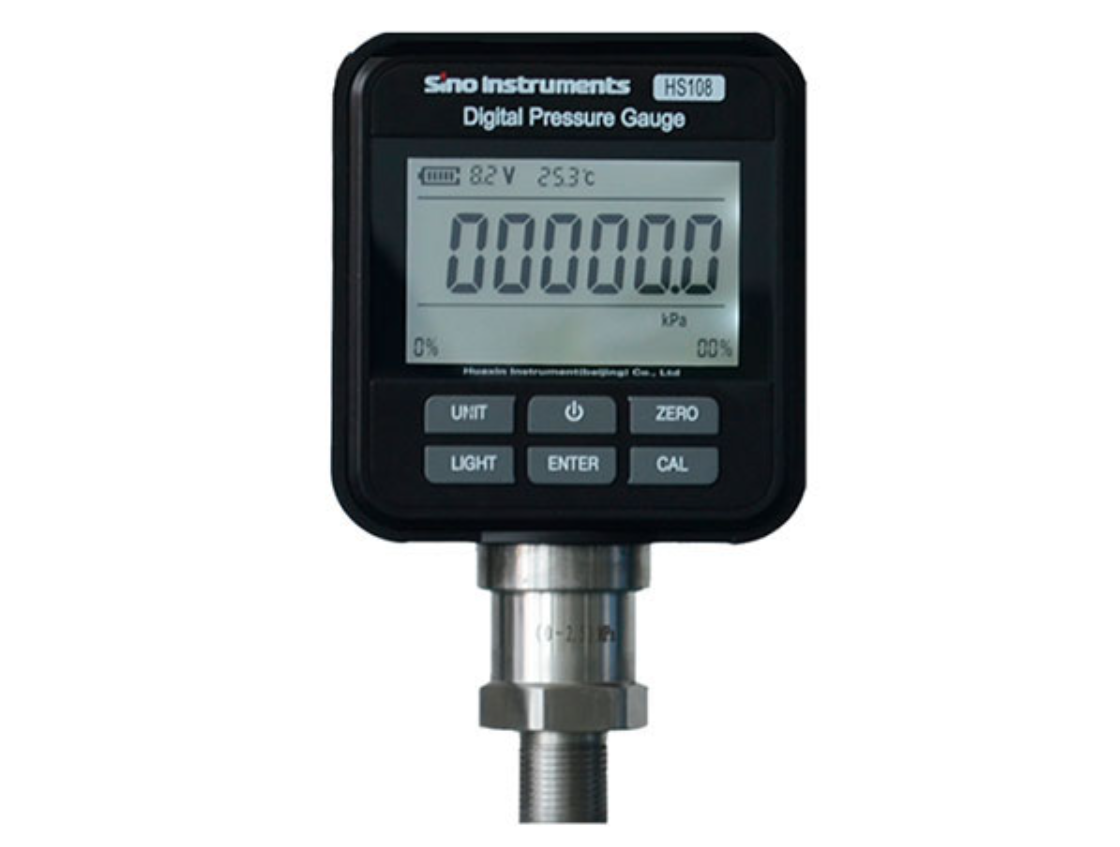

HS108 Digital Pressure Gauge – Ultra High Precision Industrial Pressure Meter
The HS108 Digital Pressure Gauge is a high-performance industrial pressure measuring instrument designed for ultra-precise and reliable readings in demanding environments. Equipped with a high-precision sensor chip and advanced digital processing technology, this pressure meter delivers accuracy up to ±0.025% FS.
With a wide measurement range from vacuum to 2500 bar (36,000 psi), the HS108 is ideal for high-pressure applications across industries such as oil & gas, hydraulic systems, manufacturing, and process automation. The 6-digit LCD display with adjustable backlight ensures clear visibility, while intelligent features like pressure monitoring, overpressure warning, and data storage enhance operational efficiency.
