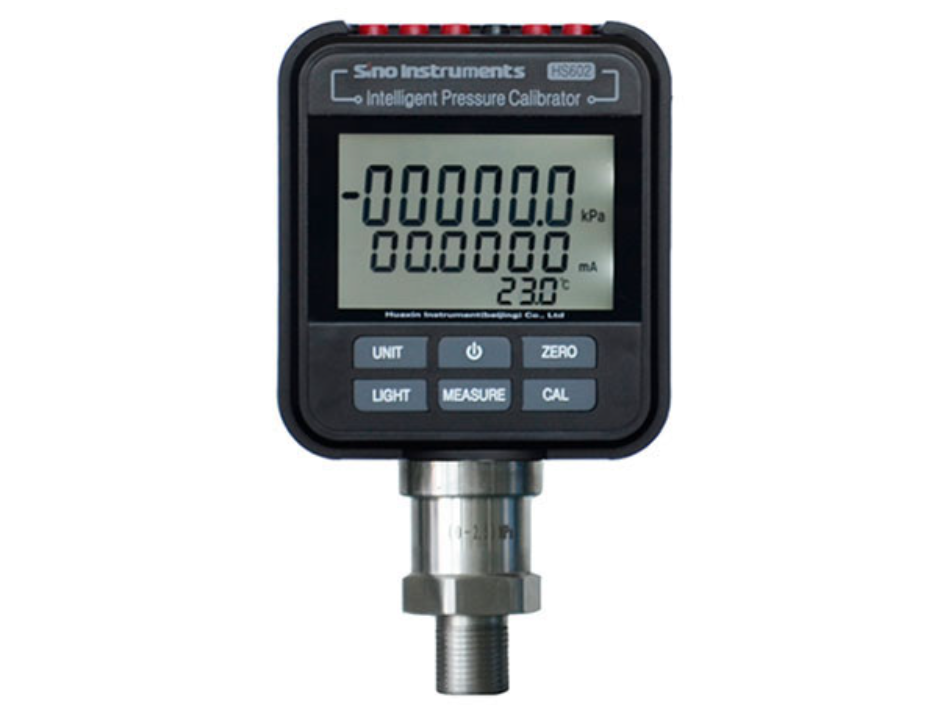

HS602 Intelligent Pressure Calibrator – High Accuracy Digital Pressure Calibration Device 2500 Bar

Key Features

• Ultra-high accuracy up to ±0.025% FS
• Wide pressure range from vacuum to 2500 bar
• Integrated pressure, current, and voltage measurement
• HART communication for advanced calibration tasks
• Pressure switch testing capability
• Zero and full-scale calibration function
• Overpressure warning with max/min monitoring
• Data storage for up to 30 calibration records
• RS232 communication for PC connectivity
• Compact, lightweight, and portable design
• Durable ABS housing with stainless steel connector

Electrical Measurement

• Current Measurement: 0–25 mA
• Voltage Measurement: 0–25 V
• DC Output: 24V (≤30mA)

Technical Specifications

• Accuracy: ±0.025% FS, ±0.05% FS
• Operating Temperature: -10°C to 50°C
• Display: 5–6 digit LCD with backlight
• Battery: 7.4V rechargeable lithium battery (80 hours backup)
• Pressure Units: kPa, Pa, psi, bar, mbar, mmH₂O, mmHg, MPa
• Communication: RS232
• Overpressure Protection: 120% full scale
• Connections: M20×1.5 male, 1/4” NPT
• Weight: 0.75 kg

Applications

Perfect for calibration of pressure transmitters, gauges, and sensors in industries such as oil & gas, power plants, manufacturing, calibration labs, and process automation systems.
