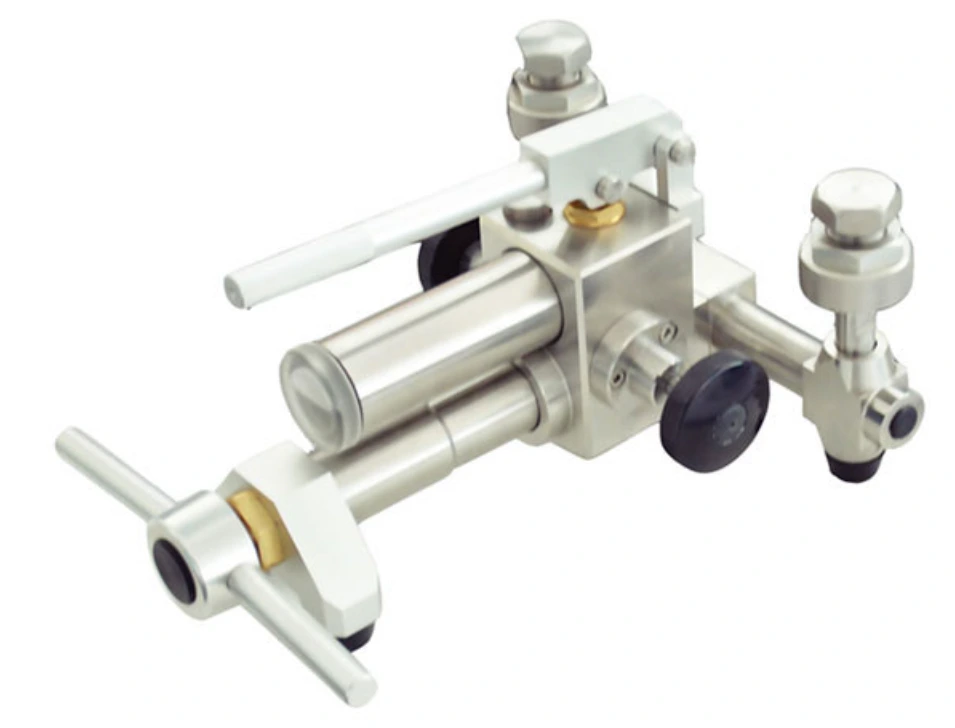

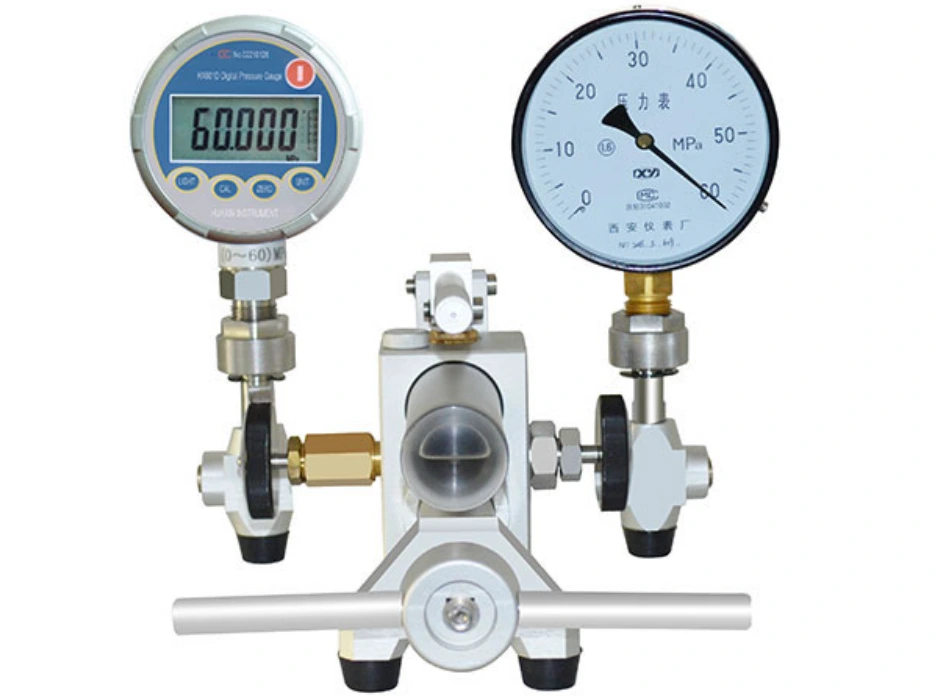

HS705 / HS705A Hydraulic Pressure Comparator Pump (Up to 700 Bar Calibration System)
Key Features
- High pressure generation up to 600 bar (HS705) / 700 bar (HS705A)
- Compact and portable design for field and lab use
- Fast pressure build-up for efficient calibration
- Precision fine adjustment valve for accurate control
- Durable stainless steel and aluminum construction
- Leak-proof sealing with Buna-N O-rings
- Quick connection ports (M20×1.5) for easy setup
Technical Specifications
- Model: HS705 / HS705A
- Pressure Range: 0–600 bar (HS705), 0–700 bar (HS705A)
- Working Medium:
- HS705: Transformer oil
- HS705A: Distilled / purified water
- Minimum Adjustment: 1 mbar
- Pressure Connection: M20×1.5 Female
- Dimensions: 210 × 210 × 140 mm
- Weight: 2.6 kg
- Material: Stainless steel & anti-rust aluminum
Applications
- Calibration of pressure gauges and transmitters
- Testing of pressure switches and instruments
- Used in oil & gas, power plants, chemical industries, metallurgy
- Suitable for laboratory and on-site calibration tasks
Key Functional Components
- Hand Pump: Generates initial pressure efficiently
- Lead Screw Pump: Enables rapid pressure increase/decrease
- Fine Adjustment Valve: Precise pressure tuning
- Pressure Ports: Dual ports for reference and test gauges
- Relief Valve: Safe pressure release
- Oil & Water Cup: Supports different working media
- Air Vent Nut: Prevents air lock during operation

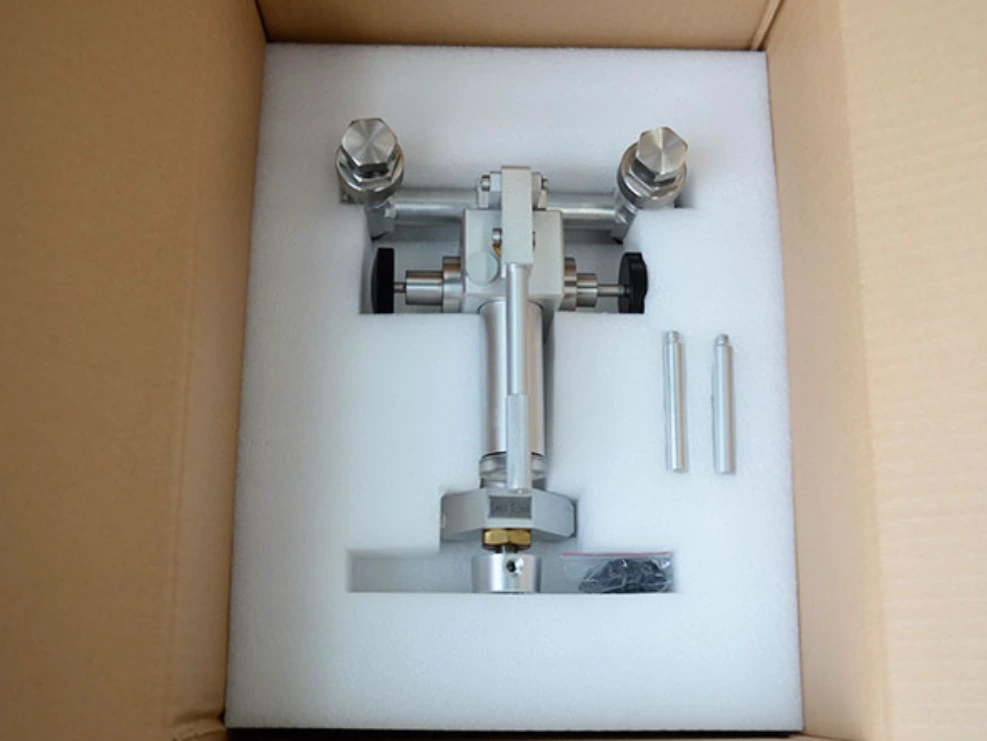

Package Includes
- 1 × HS705 / HS705A Hydraulic Comparator
- 10 × O-Rings
- Test Report
- User Manual
- Aurilave
Why Choose HS705 Series?
The HS705 series stands out as a high-pressure, reliable, and portable calibration solution. With its fast pressure generation and precision control, it is an ideal choice for professionals requiring accurate hydraulic pressure calibration up to 700 bar.
Description
HS705 & HS705A Hydraulic Pressure Comparator – High Pressure Calibration Solution
The HS705 / HS705A Hydraulic Pressure Comparator Pump is a high-performance calibration device designed for accurate pressure testing, adjustment, and calibration of industrial pressure instruments. Engineered for both laboratory and on-site applications, this comparator delivers stable and high-pressure generation up to 700 bar.
With its compact, lightweight design and robust construction, the HS705 series ensures reliable performance, excellent sealing, and ease of operation, making it ideal for professionals working in demanding environments.
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Shipping & Delivery
Related products

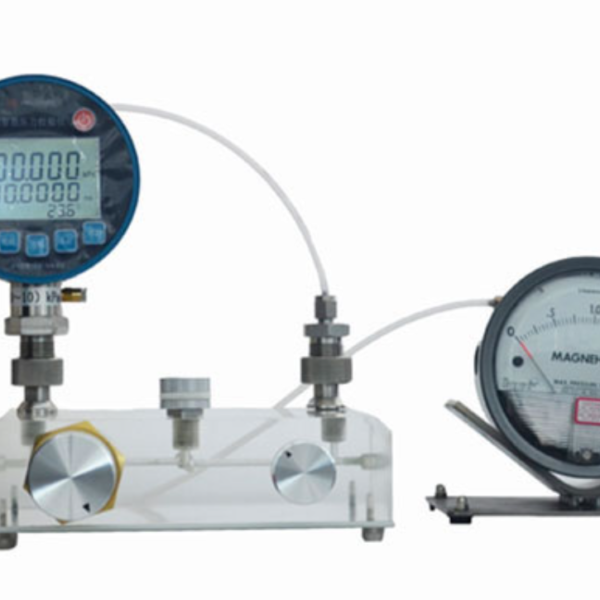

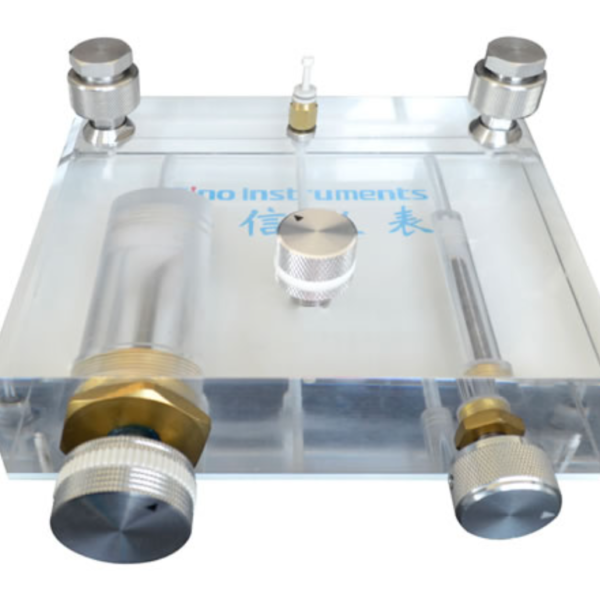

HS700 Pneumatic Pressure Comparator – High Precision Air Pressure Calibration Pump
Key Features
- High precision pneumatic pressure generation
- Dual pressure ports for reference and test instruments
- Fine pressure adjustment for accurate calibration
- Leak-proof design for stable performance
- Compact and portable structure
- Easy operation with manual pressure control
- Durable construction for industrial use
Technical Highlights
- Pressure Medium: Air
- Pressure Ports: Dual output ports
- Application: Pressure gauge and transmitter calibration
- Design: Portable and rugged body
- Operation: Manual pressure generation and control
Applications
Ideal for calibration of pressure gauges, pressure transmitters, sensors, and industrial measurement devices in laboratories, oil & gas industries, manufacturing plants, and process control systems.

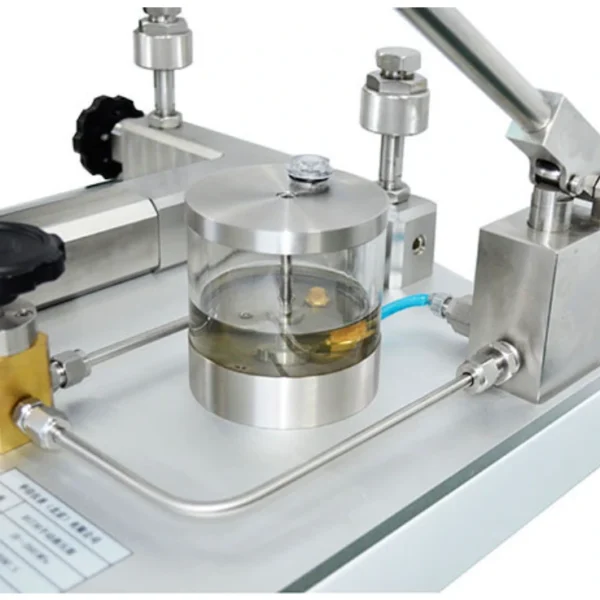

HS706 Ultra High Pressure Hydraulic Comparator Pump (Up to 2500 Bar Calibration System)
Key Features
- Ultra-high pressure generation up to 1600 / 2500 bar
- Compact and portable design for field and lab calibration
- High safety factor for secure operation
- Precision fine adjustment for accurate pressure control
- Transparent oil cup for easy monitoring and maintenance
- Leak-proof design with excellent sealing performance
- Durable stainless steel and aluminum body
Technical Specifications
- Pressure Range: 0–1600 bar / 0–2500 bar
- Minimum Adjustable Pressure: 10 mbar
- Working Medium: Transformer Oil (25#)
- Material: Stainless steel & anti-rust aluminum
- Design: Portable hydraulic comparator system
Applications
- Calibration of high-pressure gauges
- Testing of pressure transmitters and sensors
- Industrial use in oil & gas, power plants, heavy industries
- Suitable for laboratory and on-site calibration
Key Functional Components
- Hand Pump: Generates initial pressure quickly
- Lead Screw Pump: Enables fine and rapid pressure adjustment
- Fine Adjustment Valve: Ensures precise calibration control
- Pressure Ports: Dual ports for testing and reference gauges
- Relief Valve: Safe pressure release mechanism
- Transparent Oil Cup: Easy monitoring of working medium
Package Includes
- 1 × HS706 Hydraulic Comparator
- O-Rings Set
- Test Report
- User Manual
Why Choose HS706 Comparator?
The HS706 is engineered for extreme pressure calibration requirements, offering accuracy, durability, and safety. Its ultra-high pressure capability makes it the perfect solution for professionals handling critical calibration tasks in high-pressure systems.

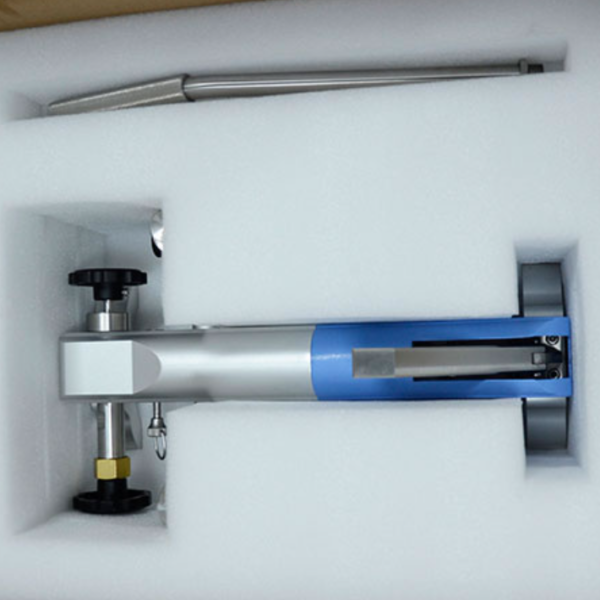

HS720 High-Precision Pneumatic Pressure Comparator Pump (Vacuum to 140 Bar Calibration System)
Key Features
- Precision shut-off valve for stable pressure calibration
- Built-in air-oil separator for clean and maintenance-free operation
- High-efficiency hand pump for fast pressure generation
- Military-grade sealing technology for leak-proof performance
- Fine adjustment valve for precise pressure control
- Portable and rugged design for field and lab use
- Wide pressure range: Vacuum to 140 bar
Technical Specifications
- Pressure Range: -0.95 to 140 bar
- Minimum Adjustment: 0.1 mbar
- Working Medium: Air
- Pressure Connection: M20×1.5 Female
- Dimensions: 380 × 198 × 140 mm
- Weight: 6.5 kg
- Material: Stainless steel & anti-rust aluminum
- Sealing: Buna-N O-rings
Applications
- Calibration of pressure gauges
- Testing of pressure transmitters
- Adjustment of pressure switches
- Industrial use in power plants, oil & gas, chemical, and metallurgy sectors
Package Includes
- 1 × HS720 Pneumatic Comparator
- 10 × O-Rings
- Test Report
- User Manual
Key Functional Components
- Hand Pump: Generates pre-pressure efficiently
- Reverse Valve: Switch between pressure & vacuum
- Dual Pressure Ports: For reference & test instruments
- Fine Adjustment Valve: Precision pressure tuning
- Relief Valve: Safe pressure release
- Shut-off Valve: Stabilizes pressure during calibration
Why Choose HS720 Comparator?
The HS720 stands out as a reliable pressure calibration solution for professionals who require accuracy, durability, and ease of operation. Its portable design and advanced engineering make it a preferred choice for industrial calibration tasks.

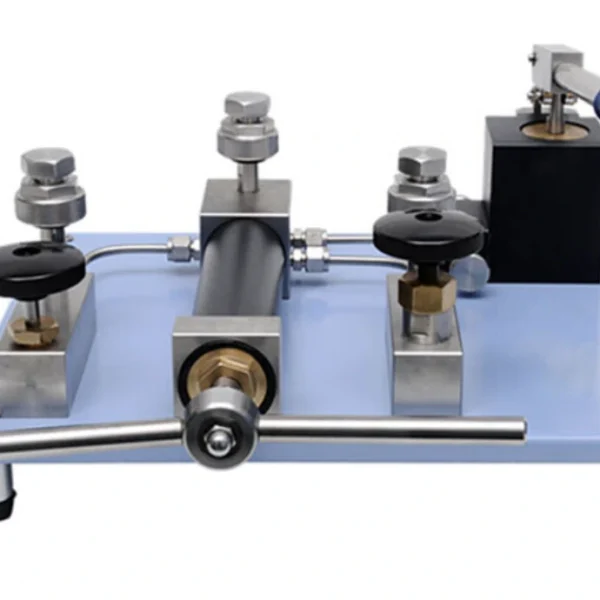

HS721 Bench-Mount Pneumatic Pressure Comparator (Vacuum to 60 Bar Calibration System)
Key Features
- Bench-mounted design for stable laboratory calibration
- High precision pressure adjustment with 0.1 mbar accuracy
- Wide pressure range: -0.95 to 60 bar
- Durable construction with stainless steel and aluminum body
- Advanced sealing technology for leak-proof performance
- Supports simultaneous calibration of multiple gauges
- Easy operation with hand pump and fine adjustment system
Technical Specifications
- Pressure Range: -0.95 to 60 bar
- Adjustment Accuracy: 0.1 mbar (10 Pa)
- Working Medium: Air
- Pressure Connection: M20×1.5 Female
- Dimensions: 380 × 380 × 200 mm
- Weight: 14.8 kg
- Material: Stainless steel & aluminum
- Sealing: Buna-N O-rings
Applications
- Calibration of pressure transmitters
- Testing of precision pressure gauges
- Adjustment of pressure switches
- Used in laboratories, power plants, oil & gas, and industrial sectors
Key Functional Components
- Hand Pump: Generates initial pressure efficiently
- Reverse Valve: Switch between pressure and vacuum
- Multiple Pressure Ports: Enables simultaneous testing of gauges
- Fine Adjustment Valve: Provides precise pressure control
- Lead Screw Pump: Allows rapid pressure adjustment
- Relief Valve: Ensures safe pressure release
Package Includes
- 1 × HS721 Pneumatic Comparator
- 10 × O-Rings
- Test Report
- User Manual
Why Choose HS721 Comparator?
The HS721 offers superior accuracy, durability, and stability, making it an excellent choice for professionals who require reliable pressure calibration in lab environments. Its bench-mounted design and multi-port capability improve efficiency and precision during calibration tasks.

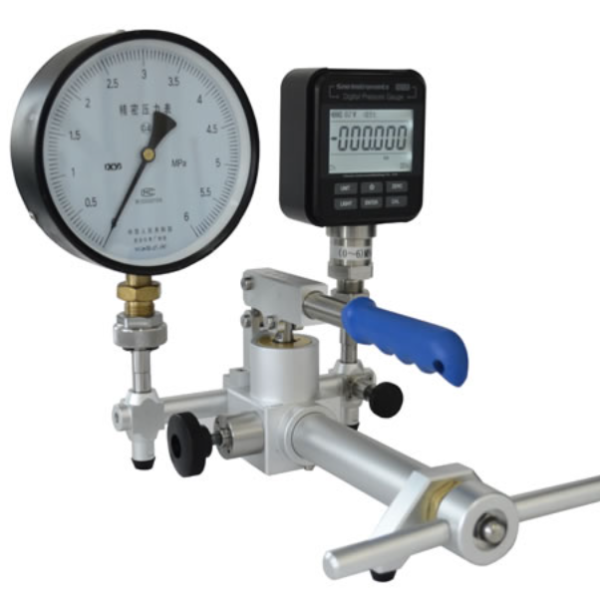

Portable Pneumatic Pressure Comparator HS702 HS703 Vacuum to 60 Bar Calibration Pump
