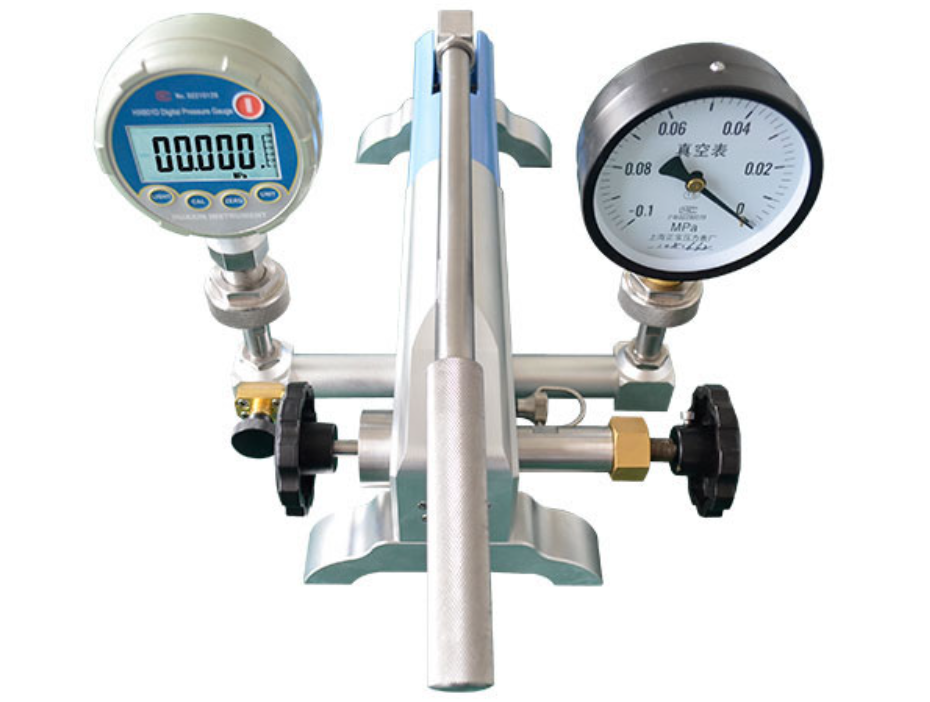

HS720 High-Precision Pneumatic Pressure Comparator Pump (Vacuum to 140 Bar Calibration System)
Key Features
- Precision shut-off valve for stable pressure calibration
- Built-in air-oil separator for clean and maintenance-free operation
- High-efficiency hand pump for fast pressure generation
- Military-grade sealing technology for leak-proof performance
- Fine adjustment valve for precise pressure control
- Portable and rugged design for field and lab use
- Wide pressure range: Vacuum to 140 bar
Technical Specifications
- Pressure Range: -0.95 to 140 bar
- Minimum Adjustment: 0.1 mbar
- Working Medium: Air
- Pressure Connection: M20×1.5 Female
- Dimensions: 380 × 198 × 140 mm
- Weight: 6.5 kg
- Material: Stainless steel & anti-rust aluminum
- Sealing: Buna-N O-rings
Applications
- Calibration of pressure gauges
- Testing of pressure transmitters
- Adjustment of pressure switches
- Industrial use in power plants, oil & gas, chemical, and metallurgy sectors

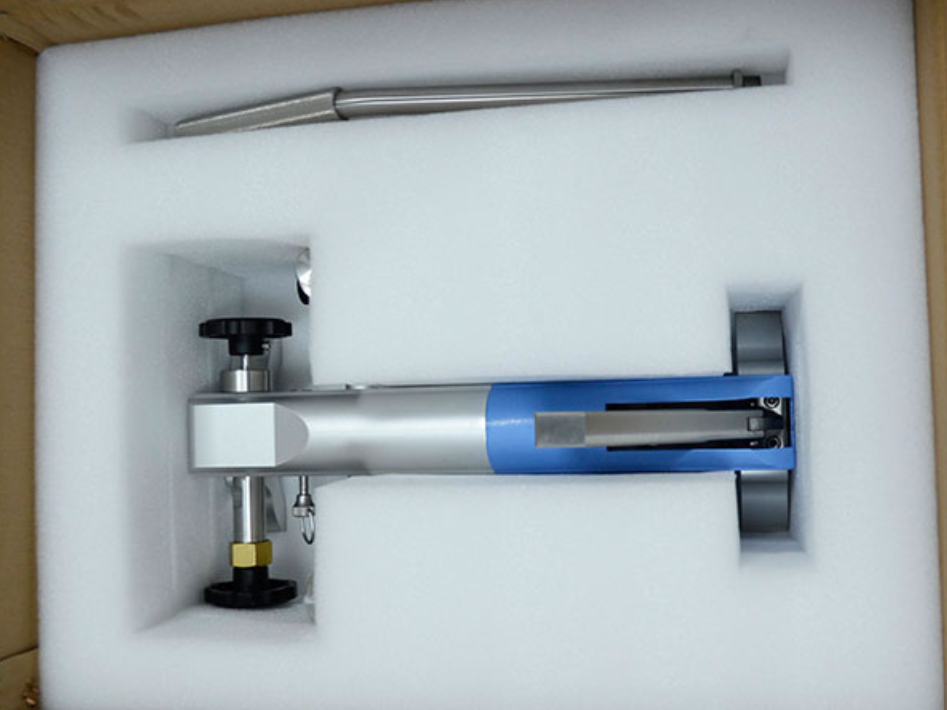

Package Includes
- 1 × HS720 Pneumatic Comparator
- 10 × O-Rings
- Test Report
- User Manual
Key Functional Components
- Hand Pump: Generates pre-pressure efficiently
- Reverse Valve: Switch between pressure & vacuum
- Dual Pressure Ports: For reference & test instruments
- Fine Adjustment Valve: Precision pressure tuning
- Relief Valve: Safe pressure release
- Shut-off Valve: Stabilizes pressure during calibration
Why Choose HS720 Comparator?
The HS720 stands out as a reliable pressure calibration solution for professionals who require accuracy, durability, and ease of operation. Its portable design and advanced engineering make it a preferred choice for industrial calibration tasks.
Description
HS720 Pneumatic Pressure Comparator – High Accuracy Calibration Tool
The HS720 Pneumatic Pressure Comparator Pump is a professional-grade pressure calibration device designed for high-precision testing and calibration of pressure instruments. Built for both laboratory and field applications, this comparator delivers stable, reliable, and accurate pressure generation from vacuum up to 140 bar.
Engineered with advanced sealing technology and a precision shut-off system, the HS720 ensures consistent pressure stability, making it ideal for calibrating pressure gauges, transmitters, and switches.
