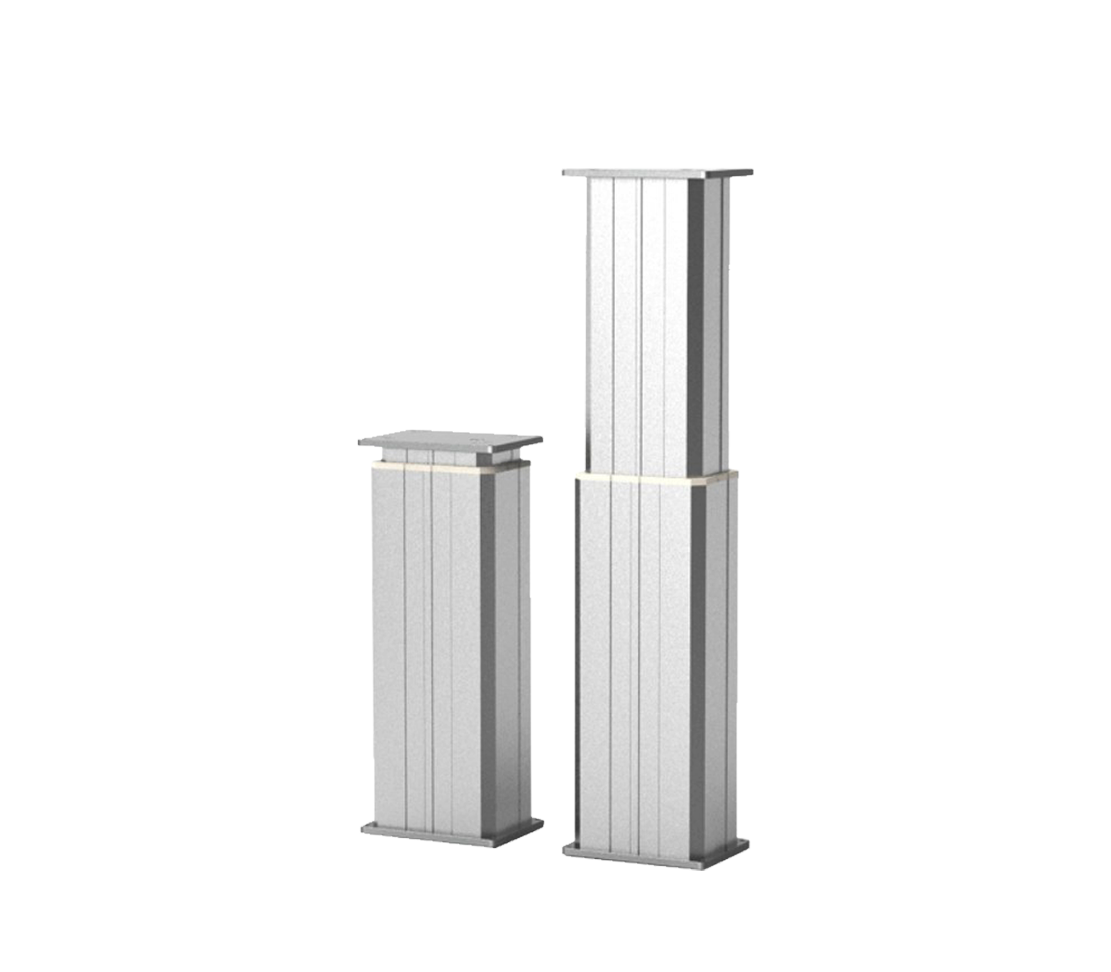

HTA2 Lifting column
Product Features
- Motor type: permanent magnet DC motor
- Voltage: 12V DC, 24V DC, 36V DC, 48V DC
- Maximum self-locking force: 6,000N/Limited to thrust
- Maximum load: 6,000N/Limited to thrust
- Maximum tension: 2,000N/Maximum tension
- Stroke: 100~900mm
- Minimum size: stroke + 180 mm (limited to 300 mm stroke or less)
- Minimum size: stroke + 200 mm (over 300 mm stroke or more)
- Maximum outer tube size: two sections, 193*141mm, rectangular
- Color: silver gray or customized
- IP rating: IP54
- Operating temperature range: -45°C~+75°C
- Full performance operating temperature range: +5°C~+45°C
- Higher duty cycle (25%)
- Other options: Hall sensor (single or double), motor wire outlet mode is upper or lower side outlet, can synchronize the lifting operation of the system
- High-strength metal zinc alloy housing protects motors and gears
- Limit switch (built-in: not adjustable)
Description
Product Features
- Motor type: permanent magnet DC motor
- Voltage: 12V DC, 24V DC, 36V DC, 48V DC
- Maximum self-locking force: 6,000N/Limited to thrust
- Maximum load: 6,000N/Limited to thrust
- Maximum tension: 2,000N/Maximum tension
- Stroke: 100~900mm
- Minimum size: stroke + 180 mm (limited to 300 mm stroke or less)
- Minimum size: stroke + 200 mm (over 300 mm stroke or more)
- Maximum outer tube size: two sections, 193*141mm, rectangular
- Color: silver gray or customized
- IP rating: IP54
- Operating temperature range: -45°C~+75°C
- Full performance operating temperature range: +5°C~+45°C
- Higher duty cycle (25%)
- Other options: Hall sensor (single or double), motor wire outlet mode is upper or lower side outlet, can synchronize the lifting operation of the system
- High-strength metal zinc alloy housing protects motors and gears
- Limit switch (built-in: not adjustable)
