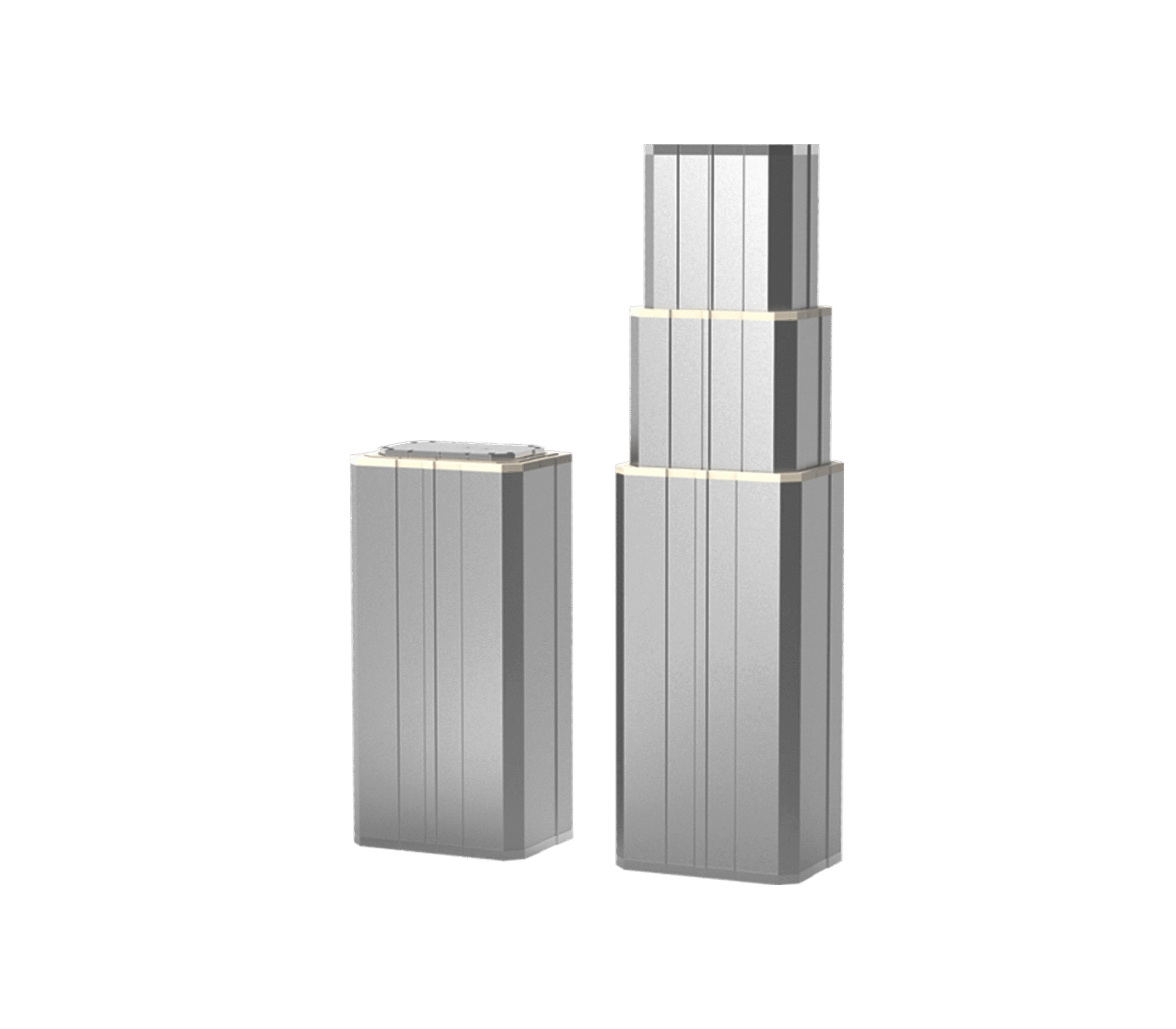

HTA3 Telescopic lifting column - Image 1
Click to enlarge
HTE2 Lifting column
HTE2 Lifting column
Back to products
HTA2 Lifting column
HTA2 Lifting column

HTA3 Telescopic lifting column

Product Features

  • Motor type: permanent magnet DC motor
  • Voltage: 12V DC, 24V DC, 36V DC, 90V DC
  • Maximum load: 6,000N/Limited to thrust
  • Stroke: 200~2000mm(or customized)
  • Minimum size: Stroke /2 + 200mm
  • Maximum outer tube size: three sections, 193*141mm, rectangular
  • Color: silver gray or customized
  • IP rating: IP54
  • Operating temperature range: -45°C~+75°C
  • Full performance operating temperature range: +5°C~+45°C
  • Higher duty cycle (25%)
  • Other options: Hall sensor (single or double), motor wire outlet mode is upper or lower side outlet, can synchronize the lifting operation of the system
  • High-strength metal zinc alloy housing protects motors and gears
  • Limit switch (built-in: not adjustable)
Get Quote
Categories: ,
Description

Product Features

  • Motor type: permanent magnet DC motor
  • Voltage: 12V DC, 24V DC, 36V DC, 90V DC
  • Maximum load: 6,000N/Limited to thrust
  • Stroke: 200~2000mm(or customized)
  • Minimum size: Stroke /2 + 200mm
  • Maximum outer tube size: three sections, 193*141mm, rectangular
  • Color: silver gray or customized
  • IP rating: IP54
  • Operating temperature range: -45°C~+75°C
  • Full performance operating temperature range: +5°C~+45°C
  • Higher duty cycle (25%)
  • Other options: Hall sensor (single or double), motor wire outlet mode is upper or lower side outlet, can synchronize the lifting operation of the system
  • High-strength metal zinc alloy housing protects motors and gears
  • Limit switch (built-in: not adjustable)
