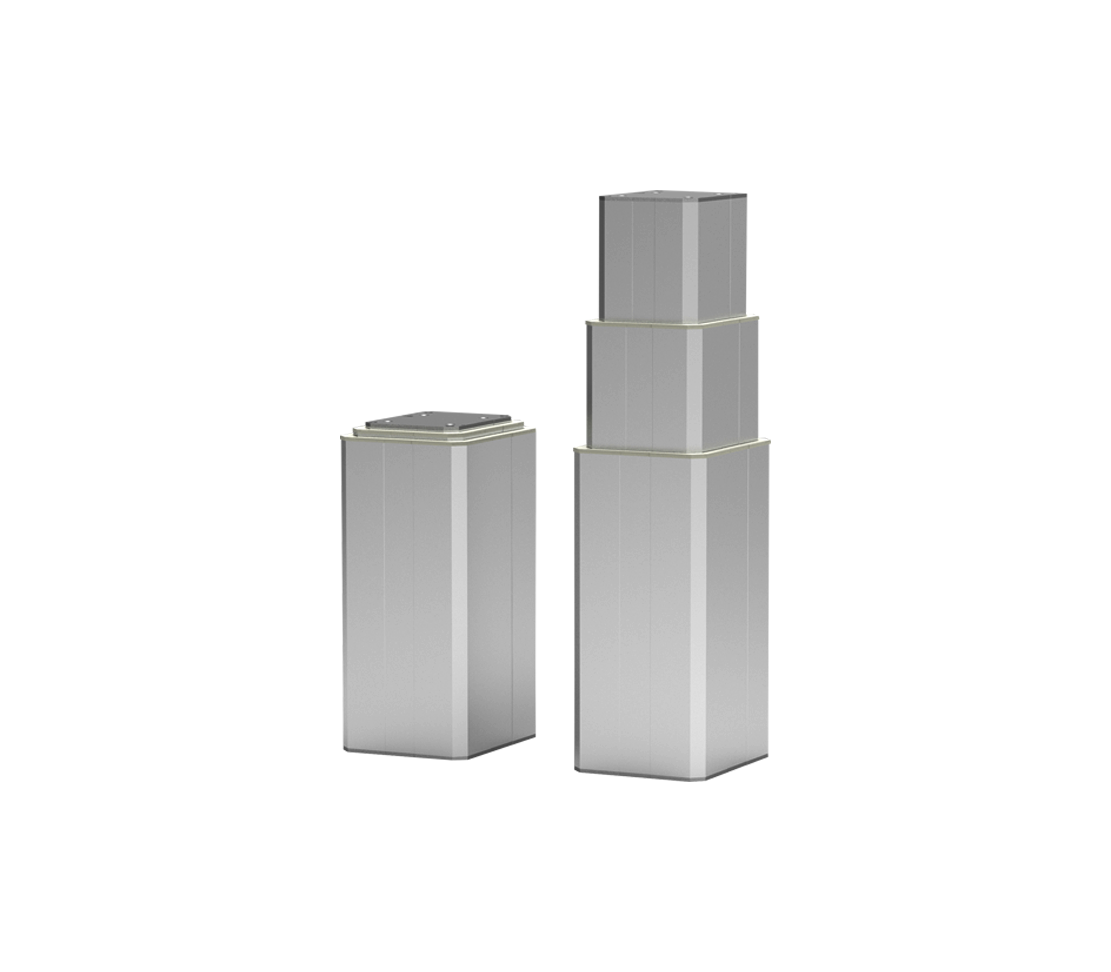

HTB3 Lifting column - Image 1
Click to enlarge
HTA1 Lifting column
HTA1 Lifting column
Back to products
HTX2 Series Lifting column
HTX2 Series Lifting column

HTB3 Lifting column

Product Features

  • Motor type: permanent magnet DC motor
  • Voltage: 12V DC, 24V DC, 36V DC, 48V DC
  • Maximum self-locking force: 6,000N/Limited to thrust
  • Maximum load: 4,000N/Limited to thrust
  • Maximum tension: 2,000N/Maximum tension
  • Maximum speed at full load: 35 mm / s (load 1,500N)
  • The slowest speed at full load: 17.5mm/s (load 4,000N)
  • Stroke: 200~1200mm
  • Minimum size: Stroke /2 + 200mm
  • Maximum outer tube size: three sections, 144*144mm, square
  • Color: silver gray or customized
  • IP rating: IP54
  • Operating temperature range: -45°C~+75°C
  • Full performance operating temperature range: +5°C~+45°C
  • Higher duty cycle (25%)
  • Other options: Hall sensor (single or double), motor wire outlet mode is upper or lower side outlet, can synchronize the lifting operation of the system
  • High-strength metal zinc alloy housing protects motors and gears
  • Limit switch (built-in: not adjustable)
Get Quote
Categories: ,
Description

Product Features

  • Motor type: permanent magnet DC motor
  • Voltage: 12V DC, 24V DC, 36V DC, 48V DC
  • Maximum self-locking force: 6,000N/Limited to thrust
  • Maximum load: 4,000N/Limited to thrust
  • Maximum tension: 2,000N/Maximum tension
  • Maximum speed at full load: 35 mm / s (load 1,500N)
  • The slowest speed at full load: 17.5mm/s (load 4,000N)
  • Stroke: 200~1200mm
  • Minimum size: Stroke /2 + 200mm
  • Maximum outer tube size: three sections, 144*144mm, square
  • Color: silver gray or customized
  • IP rating: IP54
  • Operating temperature range: -45°C~+75°C
  • Full performance operating temperature range: +5°C~+45°C
  • Higher duty cycle (25%)
  • Other options: Hall sensor (single or double), motor wire outlet mode is upper or lower side outlet, can synchronize the lifting operation of the system
  • High-strength metal zinc alloy housing protects motors and gears
  • Limit switch (built-in: not adjustable)
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “HTB3 Lifting column”

Your email address will not be published. Required fields are marked *

Shipping & Delivery
wood-portfolio-placeholder
wood-gallery-placeholder-4

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Related products

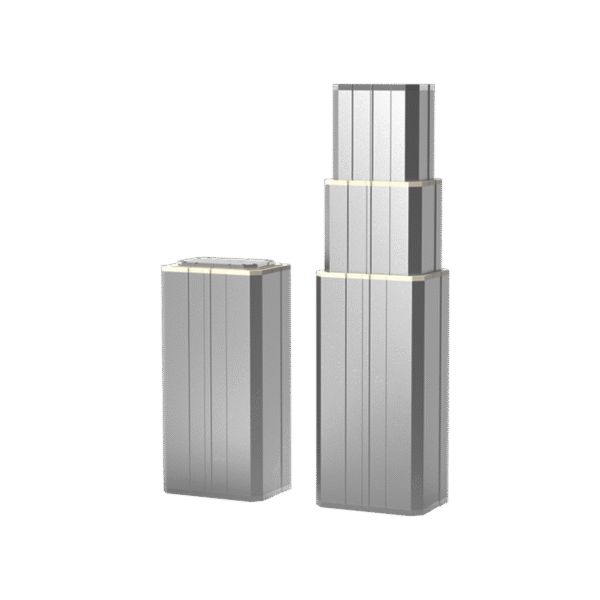

HTA3 Telescopic lifting column

Product Features
  • Motor type: permanent magnet DC motor
  • Voltage: 12V DC, 24V DC, 36V DC, 90V DC
  • Maximum load: 6,000N/Limited to thrust
  • Stroke: 200~2000mm(or customized)
  • Minimum size: Stroke /2 + 200mm
  • Maximum outer tube size: three sections, 193*141mm, rectangular
  • Color: silver gray or customized
  • IP rating: IP54
  • Operating temperature range: -45°C~+75°C
  • Full performance operating temperature range: +5°C~+45°C
  • Higher duty cycle (25%)
  • Other options: Hall sensor (single or double), motor wire outlet mode is upper or lower side outlet, can synchronize the lifting operation of the system
  • High-strength metal zinc alloy housing protects motors and gears
  • Limit switch (built-in: not adjustable)
Read more
Quick view

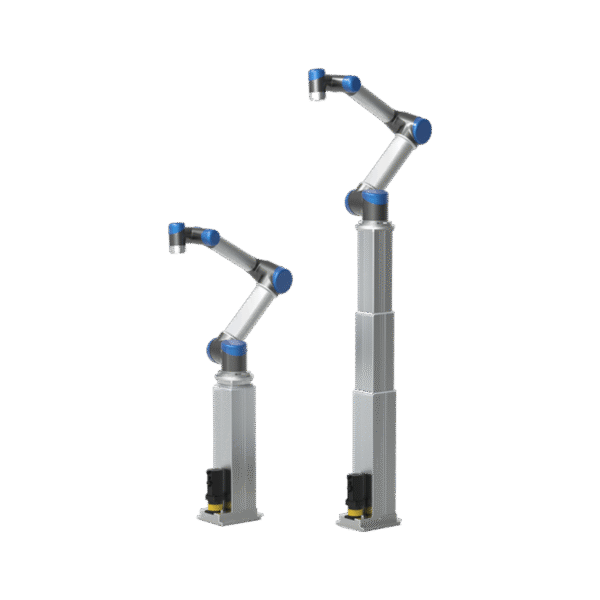

HTD3 Robotic arm lifting column

Product Features
  • Voltage: 48V DC, 220V AC
  • Motor Options: DC or AC servo motor
  • Maximum thrust: 4,000N
  • Speed under load: 100 mm/s (2,000N load)
  • Speed under load: 200 mm/s (1,000N load)
  • Minimum installation dimensions: Stroke/2 + 350mm
  • Dynamic lateral torque: 3,000Nm
  • Static lateral torque: 400Nm
  • Operating temperature range: -45°C to +75°C
  • Protection rating: IP54
  • Control options: Synchronous, standalone, integrated, CAN bus
Read more
Quick view

HTE2 Lifting column

Product Features
  • Motor type: permanent magnet DC motor
  • Voltage: 12V DC, 24V DC
  • Maximum self-locking force: 3,000N/Limited to thrust
  • Maximum load: 2,000N/Limited to thrust
  • Maximum tension: 2,000N/Maximum tension
  • Maximum speed at full load: 8.7 mm/s (load 1,000N)
  • The slowest speed at full load: 4.3mm/s (load 3,000N)
  • Stroke: 100~900mm
  • Minimum size: stroke + 180 mm (limited to 300 mm stroke or less)
  • Minimum size: stroke + 200 mm (>300 mm stroke)
  • Maximum outer tube size: two sections, 180*65mm, square
  • Color: silver gray or customized
  • IP rating: IP54
  • Operating temperature range: -45°C~+75°C
  • Full performance operating temperature range: +5°C~+45°C
  • Higher duty cycle (25%)
  • Other options: Hall sensor (single or double), motor wire outlet mode is upper or lower side outlet, can synchronize the lifting operation of the system
  • High-strength metal zinc alloy housing protects motors and gears
  • Limit switch (built-in: not adjustable)
Read more
Quick view

HTK1 Independent control box

Product Features
  • Compact, high-power controller
  • Number of controlled motors: 1
  • Color: Black
  • Casing material: Flame-retardant ABS
  • Current limiting, overload protection
  • Input voltage: 100-240VAC
  • Output voltage: 24VDC
  • Plug-in power cord (standard length: 3 meters) with optional power plugs for global compatibility
  • Integrated mounting holes for independent installation on the device
  • Ultra-low standby power consumption, meeting environmental standards
  • Duty cycle: Up to 10%
  • Duty cycle: 10%; 2 minutes of continuous use, 18 minutes of rest
  • Ambient operating temperature: +5°C to +40°C
  • IEC60601, RoHS certified
Read more
Quick view

HTK3 Independent control box

Product Features
  • Compact high-power controller
  • Number of controlled motors: 3
  • Color: Black
  • Casing material: Flame-retardant ABS
  • Current limiting, overload protection
  • Input voltage: 100-240VAC
  • Output voltage: 24VDC
  • Plug-in power cord (standard length: 3 meters) with a choice of power plugs for global use
  • Independent mounting holes allow for independent installation on the application device
  • Ultra-low standby power consumption, meeting environmental standards
  • Duty cycle: Up to 10%
Use
  • Duty cycle: 10%; 2 minutes of continuous use, 18 minutes of rest
  • Ambient operating temperature: +5°C to +40°C
  • IEC60601, RoHS certified
Read more
Quick view

HTL81 Lifting column

General Features
  • Maximum load: 800N in push
  • Maximum speed at full load: 38mm/s (with 800N in a push condition)
  • Minimum installation dimension: 650mm
  • Stroke: 500mm
  • Highest height: 1150mm
  • Dimension of outer tube (L*W): 80*60mm
  • Two stage outer tube with rectangular appearance
  • Color: Silver gray
  • Operational temperature range: -45°C~+75°C
  • Operational temperature range at full performance: +5°C~+45°C
  • Higher duty cycle (25%),
  • With narrow top and wide bottom configuration
Read more
Quick view

HTL86 Electric lifting column

Product Features
  • Motor type: permanent magnet DC motor
  • Maximum load: thrust 800N
  • Maximum speed at full load: 38mm/s (800N in the push state)
  • Minimum installation size: 560mm
  • Stroke: 600mm
  • Maximum height: 1210mm
  • Outer tube size (length * width): 70 * 70mm
  • Two-stage outer tube with rectangular shape
  • Color: silver gray
  • Operating temperature range: -45°C~+75°C
  • Full performance operating temperature range: +5°C~+45°C
  • Higher duty cycle (25%)
  • Narrow top and wide bottom configuration
Read more
Quick view

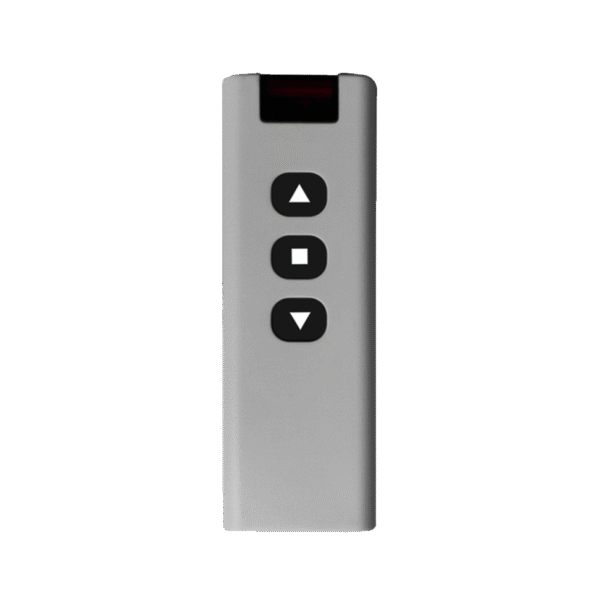

WTT-105 Controls
