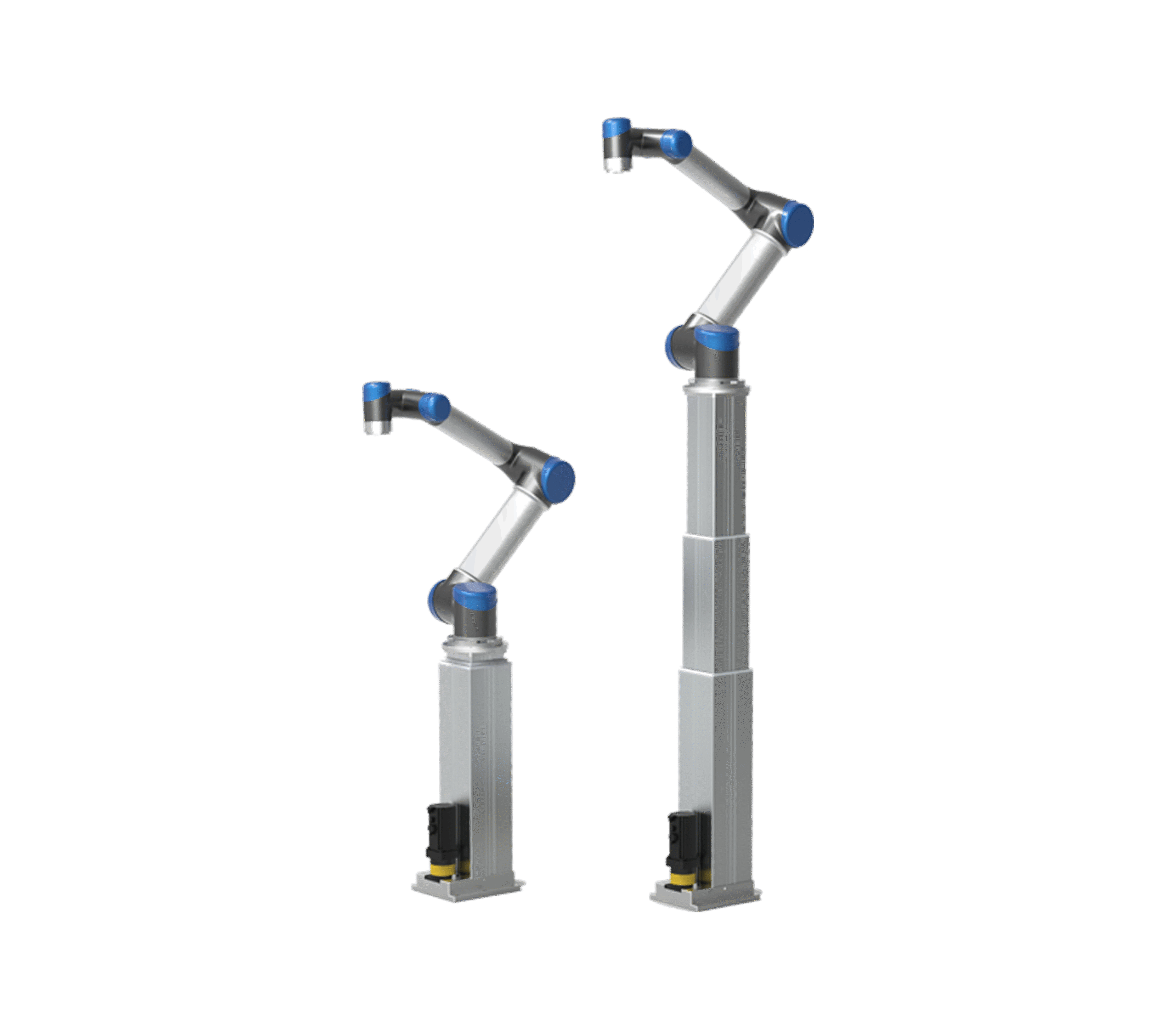

HTD3 Robotic arm lifting column - Image 1
Click to enlarge
NXN-400 Series
NXN-400 Series
Back to products
HTE2 Lifting column
HTE2 Lifting column

HTD3 Robotic arm lifting column

Product Features

  • Voltage: 48V DC, 220V AC
  • Motor Options: DC or AC servo motor
  • Maximum thrust: 4,000N
  • Speed under load: 100 mm/s (2,000N load)
  • Speed under load: 200 mm/s (1,000N load)
  • Minimum installation dimensions: Stroke/2 + 350mm
  • Dynamic lateral torque: 3,000Nm
  • Static lateral torque: 400Nm
  • Operating temperature range: -45°C to +75°C
  • Protection rating: IP54
  • Control options: Synchronous, standalone, integrated, CAN bus
Get Quote
Categories: ,
Description

Product Features

  • Voltage: 48V DC, 220V AC
  • Motor Options: DC or AC servo motor
  • Maximum thrust: 4,000N
  • Speed under load: 100 mm/s (2,000N load)
  • Speed under load: 200 mm/s (1,000N load)
  • Minimum installation dimensions: Stroke/2 + 350mm
  • Dynamic lateral torque: 3,000Nm
  • Static lateral torque: 400Nm
  • Operating temperature range: -45°C to +75°C
  • Protection rating: IP54
  • Control options: Synchronous, standalone, integrated, CAN bus
