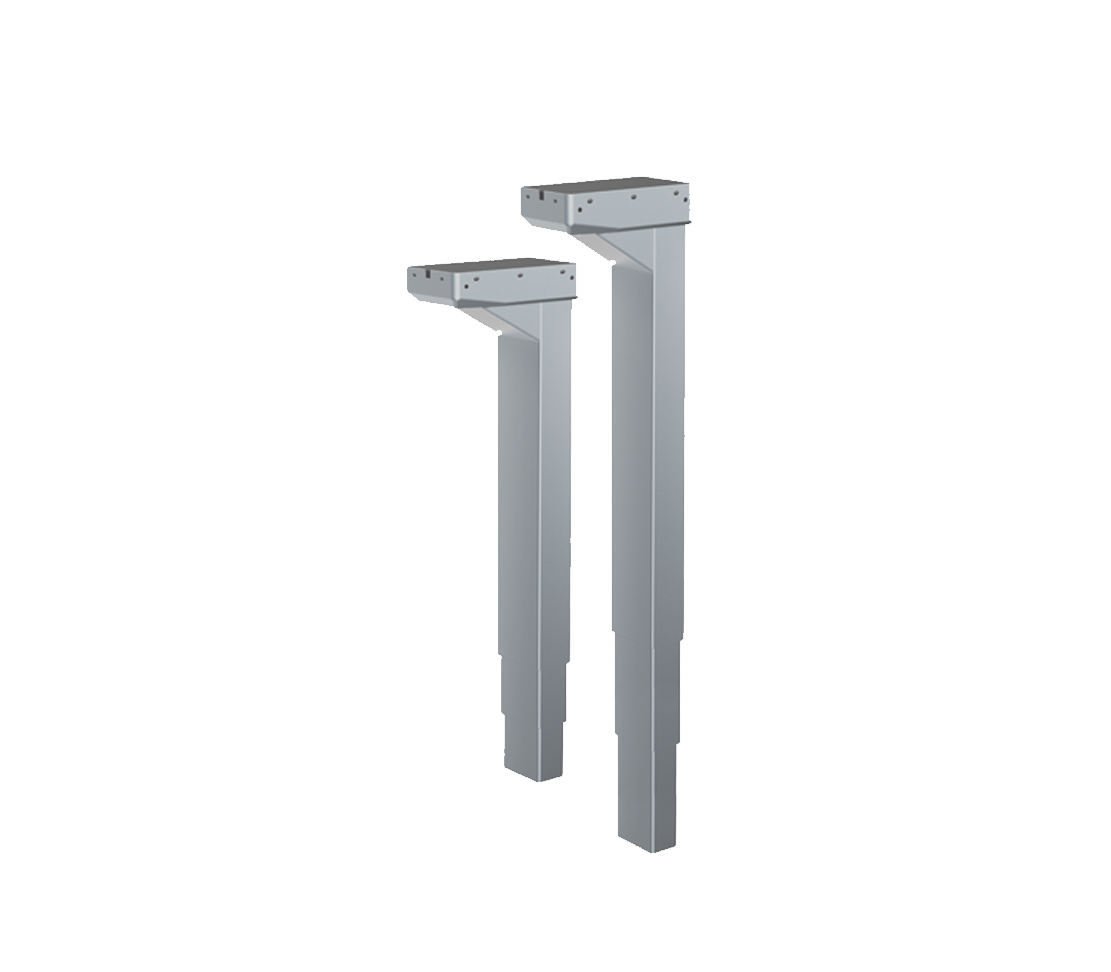

HTL84 Lifting column - Image 1
Click to enlarge
HTL83 Lifting column
HTL83 Lifting column
Back to products
HTL85 Electric lifting column
HTL85 Electric lifting column

HTL84 Lifting column

General Features

  • Maximum load: 800N in push
  • Maximum speed at full load: 38mm/s (with 800N in a push condition)
  • Minimum installation dimension: 560mm
  • Stroke: 650mm
  • Highest height: 1210mm
  • Dimension of outer tube (L*W): 80*50mm
  • Two stage outer tube with rectangular appearance
  • Color: Silver gray
  • Operational temperature range: -45°C~+75°C
  • Operational temperature range at full performance: +5°C~+45°C
  • Higher duty cycle (25%),
  • With narrow top and wide bottom configuration
Get Quote
Categories: ,
Description

General Features

  • Maximum load: 800N in push
  • Maximum speed at full load: 38mm/s (with 800N in a push condition)
  • Minimum installation dimension: 560mm
  • Stroke: 650mm
  • Highest height: 1210mm
  • Dimension of outer tube (L*W): 80*50mm
  • Two stage outer tube with rectangular appearance
  • Color: Silver gray
  • Operational temperature range: -45°C~+75°C
  • Operational temperature range at full performance: +5°C~+45°C
  • Higher duty cycle (25%),
  • With narrow top and wide bottom configuration
