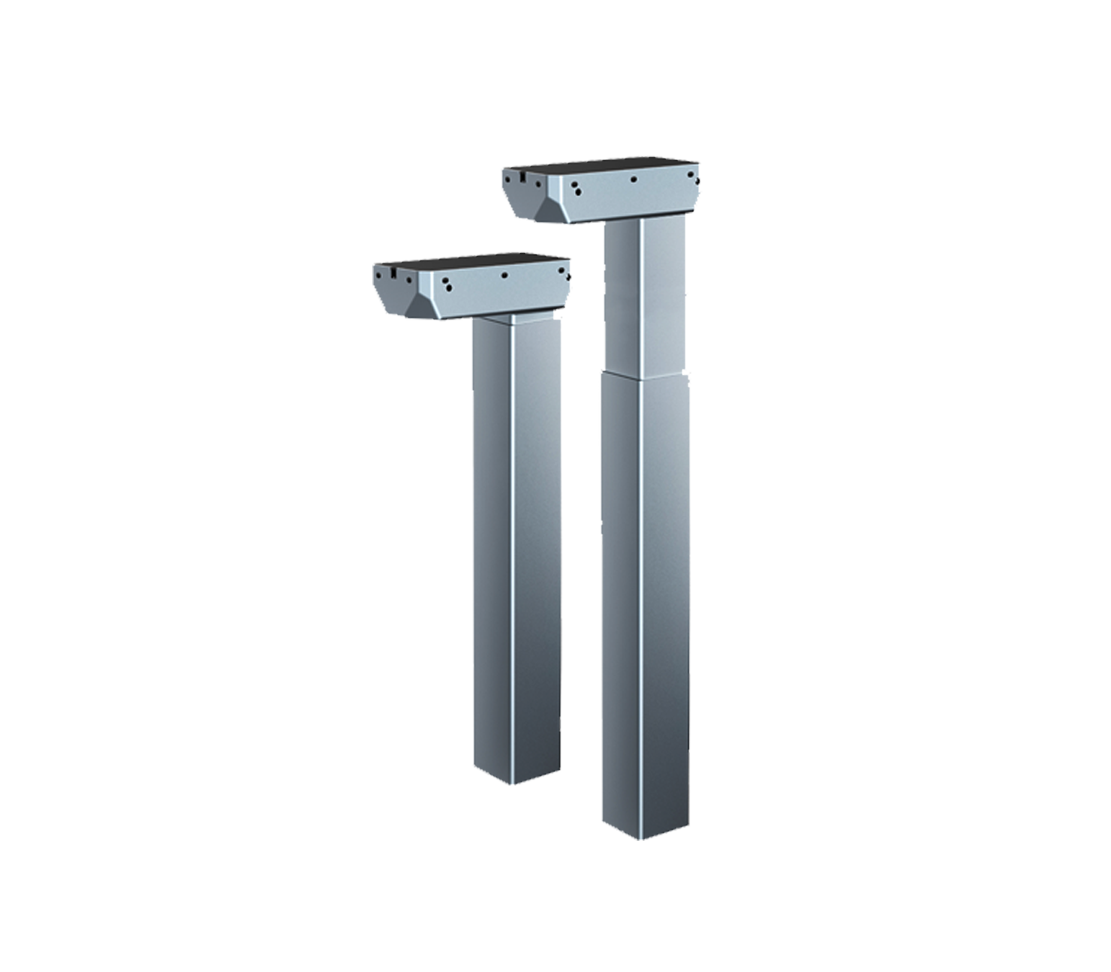

HTL85 Electric lifting column
Product Features
- Motor type: permanent magnet DC motor
- Maximum load: thrust 800N
- Maximum speed at full load: 38mm/s (800N in the push state)
- Minimum installation size: 650mm
- Stroke: 500mm
- Maximum height: 1150mm
- Outer tube size (length * width): 70 * 70mm
- Two-stage outer tube with rectangular shape
- Color: silver gray
- Operating temperature range: -45°C~+75°C
- Full performance operating temperature range: +5°C~+45°C
- Higher duty cycle (25%)
- Narrow top and wide bottom configuration
Description
Product Features
- Motor type: permanent magnet DC motor
- Maximum load: thrust 800N
- Maximum speed at full load: 38mm/s (800N in the push state)
- Minimum installation size: 650mm
- Stroke: 500mm
- Maximum height: 1150mm
- Outer tube size (length * width): 70 * 70mm
- Two-stage outer tube with rectangular shape
- Color: silver gray
- Operating temperature range: -45°C~+75°C
- Full performance operating temperature range: +5°C~+45°C
- Higher duty cycle (25%)
- Narrow top and wide bottom configuration
