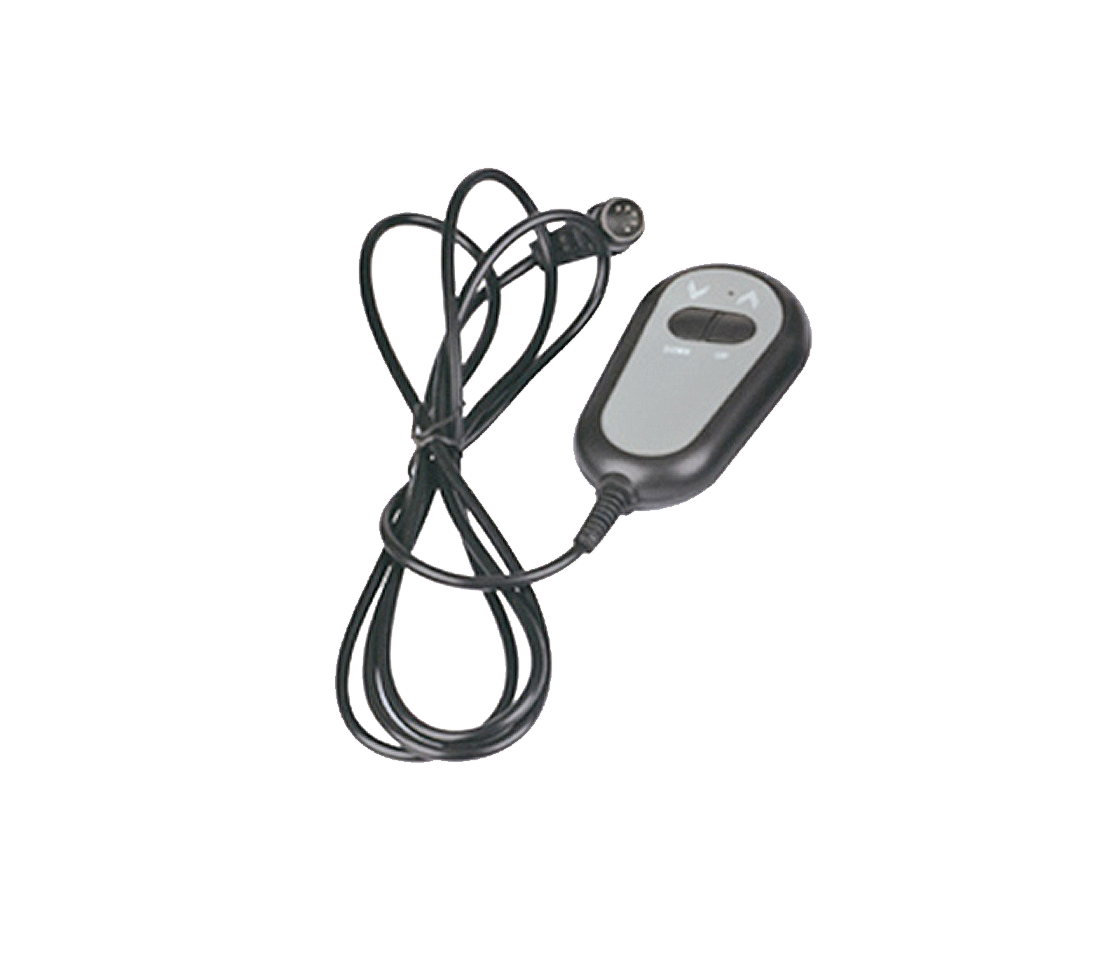

HTS1 Controls
General Features
- Technical Parameters
- Number of Actuator 1~6 Actuator
- Color black
- IP rating: IP54 or IP66
- Certificate: CE/RoHS
- LED indicator
- Matching with GeMinG control box HTT- series.
Description
General Features
- Technical Parameters
- Number of Actuator 1~6 Actuator
- Color black
- IP rating: IP54 or IP66
- Certificate: CE/RoHS
- LED indicator
- Matching with GeMinG control box HTT- series.
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
