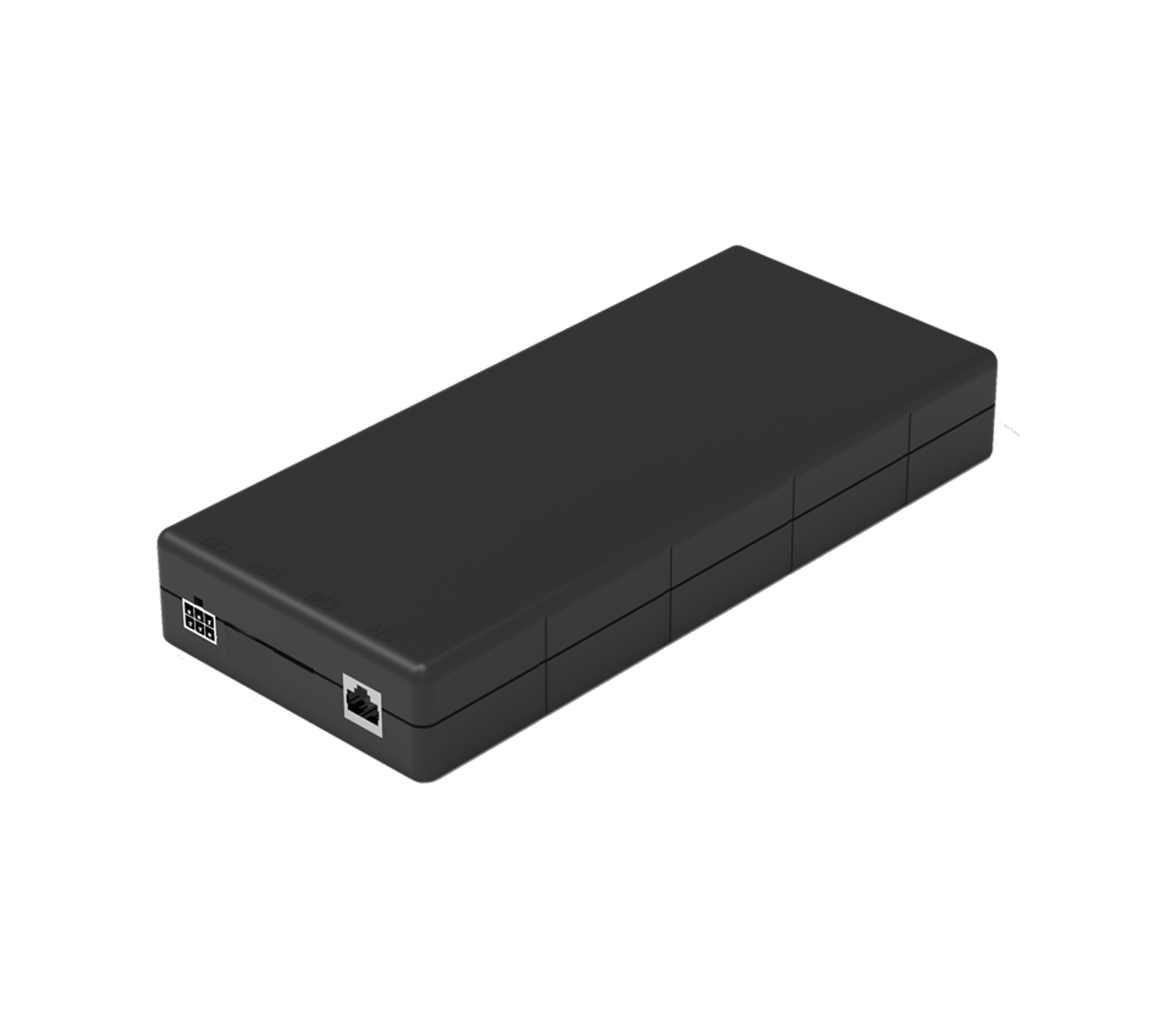

HTT1 Protocol Synchronous Control Box
Product Features
- Compact, high-power controller
- Control options: Joystick control, 485 communication control
- Number of controlled motors: 1
- Input voltage: 110-240V AC
- Output voltage: 24-29V DC
- Color: Black
- Casing material: Flame-retardant ABS
- Current limiting, overload protection
- Overheat protection
- Short-circuit protection
- Insulation function
- Soft start and stop functions
- Ultra-low standby power consumption, meeting environmental standards
- Pluggable power cord (standard length 3 meters) with optional power plugs for global compatibility
- Integrated mounting holes for independent installation
- Ultra-low standby power consumption, meeting environmental standards
- Duty cycle: up to 10%
Use
Duty cycle: 10%; 2 minutes of continuous use, 18 minutes of rest.
Operating temperature: +5°C to +40°C. IEC60601 and RoHS certified.
Description
Product Features
- Compact, high-power controller
- Control options: Joystick control, 485 communication control
- Number of controlled motors: 1
- Input voltage: 110-240V AC
- Output voltage: 24-29V DC
- Color: Black
- Casing material: Flame-retardant ABS
- Current limiting, overload protection
- Overheat protection
- Short-circuit protection
- Insulation function
- Soft start and stop functions
- Ultra-low standby power consumption, meeting environmental standards
- Pluggable power cord (standard length 3 meters) with optional power plugs for global compatibility
- Integrated mounting holes for independent installation
- Ultra-low standby power consumption, meeting environmental standards
- Duty cycle: up to 10%
Use
Duty cycle: 10%; 2 minutes of continuous use, 18 minutes of rest.
Operating temperature: +5°C to +40°C. IEC60601 and RoHS certified.
