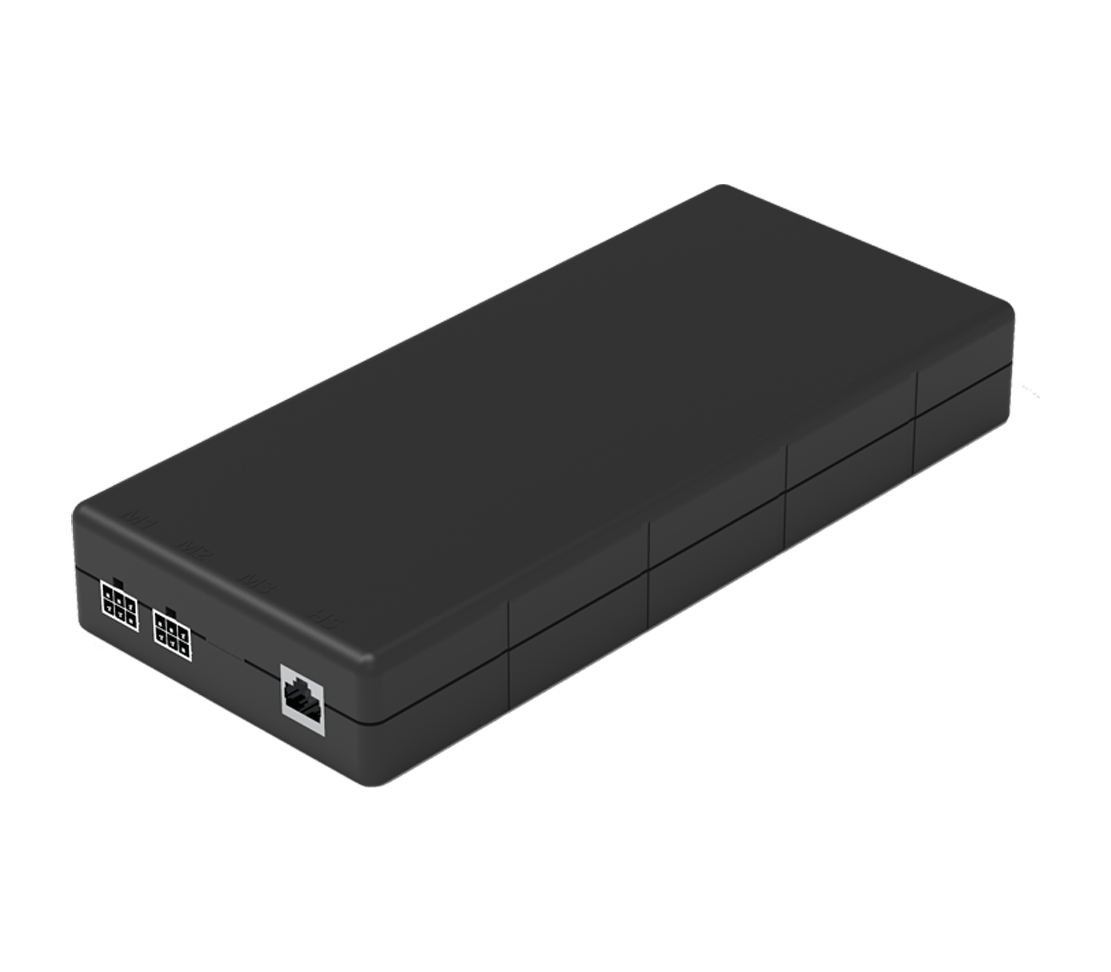

HTT2 Protocol Synchronous Control Box - Image 1
Click to enlarge
HTK3 Independent control box
HTK3 Independent control box
Back to products
HTT3 Protocol Synchronous Control box
HTT3 Protocol Synchronous Control box

HTT2 Protocol Synchronous Control Box

Product Features

  • Compact, high-power controller
  • Control options: Joystick control, 485 communication control
  • Number of controlled motors: 2
  • Input voltage: 110-240V AC
  • Output voltage: 24-29V DC
  • Color: Black
  • Casing material: Flame-retardant ABS
  • Current limiting, overload protection
  • Overheat protection
  • Short-circuit protection
  • Insulation function
  • Soft start and stop functions
  • Ultra-low standby power consumption, meeting environmental standards
  • Plug-in power cord (standard length 3 meters) with optional power plugs for global compatibility
  • Integrated mounting holes for independent installation
  • Ultra-low standby power consumption, meeting environmental standards
  • Duty cycle: Up to 10%

Use

  • Duty cycle: 10%; 2 minutes of continuous use, 18 minutes of rest
  • Operating temperature: +5°C to +40°C
  • IEC60601, RoHS certified
Get Quote
Categories: ,
Description

Product Features

  • Compact, high-power controller
  • Control options: Joystick control, 485 communication control
  • Number of controlled motors: 2
  • Input voltage: 110-240V AC
  • Output voltage: 24-29V DC
  • Color: Black
  • Casing material: Flame-retardant ABS
  • Current limiting, overload protection
  • Overheat protection
  • Short-circuit protection
  • Insulation function
  • Soft start and stop functions
  • Ultra-low standby power consumption, meeting environmental standards
  • Plug-in power cord (standard length 3 meters) with optional power plugs for global compatibility
  • Integrated mounting holes for independent installation
  • Ultra-low standby power consumption, meeting environmental standards
  • Duty cycle: Up to 10%

Use

  • Duty cycle: 10%; 2 minutes of continuous use, 18 minutes of rest
  • Operating temperature: +5°C to +40°C
  • IEC60601, RoHS certified
