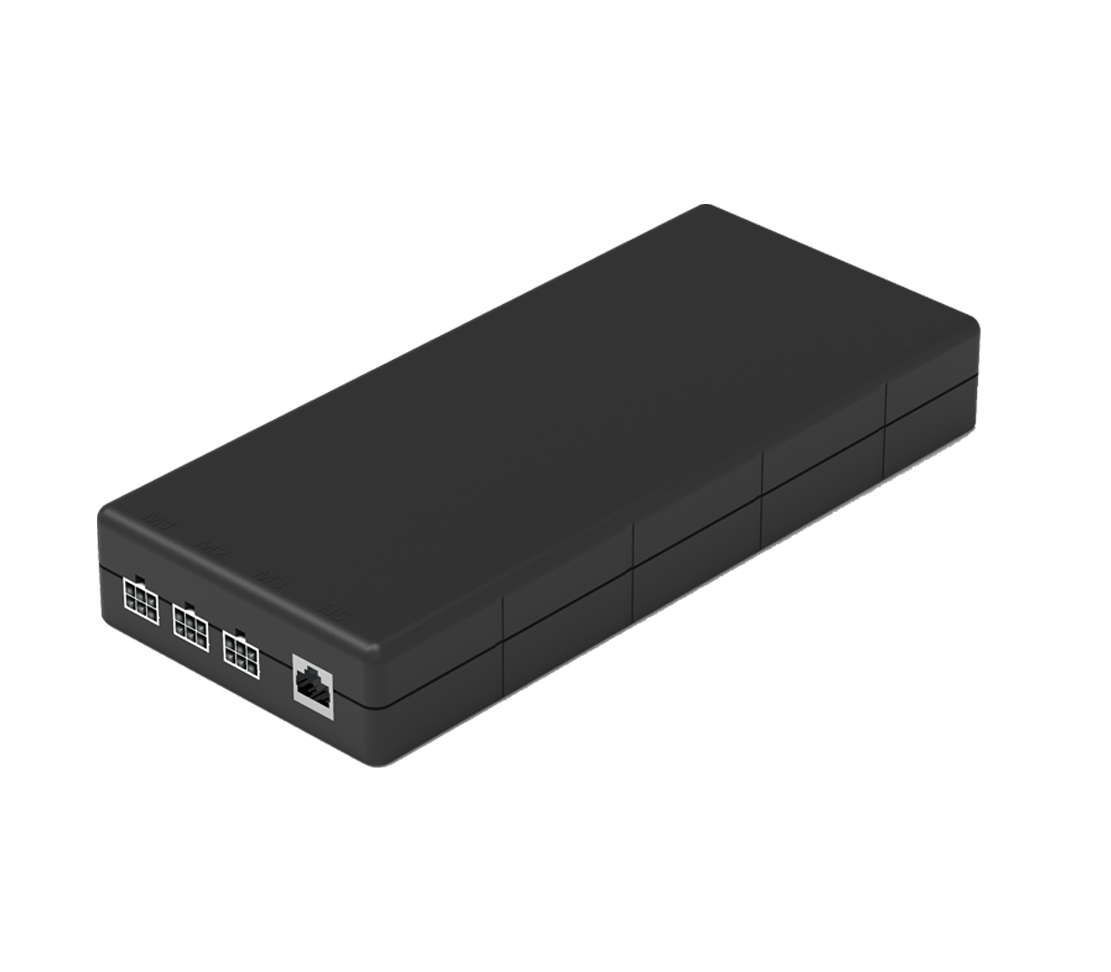

HTT3 Protocol Synchronous Control box
Product Features
- Compact, high-power controller
- Control options: Joystick control, 485 communication control
- Number of controlled motors: 3
- Input voltage: 110-240V AC
- Output voltage: 24-29V DC
- Color: Black
- Casing material: Flame-retardant ABS
- Current limiting, overload protection
- Overheat protection
- Short-circuit protection
- Insulation function
- Soft start and stop functions
- Ultra-low standby power consumption, meeting environmental standards
- Plug-in power cord (standard length 3 meters) with optional power plugs for global compatibility
- Integrated mounting holes for independent installation
- Ultra-low standby power consumption, meeting environmental standards
- Duty cycle: Up to 10%
Use
- Duty cycle: 10%; 2 minutes of continuous use, 18 minutes of rest
- Operating temperature: +5°C to +40°C
- IEC60601, RoHS certified
Description
HTT3 controller is a controller specially designed for three-motor lifting products. It can achieve height limit, system lock, and collision avoidance sensitivity through manual operation. It can be used with all GeMinG office series lifting columns. It ensures the synchronization and smooth running of the lifting system, and it can soft stop and soft stop. All controllers include a resistance-return function to protect objects from being damaged by crushing or impact during lifting.
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Shipping & Delivery
Related products
HTD5-27 Five-section lifting column
Product Features
- Motor options: AC motor, stepper motor, servo motor
- Voltage: 24~48V DC or 220V, 380V AC
- Maximum self-locking force: 1,000N/Limited to thrust
- Maximum load: 800N/Limited to thrust
- Maximum tension: 500N/Maximum tension
- The fastest speed at full load: 2.5 M / min (load 500N)
- The slowest speed at full load: 1.5 M/min (load 800N)
- Minimum retracted height: There are three types:
- Minimum retracted height: 1.52M, 1.77M, 2.25M
- Expanded maximum height: 5.0M, 6.0M, 8.0M
- Dynamic lateral torque: 150Nm
- Static lateral moment: 250Nm
- Color: customized
- Safety certification: comply with ISO9001-2008, working temperature range:
- Operating temperature range: +5 ° C ~ + 45 ° C
- Storage temperature range: -35 ° C ~ + 85 ° C
- Protection level: IP65
- Tube material: 6063 aluminum,
- Pipe size: maximum pipe 147*147/minimum pipe 64*64
- Work control options: electric control, manual control, synchronous control, independent control
HTK2 Ordinary independent control box
Product Features
- Compact, high-power controller
- Number of controlled motors: 2
- Color: Black
- Casing material: Flame-retardant ABS
- Current limiting, overload protection
- Input voltage: 100-240VAC
- Output voltage: 24VDC
- Plug-in power cord (standard length: 3 meters) with optional power plugs for global compatibility
- Integrated mounting holes for independent installation on the device
- Ultra-low standby power consumption, meeting environmental standards
- Duty cycle: Up to 10%
- Duty cycle: 10%; 2 minutes of continuous use, 18 minutes of rest
- Ambient operating temperature: +5°C to +40°C
- IEC60601, RoHS certified
HTS1 Controls
General Features
- Technical Parameters
- Number of Actuator 1~6 Actuator
- Color black
- IP rating: IP54 or IP66
- Certificate: CE/RoHS
- LED indicator
- Matching with GeMinG control box HTT- series.
HTT1 Protocol Synchronous Control Box
Product Features
- Compact, high-power controller
- Control options: Joystick control, 485 communication control
- Number of controlled motors: 1
- Input voltage: 110-240V AC
- Output voltage: 24-29V DC
- Color: Black
- Casing material: Flame-retardant ABS
- Current limiting, overload protection
- Overheat protection
- Short-circuit protection
- Insulation function
- Soft start and stop functions
- Ultra-low standby power consumption, meeting environmental standards
- Pluggable power cord (standard length 3 meters) with optional power plugs for global compatibility
- Integrated mounting holes for independent installation
- Ultra-low standby power consumption, meeting environmental standards
- Duty cycle: up to 10%
HTT2 Protocol Synchronous Control Box
Product Features
- Compact, high-power controller
- Control options: Joystick control, 485 communication control
- Number of controlled motors: 2
- Input voltage: 110-240V AC
- Output voltage: 24-29V DC
- Color: Black
- Casing material: Flame-retardant ABS
- Current limiting, overload protection
- Overheat protection
- Short-circuit protection
- Insulation function
- Soft start and stop functions
- Ultra-low standby power consumption, meeting environmental standards
- Plug-in power cord (standard length 3 meters) with optional power plugs for global compatibility
- Integrated mounting holes for independent installation
- Ultra-low standby power consumption, meeting environmental standards
- Duty cycle: Up to 10%
- Duty cycle: 10%; 2 minutes of continuous use, 18 minutes of rest
- Operating temperature: +5°C to +40°C
- IEC60601, RoHS certified
HTT4W DC synchronous control box
Product Features
- Compact High Power Controller
- Control options: handle control, 485 communication control
- Number of control motors: 4
- Input voltage: 12~29V DC
- Output voltage: 12~29V DC
- Colour: Black
- Shell material: flame retardant ABS
- Current limit, overload protection
- Overheating protection
- Short circuit protection
- Insulation function
- Soft start soft stop function
- Standby power consumption: 1~2w
- Power cord: stripped wire, 3 meters

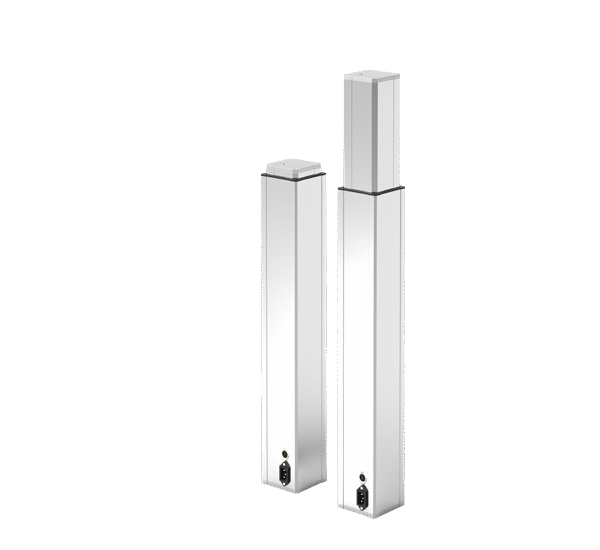

HTX2 Series Lifting column
Product Features
- Motor type: permanent magnet DC motor
- Voltage: 12V DC, 24V DC, 36V DC, 48V DC
- Maximum self-locking force: 3,000N/Limited to thrust
- Maximum load: 1,500N/Limited to thrust
- Maximum tension: 500N/Maximum tension
- The fastest speed at full load: 9.5 mm / s (load 500N)
- The slowest speed at full load: 4.8 mm / s (load 2,000N)
- Stroke: 100~600mm
- Minimum size: stroke + 180 mm (limited to 300 mm stroke or less)
- Minimum size: stroke + 200 mm (over 300 mm stroke or more)
- Maximum outer tube size: two sections, 100*100mm, square
- Color: silver gray or customized
- IP rating: IP54
- Operating temperature range: -45°C~+75°C
- Full performance operating temperature range: +5°C~+45°C
- Higher duty cycle (25%)
- Other options: Hall sensor (single or double), motor wire outlet mode is upper or lower side outlet, can synchronize the lifting operation of the system
- High-strength metal zinc alloy housing protects motors and gears
- Limit switch (built-in: not adjustable)
HTX3 Lifting column
General Features
- Voltage of motor: 12V DC, 24V DC,
- Maximum push force: 1,500N (only thrust), 1,000N（pull）
- Maximum speed at full load: 12mm/s ( load 800N)
- The slowest speed at full load: 6mm / s (load 1,500N)
- Stroke: 300~900mm
- Minimum dimensions: Stroke /2+ 200 mm (limited to 400 mm stroke or less)
- Color: Silver gray
- IP rating: IP54D
- Operational temperature range: -45°C~+75°C
- Operational temperature range at full performance: +5°C~+45°C
- Higher duty cycle (25%),
- Other options: Hall sensor
- High strength metallic zinc alloy housing protects motor and gear
- Built-in limit switches (not adjustable)
