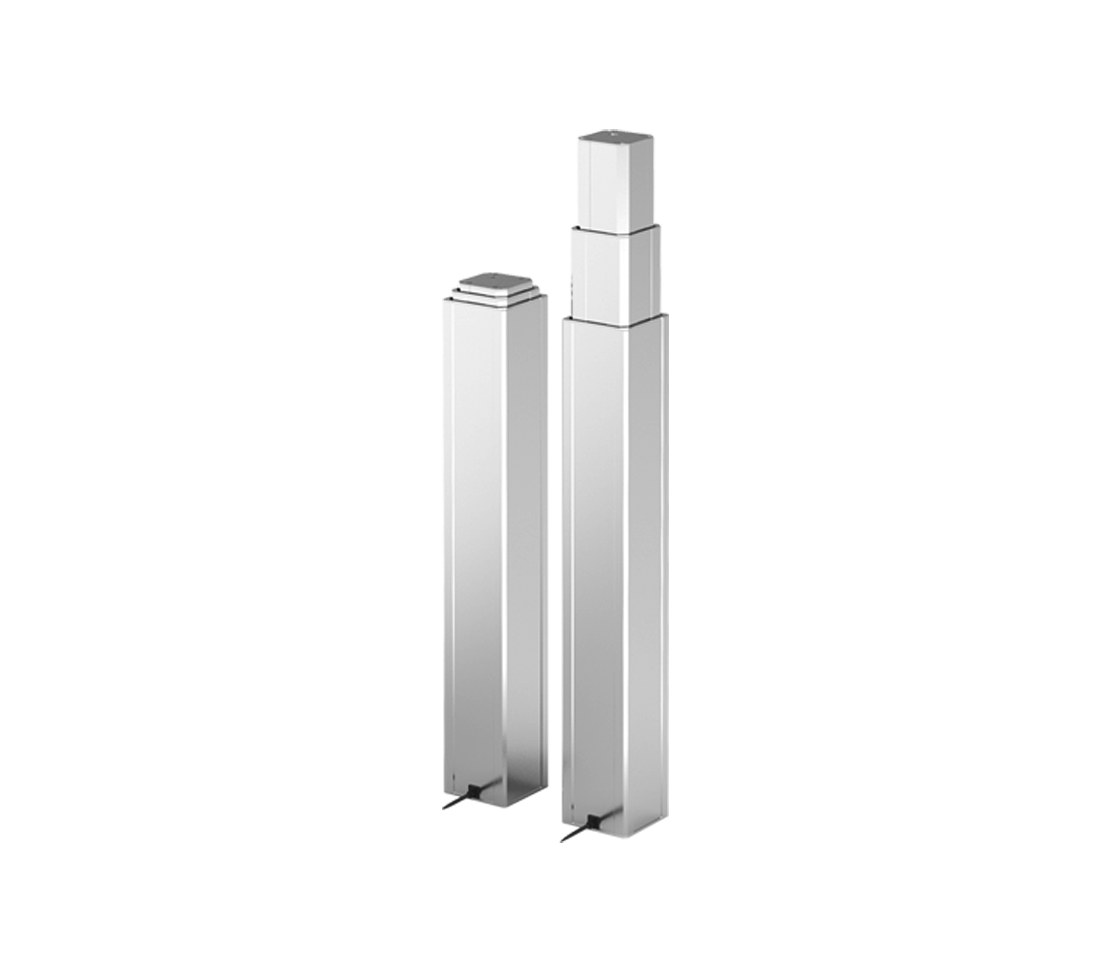

HTX3 Lifting column

General Features

  • Voltage of motor: 12V DC, 24V DC,
  • Maximum push force: 1,500N (only thrust), 1,000N（pull）
  • Maximum speed at full load: 12mm/s ( load 800N)
  • The slowest speed at full load: 6mm / s (load 1,500N)
  • Stroke: 300~900mm
  • Minimum dimensions: Stroke /2+ 200 mm (limited to 400 mm stroke or less)
  • Color: Silver gray
  • IP rating: IP54D
  • Operational temperature range: -45°C~+75°C
  • Operational temperature range at full performance: +5°C~+45°C
  • Higher duty cycle (25%),
  • Other options: Hall sensor
  • High strength metallic zinc alloy housing protects motor and gear
  • Built-in limit switches (not adjustable)
Get Quote
Categories: ,
Description

General Features

  • Voltage of motor: 12V DC, 24V DC,
  • Maximum push force: 1,500N (only thrust), 1,000N（pull）
  • Maximum speed at full load: 12mm/s ( load 800N)
  • The slowest speed at full load: 6mm / s (load 1,500N)
  • Stroke: 300~900mm
  • Minimum dimensions: Stroke /2+ 200 mm (limited to 400 mm stroke or less)
  • Color: Silver gray
  • IP rating: IP54D
  • Operational temperature range: -45°C~+75°C
  • Operational temperature range at full performance: +5°C~+45°C
  • Higher duty cycle (25%),
  • Other options: Hall sensor
  • High strength metallic zinc alloy housing protects motor and gear
  • Built-in limit switches (not adjustable)
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “HTX3 Lifting column”

Your email address will not be published. Required fields are marked *

Shipping & Delivery
wood-portfolio-placeholder
wood-gallery-placeholder-4

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Related products

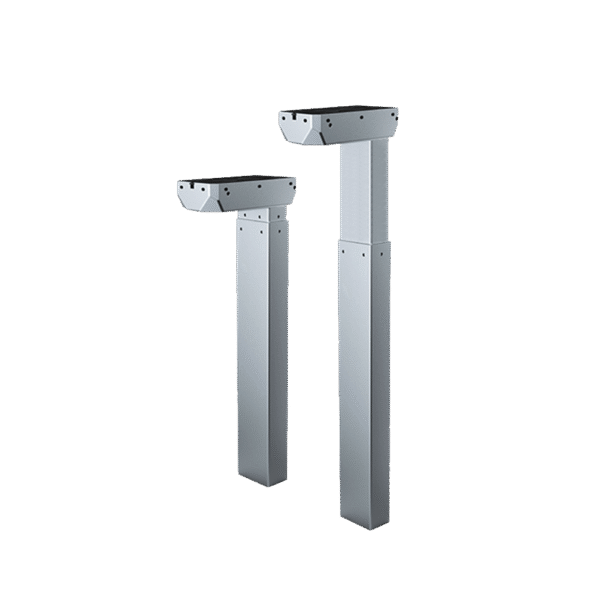

HTL81 Lifting column

General Features
  • Maximum load: 800N in push
  • Maximum speed at full load: 38mm/s (with 800N in a push condition)
  • Minimum installation dimension: 650mm
  • Stroke: 500mm
  • Highest height: 1150mm
  • Dimension of outer tube (L*W): 80*60mm
  • Two stage outer tube with rectangular appearance
  • Color: Silver gray
  • Operational temperature range: -45°C~+75°C
  • Operational temperature range at full performance: +5°C~+45°C
  • Higher duty cycle (25%),
  • With narrow top and wide bottom configuration
Read more
Quick view

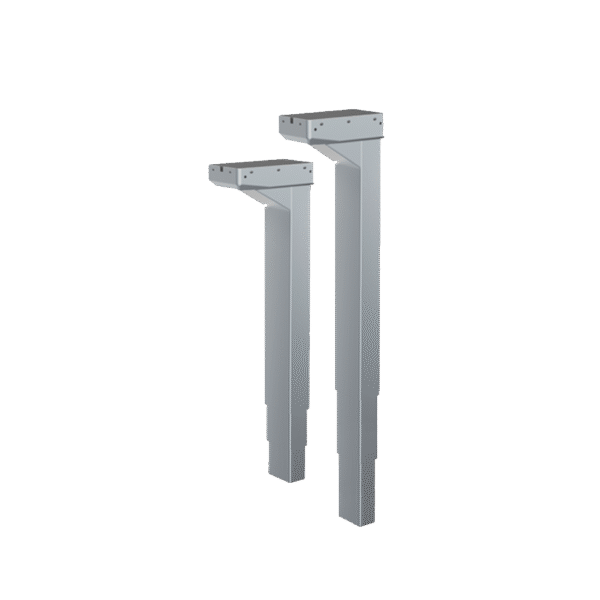

HTL84 Lifting column

General Features
  • Maximum load: 800N in push
  • Maximum speed at full load: 38mm/s (with 800N in a push condition)
  • Minimum installation dimension: 560mm
  • Stroke: 650mm
  • Highest height: 1210mm
  • Dimension of outer tube (L*W): 80*50mm
  • Two stage outer tube with rectangular appearance
  • Color: Silver gray
  • Operational temperature range: -45°C~+75°C
  • Operational temperature range at full performance: +5°C~+45°C
  • Higher duty cycle (25%),
  • With narrow top and wide bottom configuration
Read more
Quick view

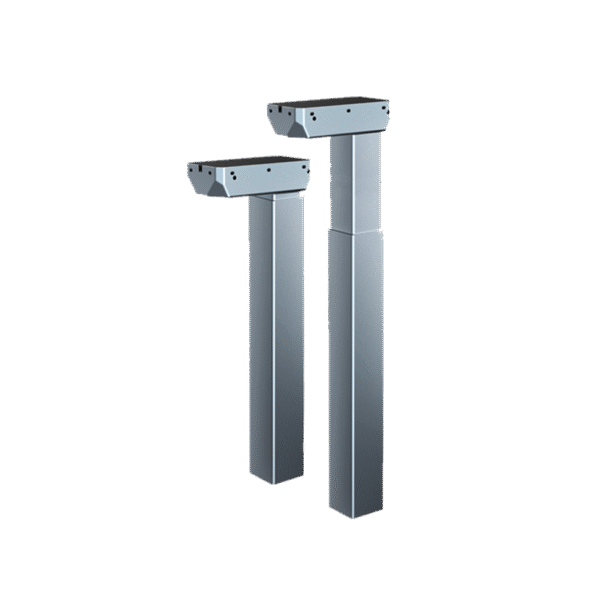

HTL85 Electric lifting column

Product Features
  • Motor type: permanent magnet DC motor
  • Maximum load: thrust 800N
  • Maximum speed at full load: 38mm/s (800N in the push state)
  • Minimum installation size: 650mm
  • Stroke: 500mm
  • Maximum height: 1150mm
  • Outer tube size (length * width): 70 * 70mm
  • Two-stage outer tube with rectangular shape
  • Color: silver gray
  • Operating temperature range: -45°C~+75°C
  • Full performance operating temperature range: +5°C~+45°C
  • Higher duty cycle (25%)
  • Narrow top and wide bottom configuration
Read more
Quick view

HTS5 Controls

General Features Technical Parameters Number of Actuator 1~6 Actuator Color black IP rating: IP54 or IP66 Certificate: CE/RoHS LED indicator
Read more
Quick view

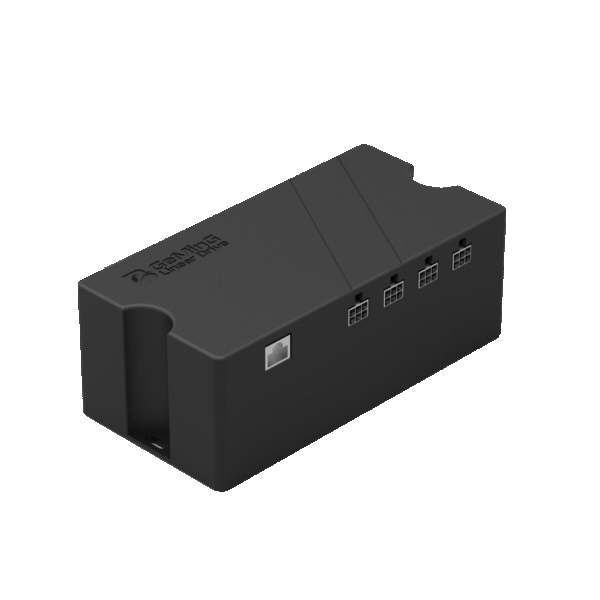

HTT4 Protocol Synchronous Control box
