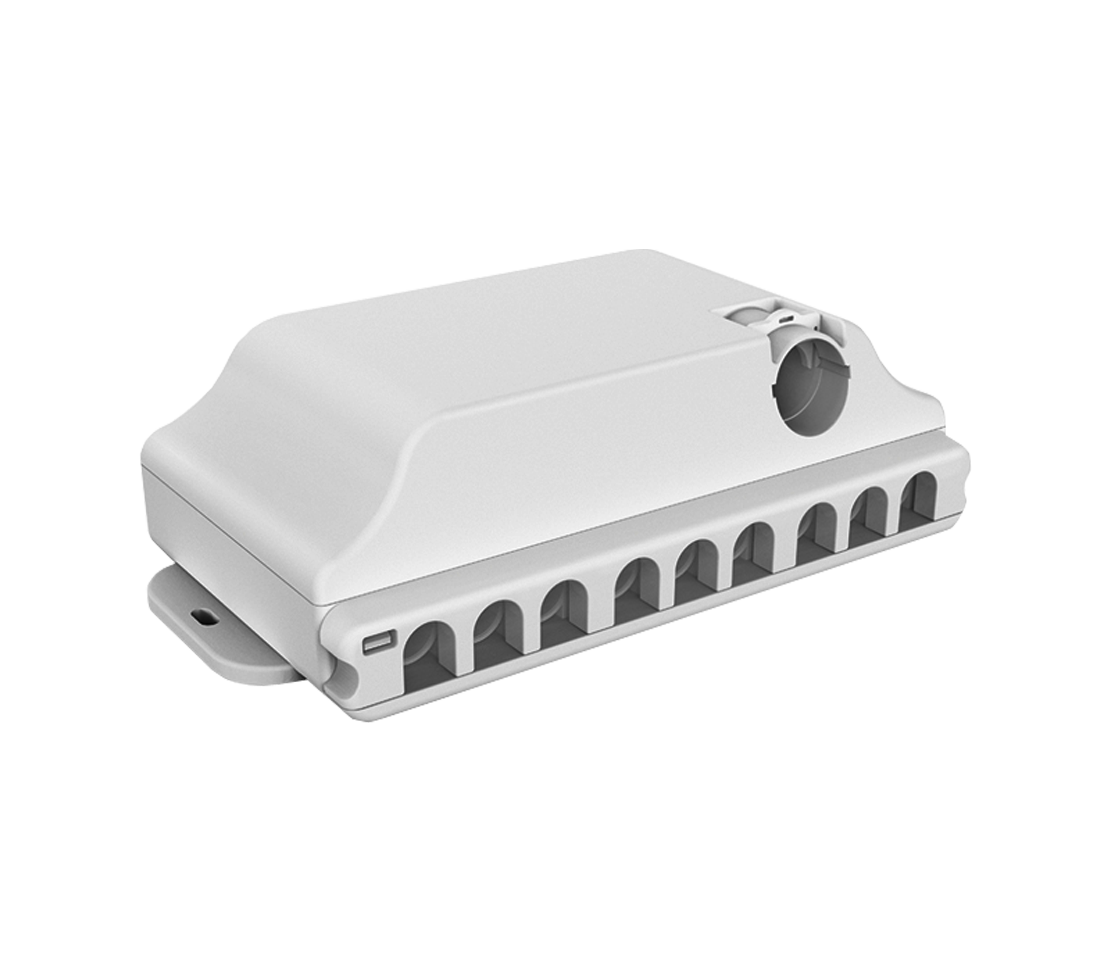

HTY6 Medical control box
The HTY6 control box is suitable for one to four GeMinG linear actuators of any type. Built-in maximum 10A switching power supply, support 100~240V input voltage. In addition, the HTK106Y has built-in anti-collision smart detection to protect the linear actuator from the danger of collisions during lifting due to external forces. It also has a built-in wireless remote control that allows the use of a wireless remote control to control the linear actuator.
Description
Product Features
• Built-in transformer type: switch type
• Input voltage: 100 ~ 240VAC
• Maximum output: 32V DC, 2.5A
• Plug: support European regulations, US regulations, Australian regulations, British regulations, Japanese regulations
• Number of pushers that can be connected: 1-4
• Color: black or off-white
• Overcurrent protection: shunt protection, total protection optional
• Other options: built-in (anti-collision intelligent detection), wireless remote control function
• Designed for medical control applications
• Supports simultaneous operation of two linear actuators
Use
• Working duty cycle: 10%; continuous use for 2 minutes, rest for 18 minutes
• Ambient temperature: +5°C~+40°C
• Passed IEC60601, UL, KC certification
