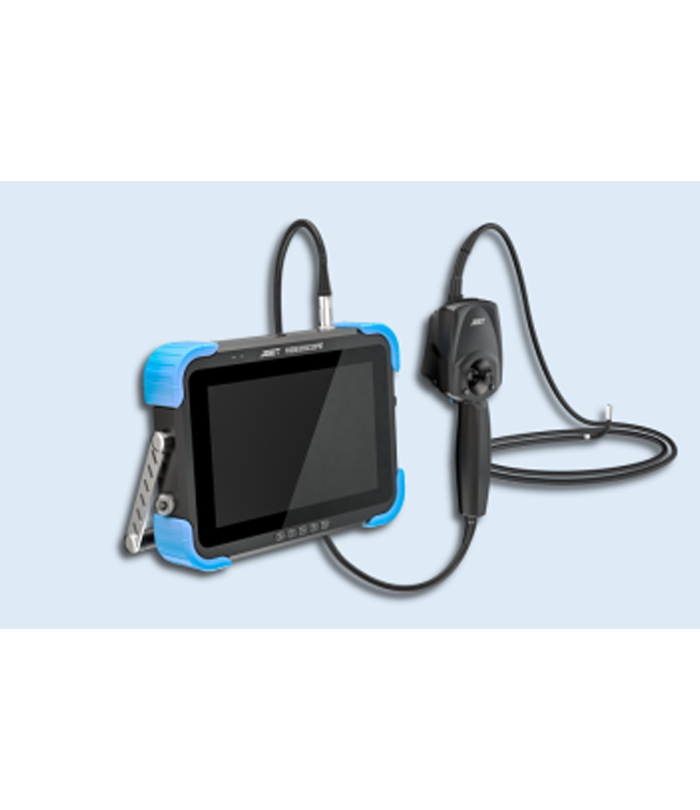

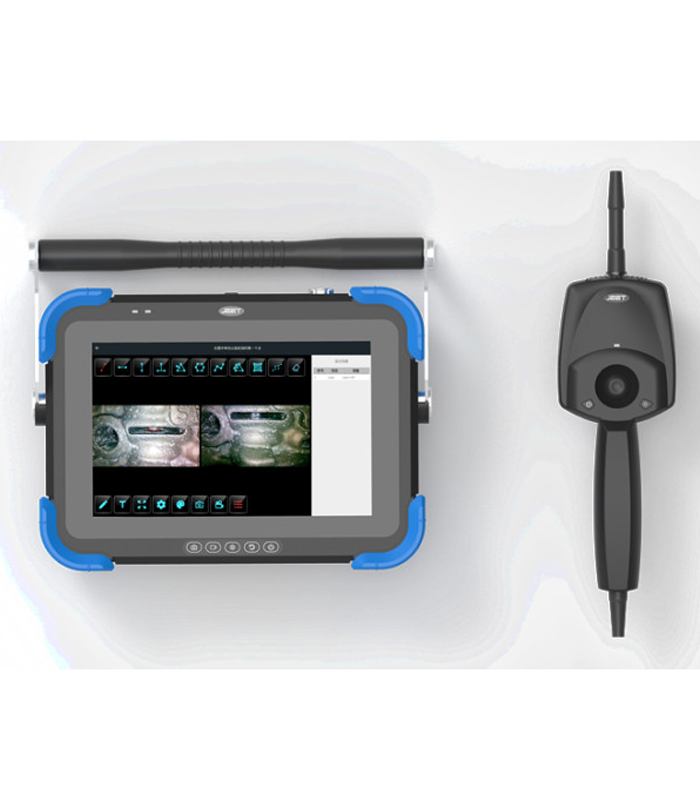

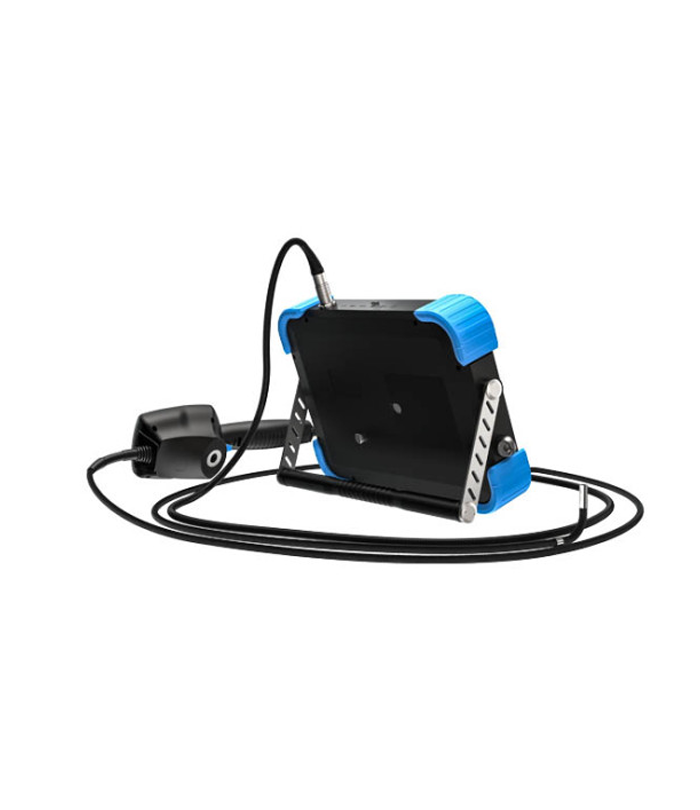

JEET F-Series Aviation Borescopes Industrial Endoscope For Inspection Of Aero-engines
| Model | F |
|---|---|
| Diameter | 1.0/1.8/2.2/2.8/3.8/6.0/8.0mm |
| DOF | 10~100mm |
| Sensor | HD image sensor |
| Resolution | HD 1000000 pixels |
| Working length | 2m/3m, customized |
| Material | Abrasion-resistant alloy |

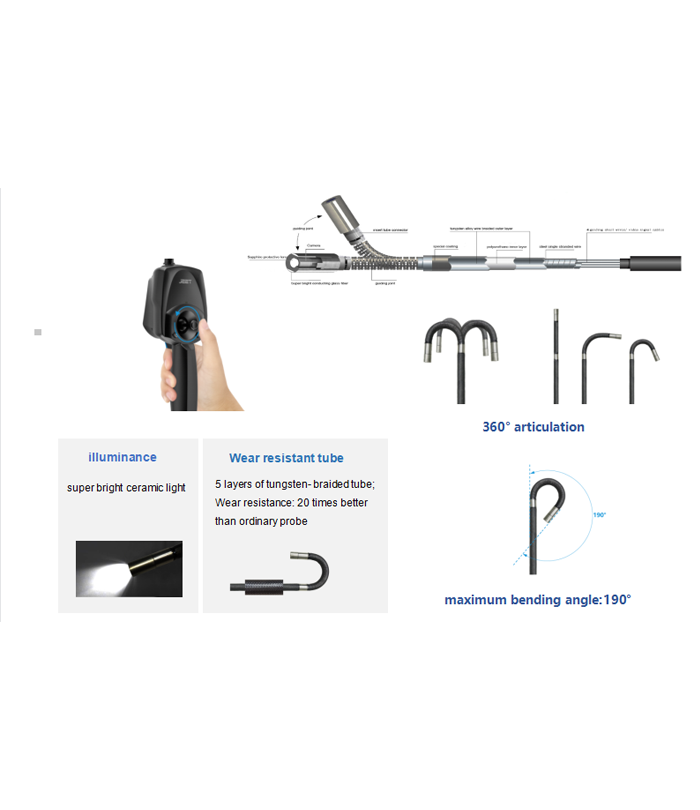

| Articulation | 360° |
| Bending angle | ≤150° |
Description
| Monitor System Monitor size | |
| Monitor Size | 300x220x59mm |
| Monitor weight | 1.9KG |
| Monitor material | magnesium aluminum alloy |
| Display resolution | 1920×1200 |
| Joystick handle size | 235x90x70mm |
| Joystick handle weight | 0.4KG |
| Articulation | 360° |
| Bending angle | ≤150° |
| Storage | Internal memory/SD card/U disk (optional) |

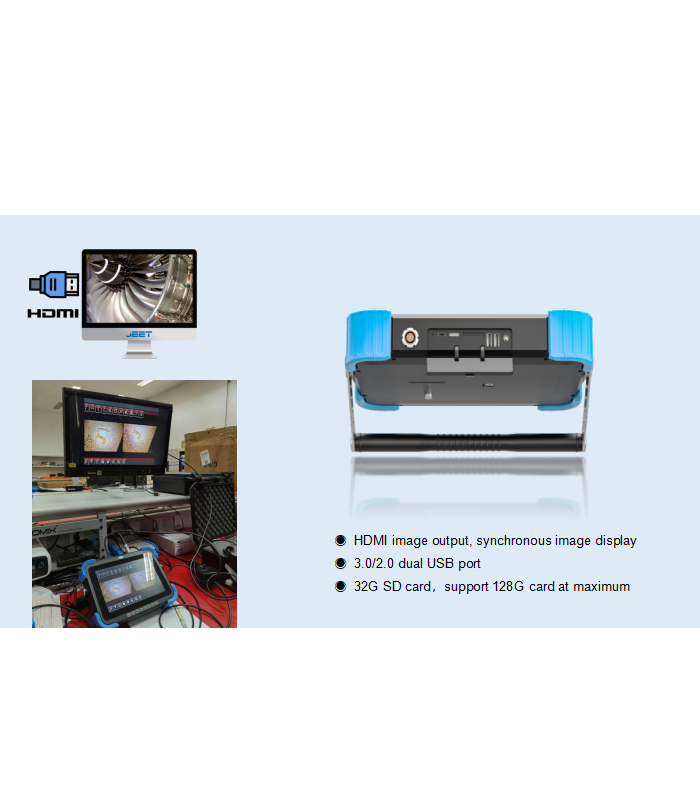

| I/O port | Micro USB-2;mini HDMI×1;SD slot-1;Air plug-1 |
| Video output | HDMI |
| Light source | Real cold light source+fiber |
| Brightness level | 5X |
| Illumination | Max 100000LX |
| White balance | Automatic |
| Battery capacity | 3000mA/3.7V x4 |
| Battery charging | 12V 1A |
| Power | 10W |
| Battery work time | 2.5h |
| DC mode | Support charging while use |
