JEET JX Motor-driven 3D Measurement Videoscope

Intelligent touch screen to restore real image effect

• 7-inch intelligent touch screen, sensitive touch and accurate operation
• The screen brightness can be adjusted and the image can be clearly seen
• Ultra clear image quality and highly restore the real effect of the image
• Parametric adjustment of image effect to grasp the defect situation at any time

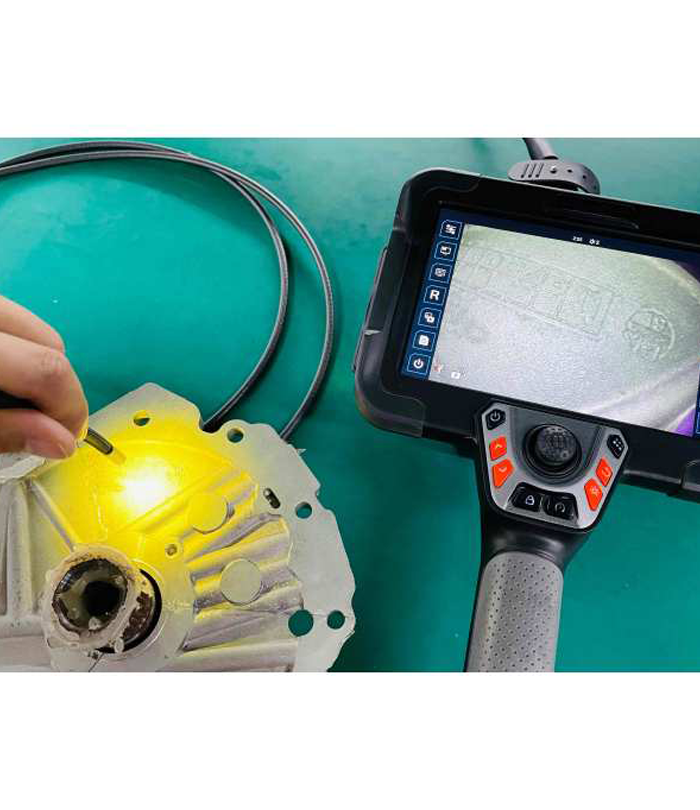

Rugged and suitable for different scenes

• 4-layer wear-resistant tungsten wire tube, the wear resistance is 20 times than the ordinary tube
• The probe, objective lens and tube system shall be IP67 waterproof
• The shell is made of engineering alloy and aviation aluminum alloy, which is firm and durable
• The products have undergone strict high and low temperature, drop, vibration and other tests

MDI report function，generate test report

• Select the photo and give a text description of the defect below the picture
• Graffiti notes can directly circle defects and cracks on the drawing
• Watermark annotation, and you can customize “qualified, crack” and other marks
• Generate report, which can be saved in USB flash disk, internal storage or transfered to mobile device via Bluetooth

Intelligent and convenient file management

• The file name can be preset or renamed
• New folders can be created to quickly find files
• Support picture/video preview and graffiti annotation pictures
• Pictures, videos and test reports can be deleted or exported with one click

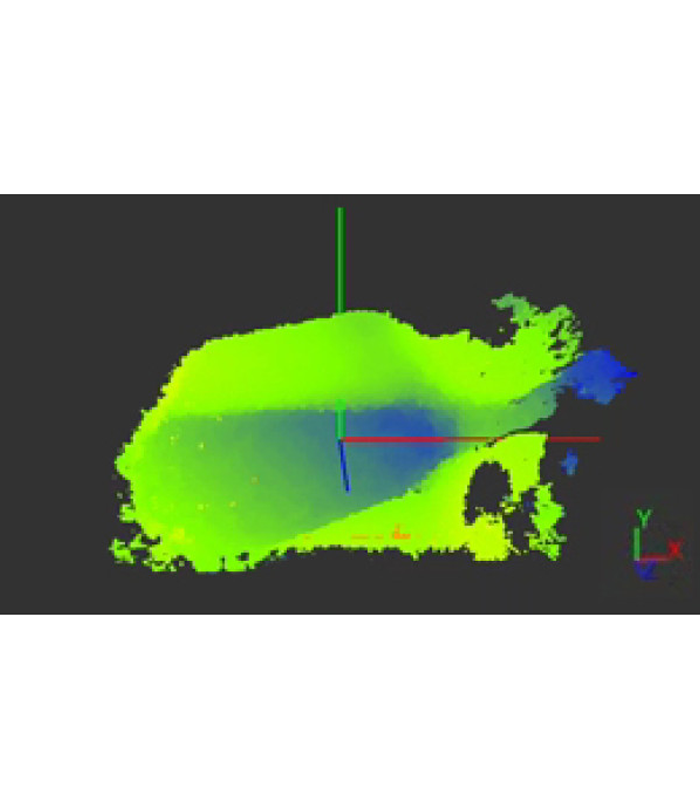

High precision and fast global scanning 3D cloud image

• Fast global scanning to view 3D physical cloud image
• Vertical depth cloud map, automatic measurement of maximum depth
• 3D cloud image XYZ coordinate display, arbitrary section view, easy to locate the depth and height difference of internal defects
• the datum plane shifts and the depth value changes in real time
• Modular design, and the host system, tube system and power supply system can be disassembled and separated.
• Independently replace the 1.0mm~8.0mm tube system to meet the needs of different working conditions

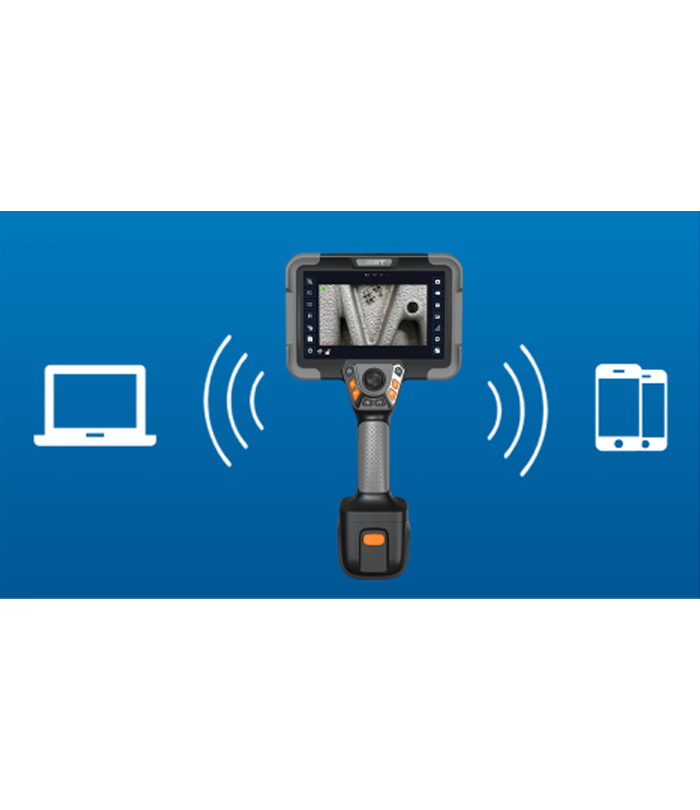

WiFi wireless image transmission

• WiFi wireless connection, and the mobile device synchronously displays the detection image
• Take photos / videos remotely through app and save test pictures
• Error reporting notes

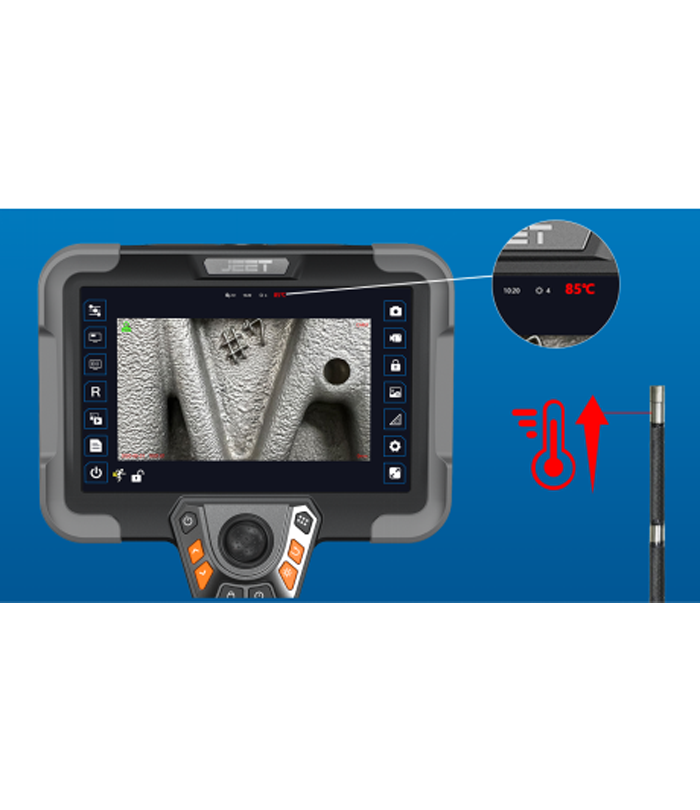

Probe temperature measurement

• Real time display of detected ambient temperature
• High temperature alarm function,  power off when overheating
