JEET TU Series UV Videoscope/ Industrial Endoscope/ Joystick Videoscope
| Model | TU |
|---|---|
| Probe Diameter(mm) | Φ6 |
| Camera Pixels | 1,000,000 |
| Image Resolution | 1280×720 |
| Video Resolution | 1280×720 |
| DOF | 10-100mm |
| FOV | 120° |
| Viewing Direction | front view |
| Light Source | Rear-mounted optic fiber cold UV+White source |
Description
JEET UV videoscope is only 0.56Kg and is very lightweight. In addition, the diameter of the tube is only 6mm. Two light sources are highly integrated in this 6mm insert tube, which are a 400-700nm white light source and a 365nm ultraviolet light source.
Flexible Articulation Control
360° joystick-control articulation, damping type positioning design, precise probe locking technology, make the detection more accurate and efficient. Independently developed technology of long-distance transmission ensures bending angle≥100°，even the tube reaches 10 meters.
Strong Hardware

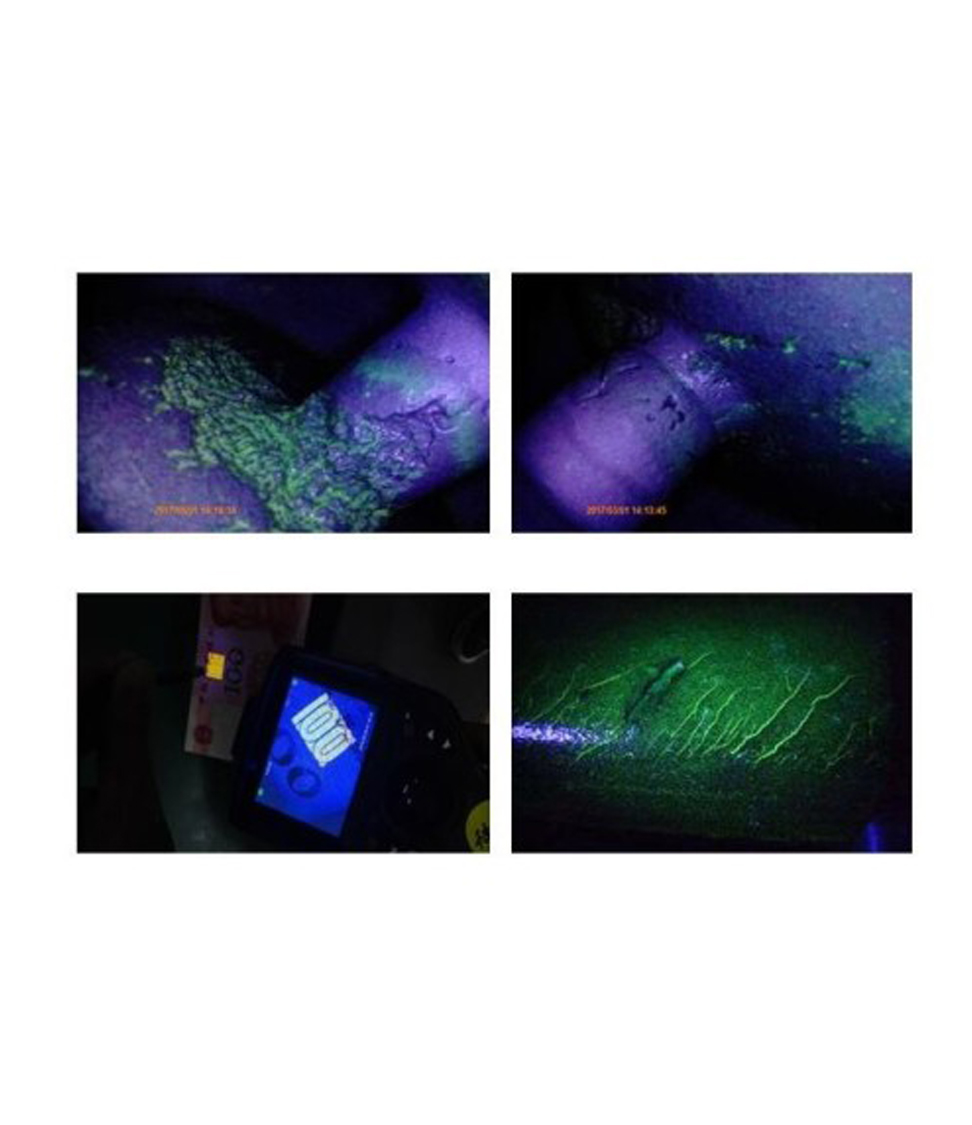

TU series HD UV fluorescent videoscope adopts modular design, the host and the handle can be separated with one button. The dual light source of the probe is designed in an integrated way, and an insert tube is equipped with both ultraviolet light and white light at the same time. By one-key switch through the universal button, white light can be used to find the direction, and ultraviolet fluorescence detection can be performed.
|
Tube System
|
Probe Diameter(mm)
|
Φ6
|
|
Camera Pixels
|
1,000,000
|
|
|
Image Resolution
|
1280×720
|
|
|
Video Resolution
|
1280×720
|
|
|
DOF
|
10-100mm
|
|
|
FOV
|
120°
|
|
|
Viewing Direction
|
front view
|
|
|
Light Source
|
Rear-mounted optic fiber cold UV+White source
|
|
|
Illuminance
|
1200uw/cm2
|
|
|
Tube Length
|
1.5m/3.0m/5.0m(customized for other length)
|
|
|
Protecting Device of Durability
|
42mm buffer protection device between tube and handle
|
|
|
Articulation
|
360° joystick-control articulation
|
|
|

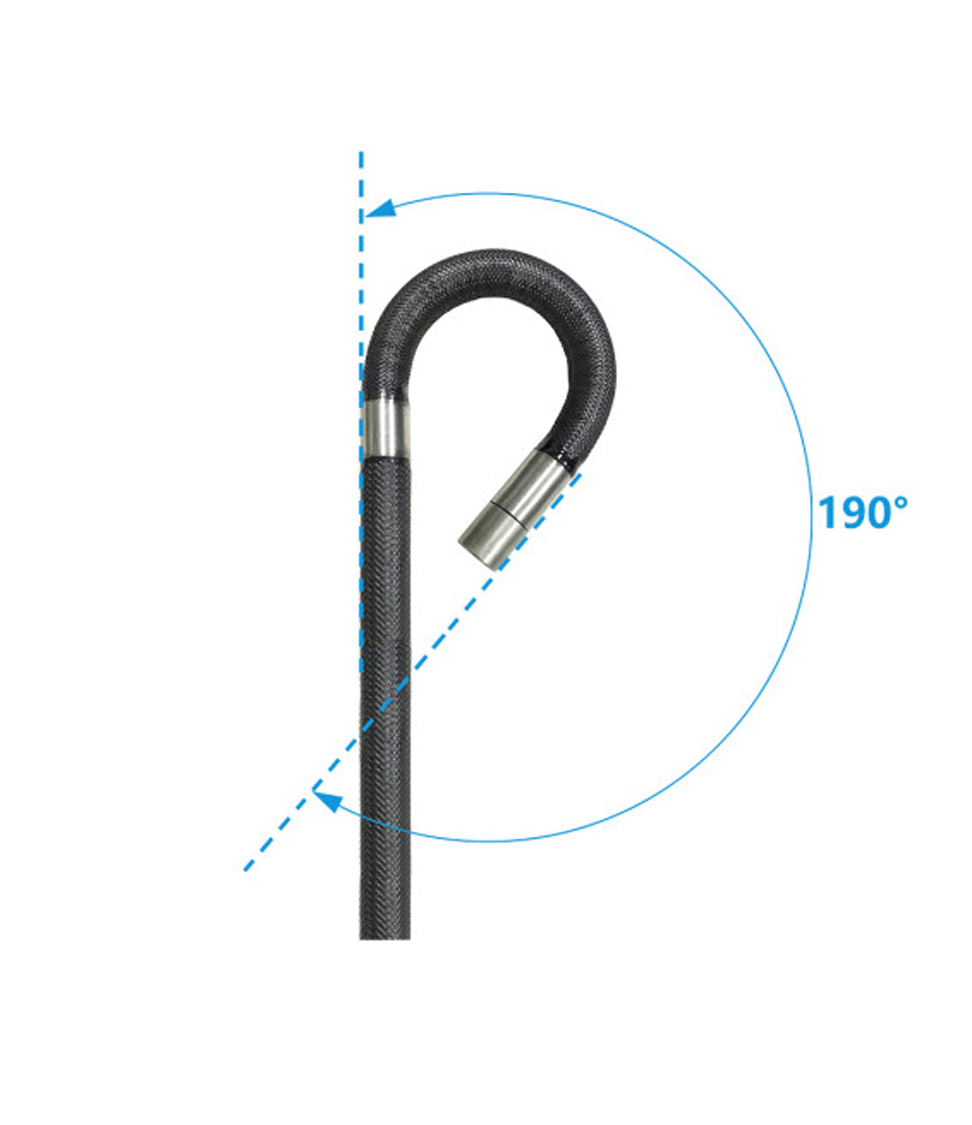

Bending Angle
|
Maximun:190°
|
|
|
Probe Positioning
|
Damping positioning & articulation lock device
|
|
|
Wi-Fi Transmission
|
Image transmission to Mobile phone, computer by Wi-Fi(optional)
|
|
|
Monitor
System |
Display
|
5.1″ color IPS display, all sight viewing angle, sunshade design
|
|
Display Resolution
|
1280*960
|
|
|
Zoom In/Out
|
8X
|
|
|
Language
|
English / French / German / Spanish / Japanese / Traditional Chinese / Simplified Chinese / Russian / Korean
|
|
|
White Balance Suppression
|
5 levels adjustable
|
|
|
White Balance
|
Auto white balance, automatically adjusts and eliminates speckles to achieve optimal images.
|
|
|
Temperature Indication
|
High temperature alarm （optional）
|
|
|
IP Level
|
Probe/tube: IP67
|
|
|
Software Function
|
Playback, image parameters adjust and rotate
|
|
|
Structure
|
Hand-held integrated design
|
|
|
Image/Video Format
|
JPEG/MOV
|
|
|
Comparative Measurement
|
Use measuring probe and analog scale to compare and analyze the internal defect and size of the inspected object.
|
|
|
Data Port
|
HDMI video output, Micro USB port with water &dust proof device
|
|
|
Working Time
|
≥8h
|
|
|
Battery Capacity
|
3.7V，3200mAh×2
|
|
|
Power Charge
|
DC5V, 1A
|
|
|
Weight
|
≤0.8Kg
|
|
|
Compatibility
|
Interchangeable monitor and tube with different diameters
|
|
|
Accessories
|
Standard Configuration
|
Instrument case:1pc; videoscope: 1 set; battery: 2pcs; card reader: 1pc; 32G. TF card: 1pc; charger: 1pc; USB cable: 1pc; user manual: 1 set
|
