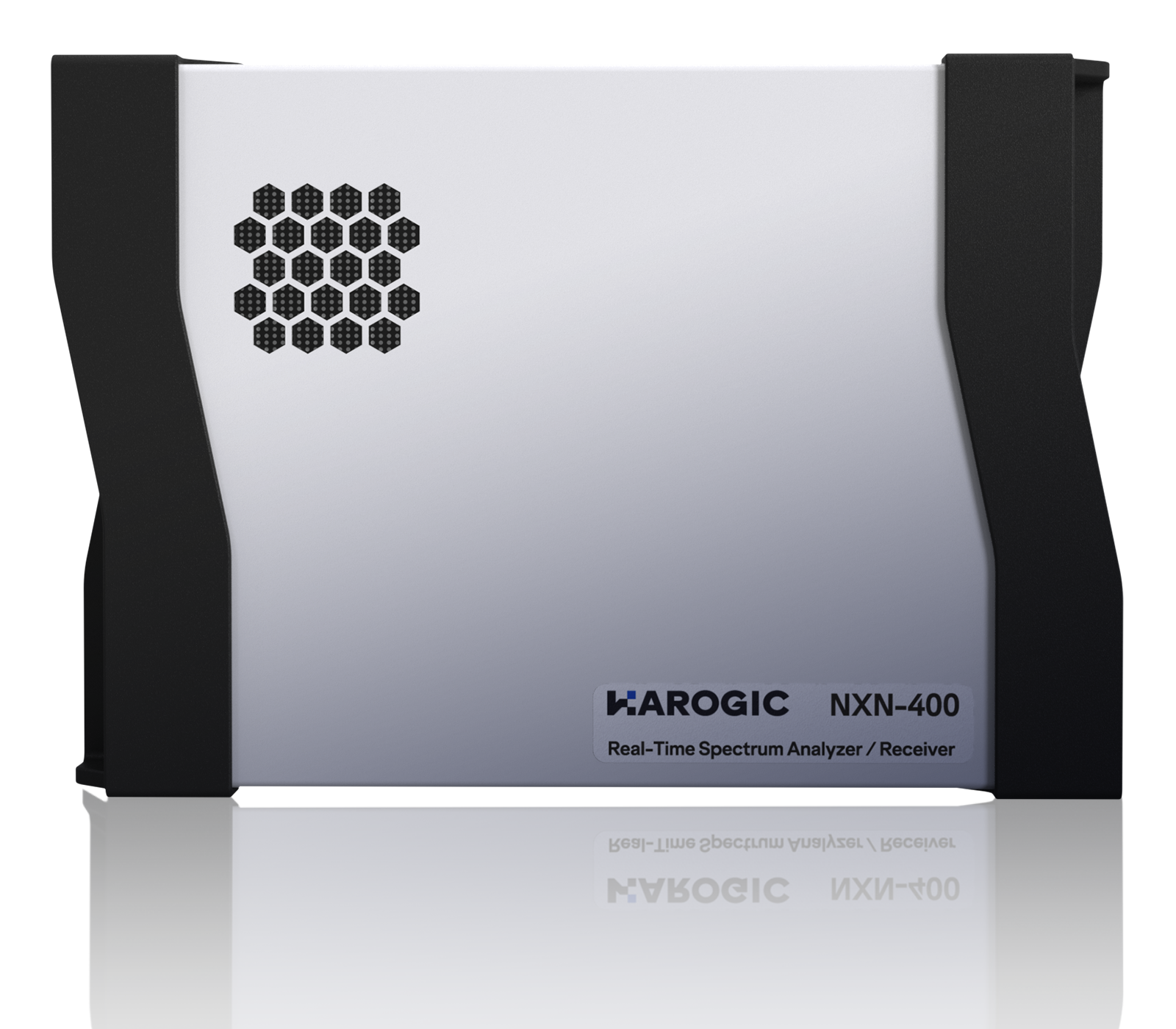

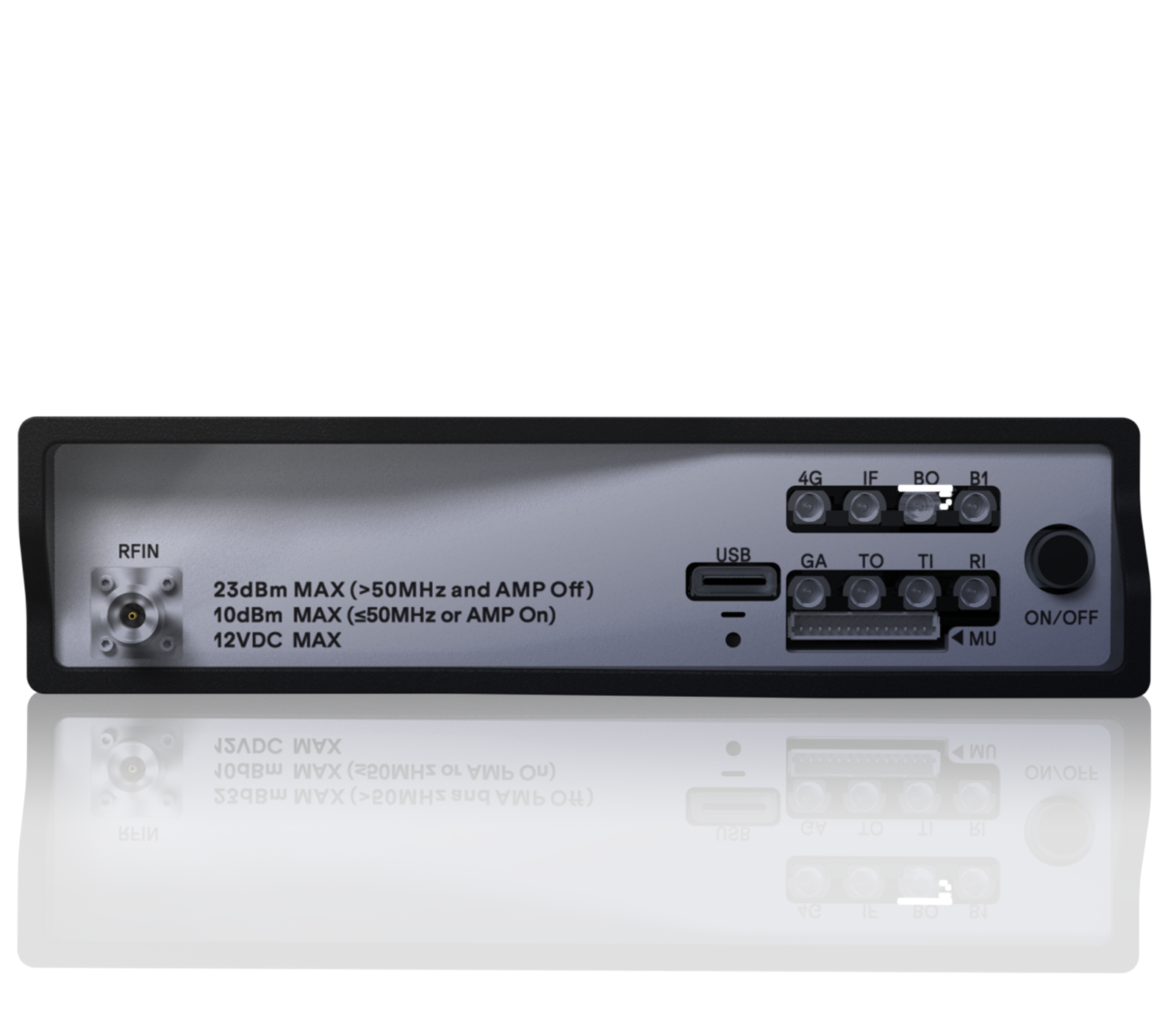

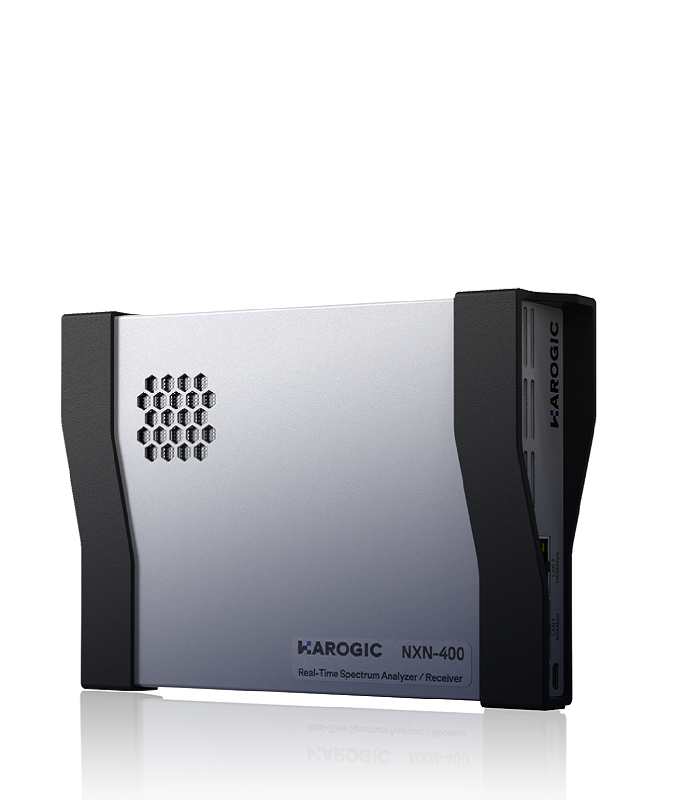

NXN-400 Series
KEY FACTS
- Frequency Range: 9 kHz To 40 GHz
- 1 GHz DANL: -161 dBm/Hz
- 1 GHz Phase Noise: -107 dBc/Hz@10 kHz
- Analysis Bandwidth: Up to 100 MHz

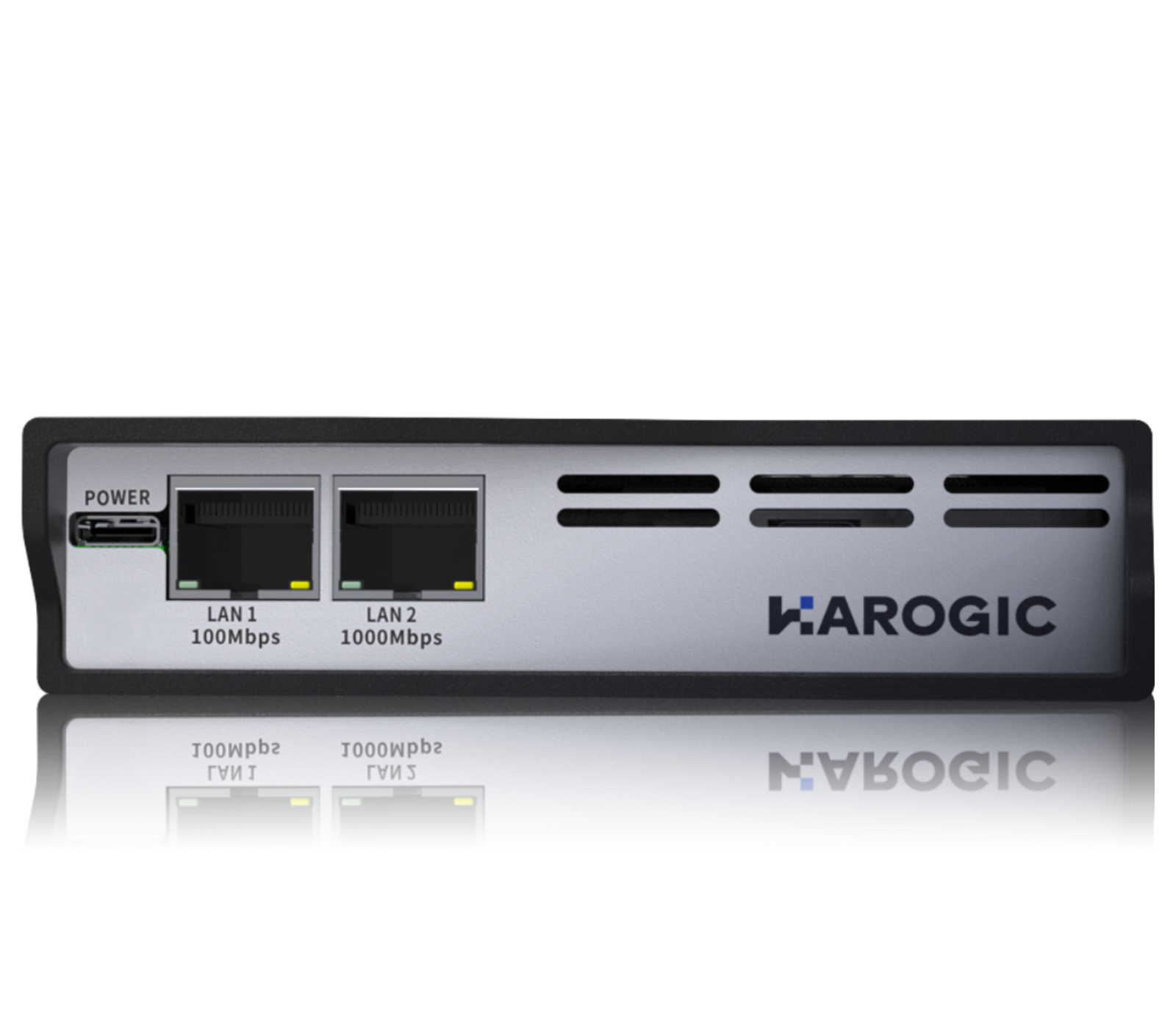

- 1000M/100M Ethernet Interface
- Highly Compatible API Interface
- Linux and Windows Operating Systems Are Supported
Benefits Highlight
NXN-400 series is a powerhouse for network node spectrum analysis, covering 9 kHz to 40 GHz. Its 100 MHz analysis bandwidth and rapid 300 GHz/s sweep speed ensure swift, reliable signal detection. Enhanced by robust image suppression and IF rejection, the NXN-400 excels in demanding environments. Compact and efficient, it supports Ethernet and GNSS, making it a versatile choice for remote RF spectrum analysis.
Description
KEY FACTS
- Frequency Range: 9 kHz To 40 GHz
- 1 GHz DANL: -161 dBm/Hz
- 1 GHz Phase Noise: -107 dBc/Hz@10 kHz
- Analysis Bandwidth: Up to 100 MHz
- 1000M/100M Ethernet Interface
- Highly Compatible API Interface
- Linux and Windows Operating Systems Are Supported
Benefits Highlight
NXN-400 series is a powerhouse for network node spectrum analysis, covering 9 kHz to 40 GHz. Its 100 MHz analysis bandwidth and rapid 300 GHz/s sweep speed ensure swift, reliable signal detection. Enhanced by robust image suppression and IF rejection, the NXN-400 excels in demanding environments. Compact and efficient, it supports Ethernet and GNSS, making it a versatile choice for remote RF spectrum analysis.
Reviews (0)
Only logged in customers who have purchased this product may leave a review.
Shipping & Delivery
Related products
NXM Series
KEY FACTS
- Frequency Range: 9 kHz To 6.3/8.5 GHz
- 1 GHz DANL: -166 dBm/Hz
- 1 GHz Phase Noise: -110 dBc/Hz@10 kHz
- Analysis Bandwidth: Up to 100 MHz
- 1000M/100M Ethernet Interface
- Highly Compatible API Interface
- Linux and Windows Operating Systems Are Supported
Benefits Highlight
NXM-60 is a compact and powerful real-time spectrum analyzer/receiver. It covers a frequency range from 9 kHz to 6.3 GHz, making it suitable for various RF analysis tasks. With features like a 100 MHz analysis bandwidth, fast sweep speed, and an integrated signal generator (optional), the NXM-60 delivers reliable performance in both lab and field environments. NXM-60 extends RF boundaries with its advanced features, making it an excellent choice for spectrum analysis, wireless communication, and research applications.
NXN Series
KEY FACTS
- Frequency Range: 9 kHz To 4.5/6.3 GHz
- 1 GHz DANL: -162 dBm/Hz
- 1 GHz Phase Noise: -110 dBc/Hz@10 kHz
- Analysis Bandwidth: Up to 25 MHz
- 1000M/100M Ethernet Interface
- Highly Compatible API Interface
- Linux and Windows Operating Systems Are Aupported
Benefits Highlight
NXN series is a versatile and precise tool for real-time spectrum analysis, covering 9 kHz up to 6.3 GHz. It boasts a 6.25 MHz analysis bandwidth and swift 69 GHz/s sweep speed. With a dynamic range of -160 dBm/Hz and robust phase noise performance at -110 dBc/Hz, it ensures accurate and reliable measurements. Ideal for various demanding applications, its compact size and GNSS support make it a dependable choice for professionals on the go.
PXE Z Edition
KEY FACTS
- Windows11 operating system
- 1.2 kg lightweight, 8.8-inch multi touchscreen
- Frequency range: 9 kHz to 9.5/20 GHz
- 1 GHz DANL: -168 dBm/Hz
- 1 GHz phase noise: -100 dBc/Hz@10 kHz
- Analysis bandwidth: up to 100 MHz
- CPU: high performance AMD Z1 Extreme
- 16 GB RAM and 512 GB SSD
Benefits Highlight
HAROGIC PXN-400Z handheld spectrum analyzer is up to 40 GHz with 100 MHz bandwidth. It is the latest spectrum analyzer based on Windows 11 operating system and AMD Z1 extreme CPU for effective field computing analysis.
PXE-200 Series
KEY FACTS
- Frequency Range: 9 kHz to 20 GHz
- 1 GHz DNAL: -165 dBm/Hz (typ.)
- 1 GHz Phase Noise: -101 dBc/Hz@10 kHz (typ.)
- Analysis Bandwidth: 100 MHz
- 3 Hours Battery Time (typ.)
- Channel Power, ACPR, OBM, Phase Noise and More (std.)
Benefits Highlight
PXE series is the real-time spectrum analyzer up to 20 GHz with analytical bandwidth of 100 MHz and ultra-fast speed of 900 GHz/s, delivering standard spectrum sweep (SWP), IQ streaming (IQS), zero span (DET) and real-time analysis (RTA) working mode. The PXE-200 achieves good dynamic range and phase noise level. It can provide customers with spectrum analyzer, spectrum monitoring, interference finding, RF test and measurement functions.
PXN-400 Series
KEY FACTS
- 1.5 Kg Lightweight, 10.1-Inch Multi Touchscreen
- Frequency Range: 9 kHz to 40 GHz
- 1 GHz DANL: -161 dBm/Hz
- 1 GHz Phase Noise: -107 dBc/Hz@10 kHz
- Analysis Bandwidth: Up to 100 MHz
- Channel Power, Phase Noise and More (std.)
- 3 Hours Operation Time
Benefits Highlight
PXN-400 revolutionizes RF spectrum analysis with its cutting-edge SHR architecture and unparalleled frequency range of 9 kHz to 40 GHz. Featuring a remarkable dynamic range of -161 dBm/Hz and an analytical bandwidth of 100 MHz, the PXN-400 guarantees precise and comprehensive signal detection. Its ultra-fast sweep speed of over 500 GHz/s and exceptional phase noise performance at -107 dBc/Hz ensure reliable and accurate measurements, even in the most demanding environments.
PXR Series
KEY FACTS
- IEC IP68 certified
- MIL-STD-810H method-512.6/514.8/516.8 certified
- 2.5 kg lightweight, 10.1-inch multi touchscreen
- Frequency range: 9 kHz to 9.5/20/40 GHz
- 1 GHz DANL: -161 dBm/Hz
- 1 GHz phase noise: -100 dBc/Hz@10 kHz
- Analysis bandwidth: up to 100 MHz
- Operation Time: 4 Hours (typ.)
Benefits Highlight
HAROGIC PXR series is the latest rugged handheld spectrum analyzer with IP68 standard design. With its IP68-rated enclosure, it delivers unparalleled durability, ensuring reliable performance in extreme conditions—dust, water, and shock. Featuring frequency range of 9 kHz to 40 GHz and an analytical bandwidth of 100 MHz, the PXR series handheld rugged spectrum analyzer guarantees reliable and accurate measurement anywhere and anytime.
SAN Series
KEY FACTS
- Frequency Range: 9 kHz To 4.5/6.3 GHz
- 1 GHz DANL: -162 dBm/Hz
- 1 GHz Phase Noise: -110 dBc/Hz@10 kHz
- Analysis Bandwidth: Up to 25 MHz
- USB3.0/2.0 Type C Interface
- Highly Compatible API Interface
- ARM and X86 Processor Are Supported
- Linux and Windows Operating Systems Are Supported
SAN series offers exceptional RF spectrum analysis in a compact, USB-powered form. With a frequency range of 9 kHz to 6.3 GHz, it ensures precise measurements through its 25 MHz analysis bandwidth and over 20 GHz/s sweep speed. Its superior dynamic range of -160 dBm/Hz and excellent phase noise performance at -110 dBc/Hz at 1 GHz make it an invaluable tool for accurate and efficient spectrum analysis.
SAN-400 Series
KEY FACTS
- Frequency Range: 9 kHz to 40 GHz
- 1 GHz DANL: -161 dBm/Hz
- 1 GHz Phase Noise: -107 dBc/Hz@10 kHz
- Analysis Bandwidth: Up to 100 MHz
- USB3.0/2.0 Type C Interface
- Highly Compatible API Interface
- ARM and X86 Processor Are Supported
- Linux and Windows Operating Systems Are Supported
Benefits Highlight
SAN-400 packs impressive capabilities into its compact form. Weighing just 185 g (similar to a mobile phone) and measuring 125 mm × 60 mm × 17 mm, it’s ideal for field use and embedded applications. Its highly compatible API interfaces allow for efficient secondary development, while offering outputs like spectrum visualization, digital IQ streams, and real-time spectrum analysis.
