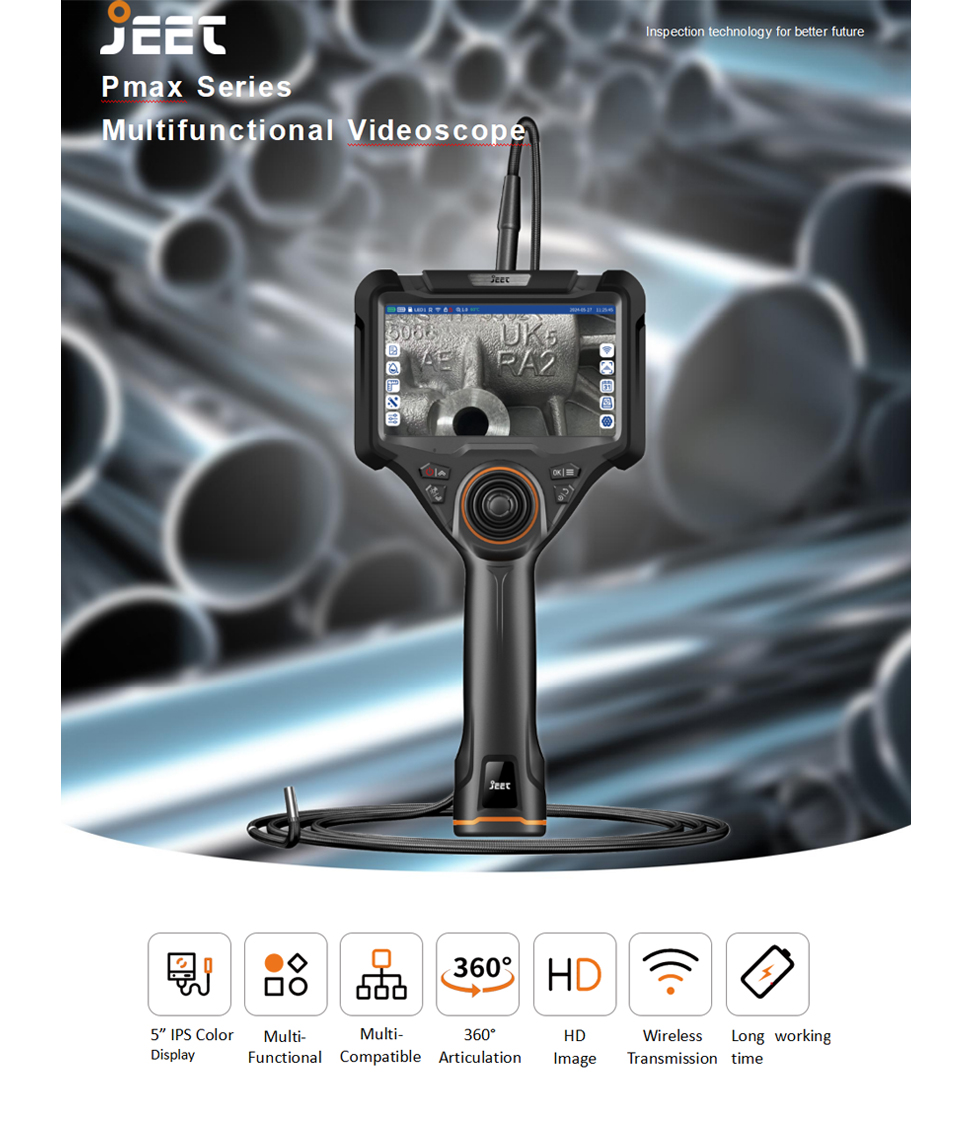

Pmax Series Multifunctional Videoscope
| Model | Pmax |
|---|---|
| Probe Diameter(mm) | Φ6.0mm |
| Camera Pixels | 1 mega pixels / 2 mega pixels |
| Image Resolution | 720P / 1080P |
| Video Resolution | 720P / 1080P |
| DOF | 10mm-100mm |
| FOV | 90° / 120° |
| Viewing Direction | front view / side view |
| Light Source | front high bright ceramic light source / rear fibe |
| Brightness Levels | 0-5 level cyclic adjustment |
| Tube Length | 1.5m /3.0m（customized for other length） |
Description
| Tube
System
|
Probe Diameter(mm) | Φ6.0mm |
| Camera Pixels | 1 mega pixels / 2 mega pixels
|
|
| Image Resolution | 720P / 1080P | |
| Video Resolution | 720P / 1080P | |
| DOF | 10mm-100mm | |
| FOV | 90° / 120° | |
| Viewing Direction | front view / side view | |
| Light Source | front high bright ceramic light source / rear fiber optic cold light source | |
| Brightness Levels | 0-5 level cyclic adjustment | |
| Tube Length | 1.5m /3.0m（customized for other length） | |
| Protecting Device of Durability | 80mm buffer protection device between tube and handle | |
| Articulation | 360° omni-directional bending | |
| Bending Angle | max:190° | |
| Monitor
System
|

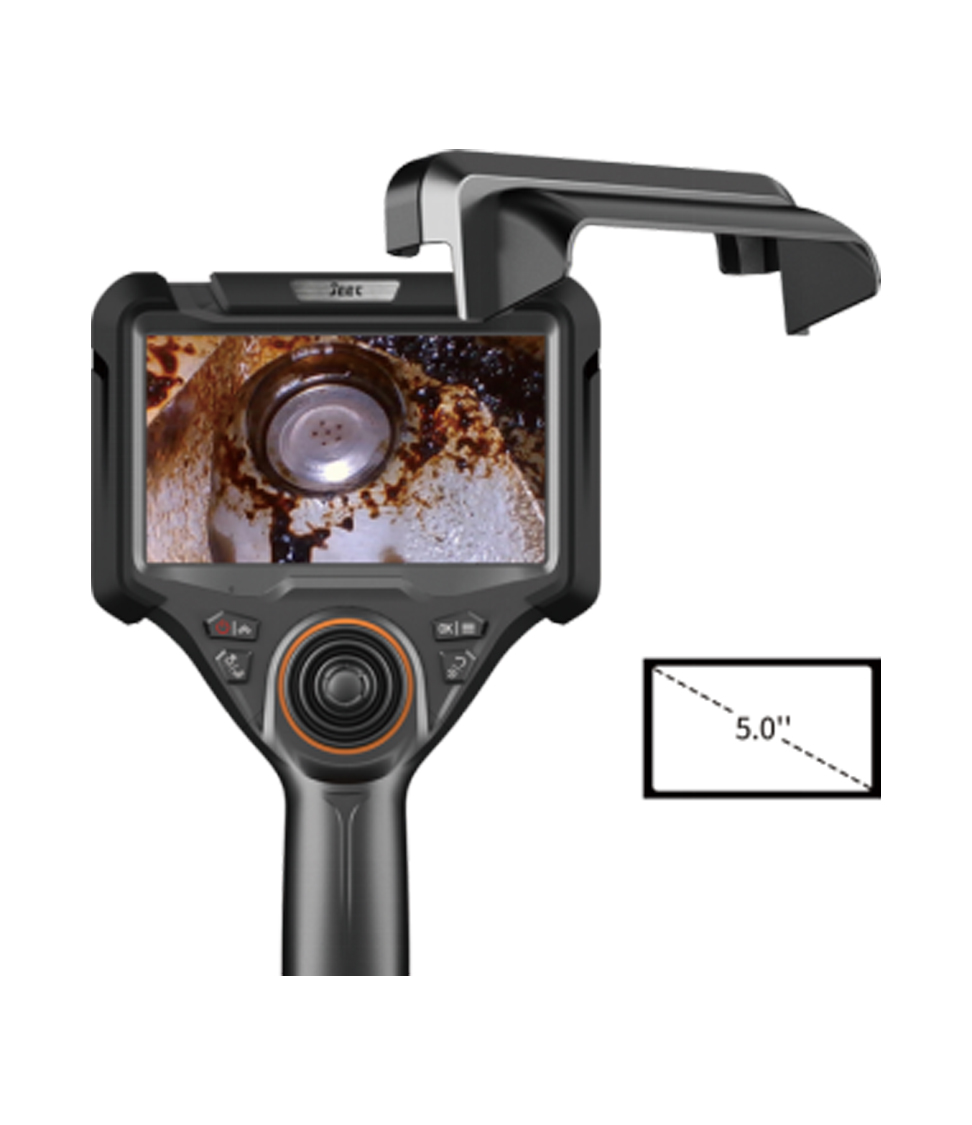

Display | 5″ color IPS display |
| Auto-off Switch | the device can be set to switch off automatically after 3, 5 or 10 minutes | |
| Photo/Video Function. | one button to take photos and videos and support the playback of photos and videos | |
| Photo/Video Format | JPG / MOV | |
| Image Rotate | 0° / 180° / mirror image | |
| Zoom In/Out | 3X | |
| Freeze | fast freeze of images with one click | |
| Image Setting | brightness, contrast ratio, sharpness adjustment | |
| Date Watermark | turn it on to postmark the date directly into photos and videos | |
| Date Setting | edit to adjust the device date | |

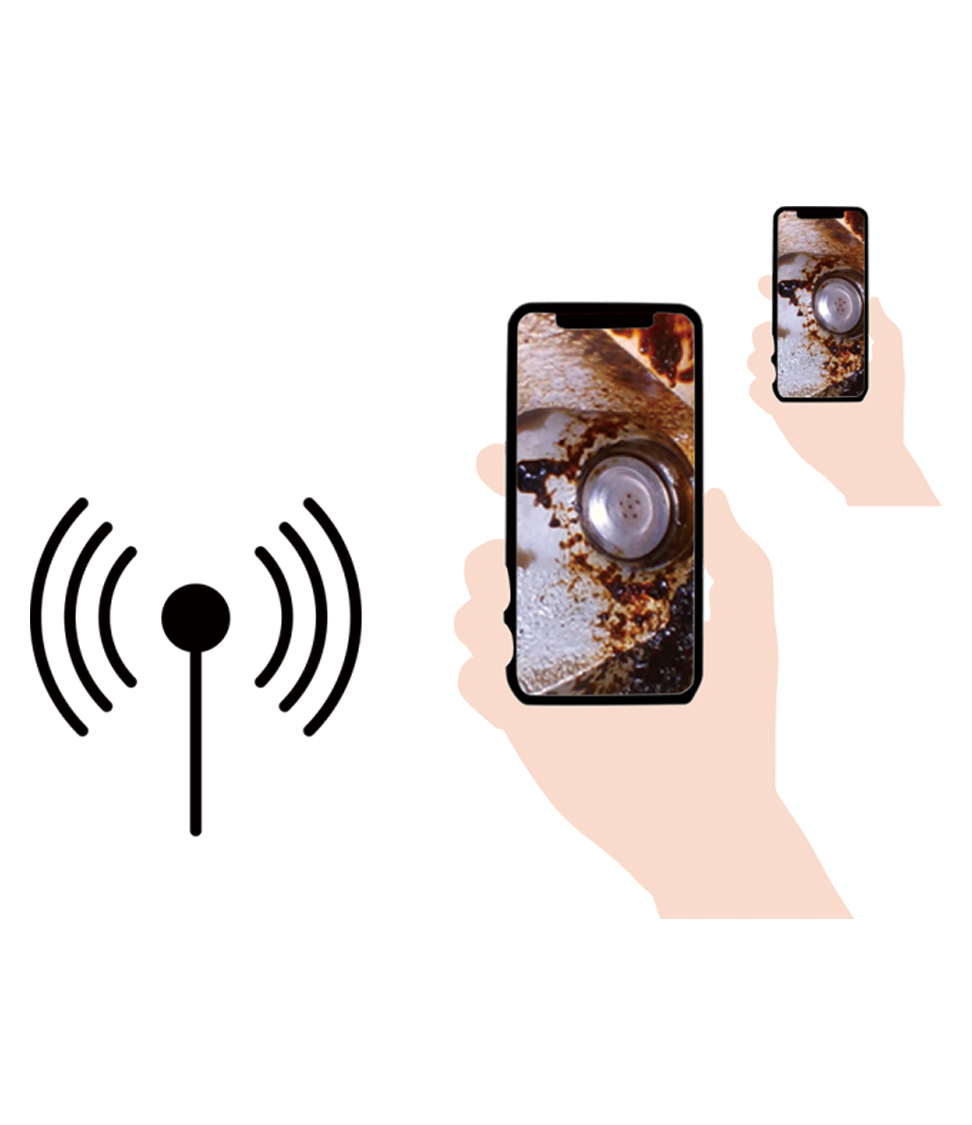

| Wireless Transmission（WiFi） | wireless access to device video data via a mobile terminal app | |
| Temperature Indication | temperature real-time display, high temperature alarm | |

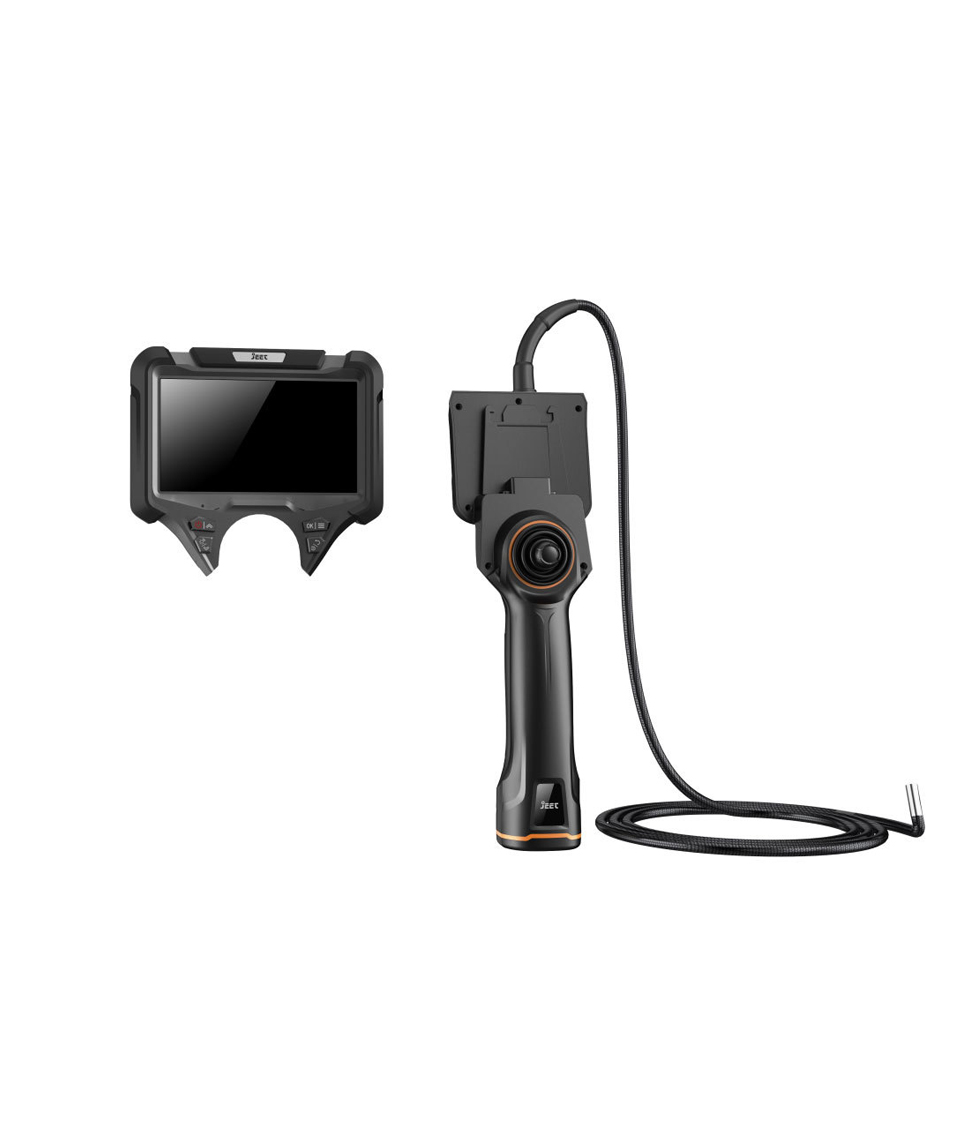

| Compatibility | hand-held integrated design, pull-out compatible for replacement of insertion tube systems of different diameters/lengths/orientations | |
| Data Port | HDMI, video output, Type-C | |

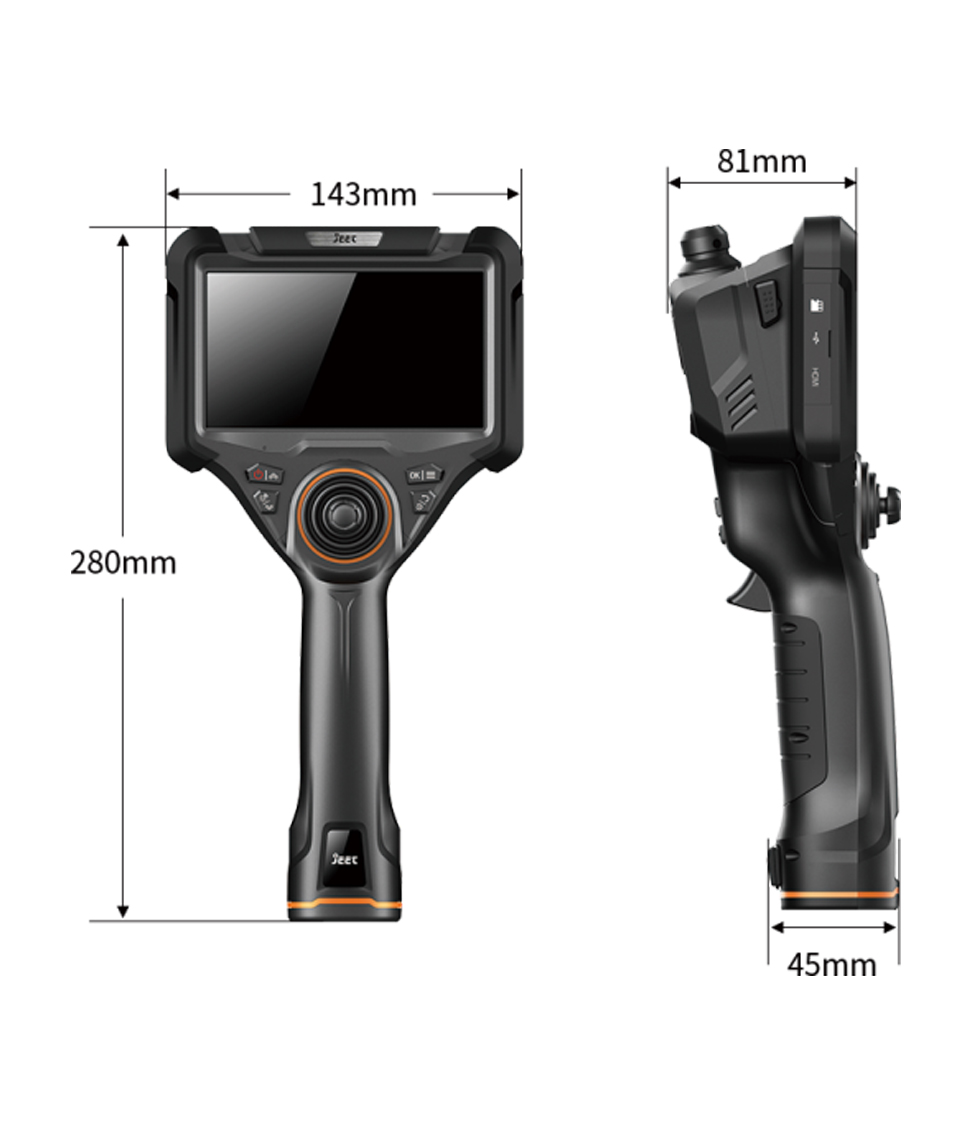

| Weight | ≤0.75kg（including batteries） | |
| Work Time | real-time power display, continuous working time ≥ 4h
(under normal temperature conditions) |
|
| Dual power supply (optional)） | Dual power supply, endurance ≥ 8 hours | |
| IP Level | Monitor: IP54, Probe: IP68 | |
| Applicable Temperature
(whole machine) |
-30℃~50℃ | |
| Accessories | Standard Configuration | instrument case: 1pc / videoscope: 1 set / card reader: 1 pc /
16G TF card: 1pc / charger: 1pc / USB cable: 1pc / user manual: 1 set / certification: 1 set |
