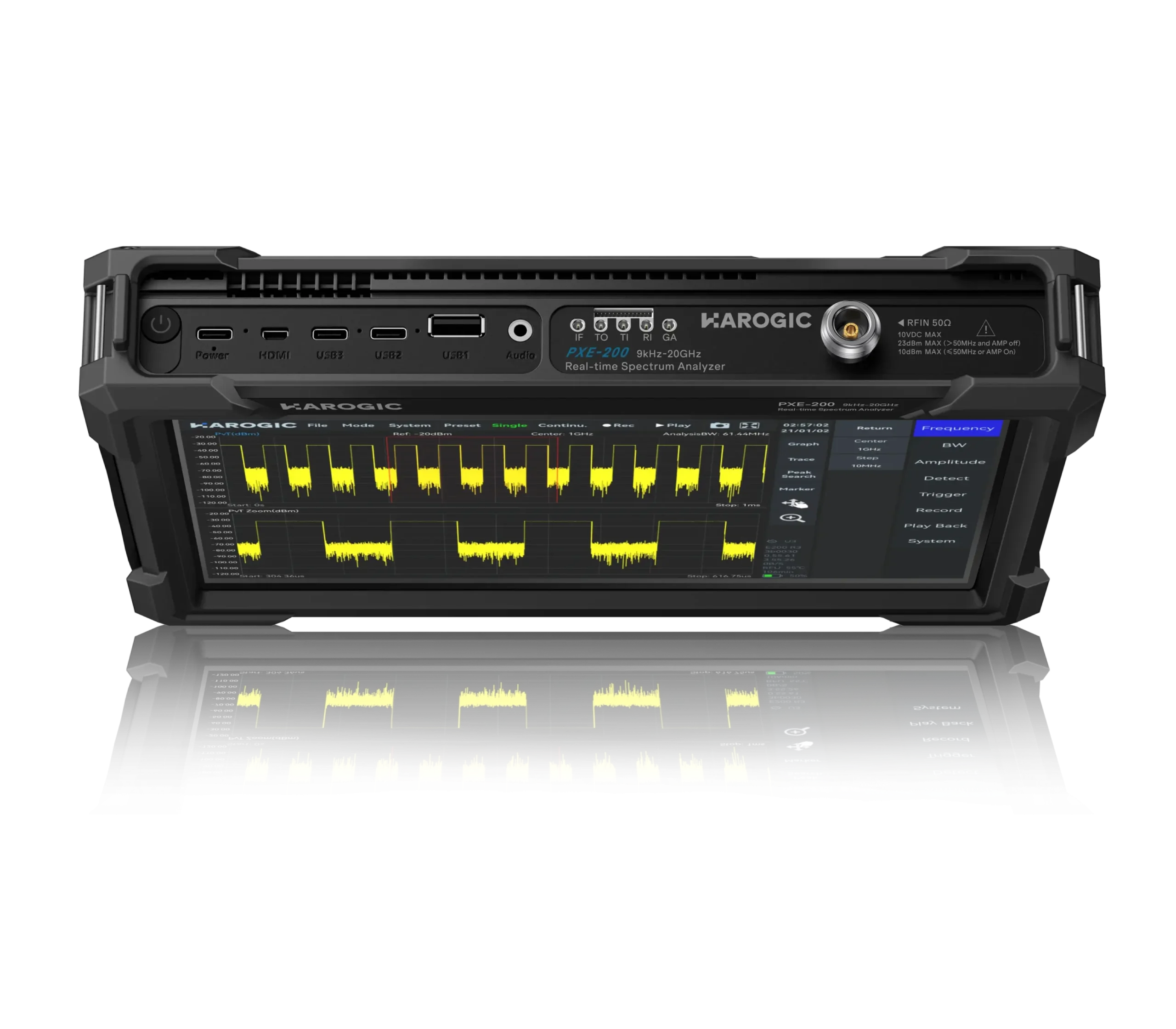

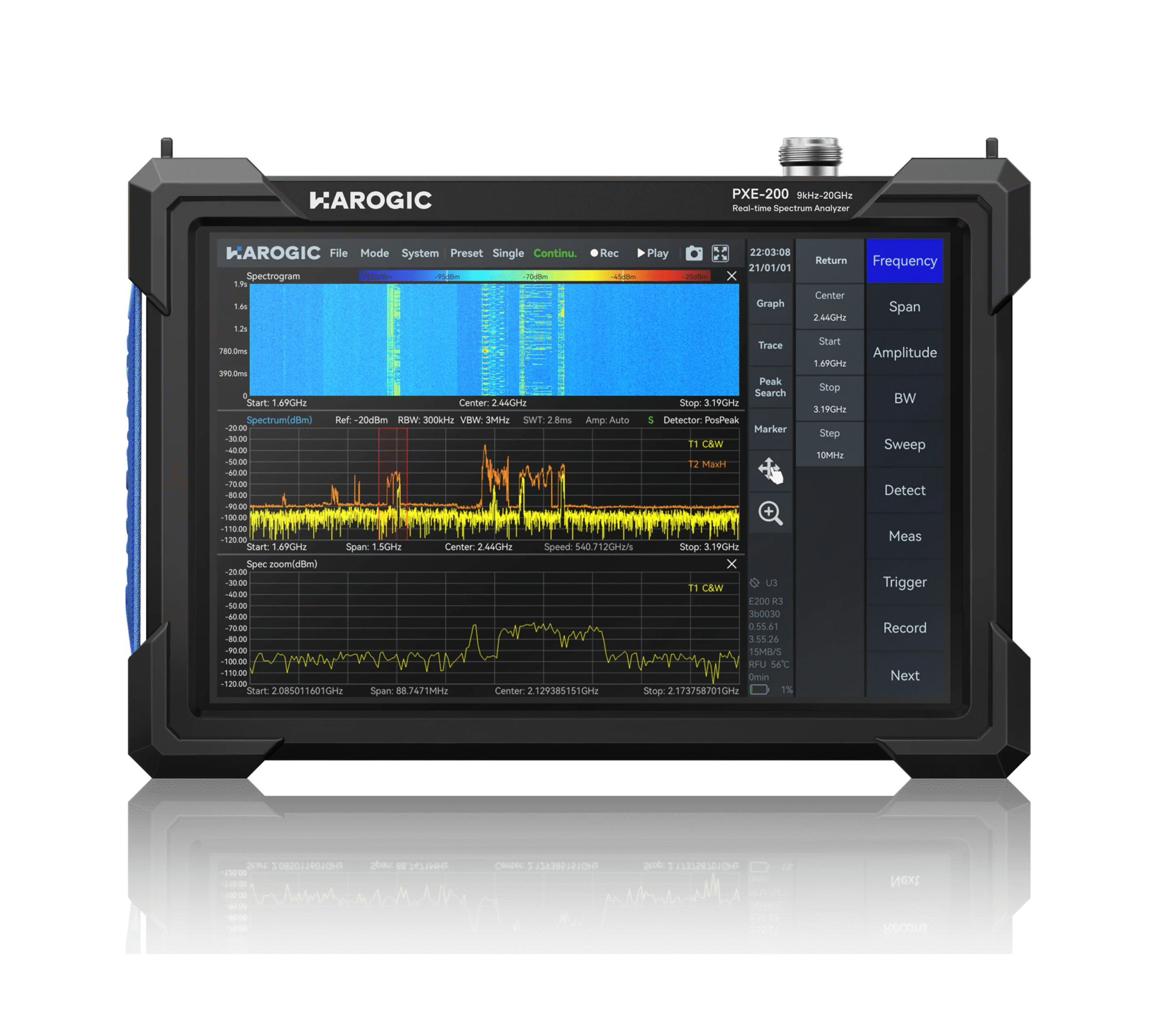

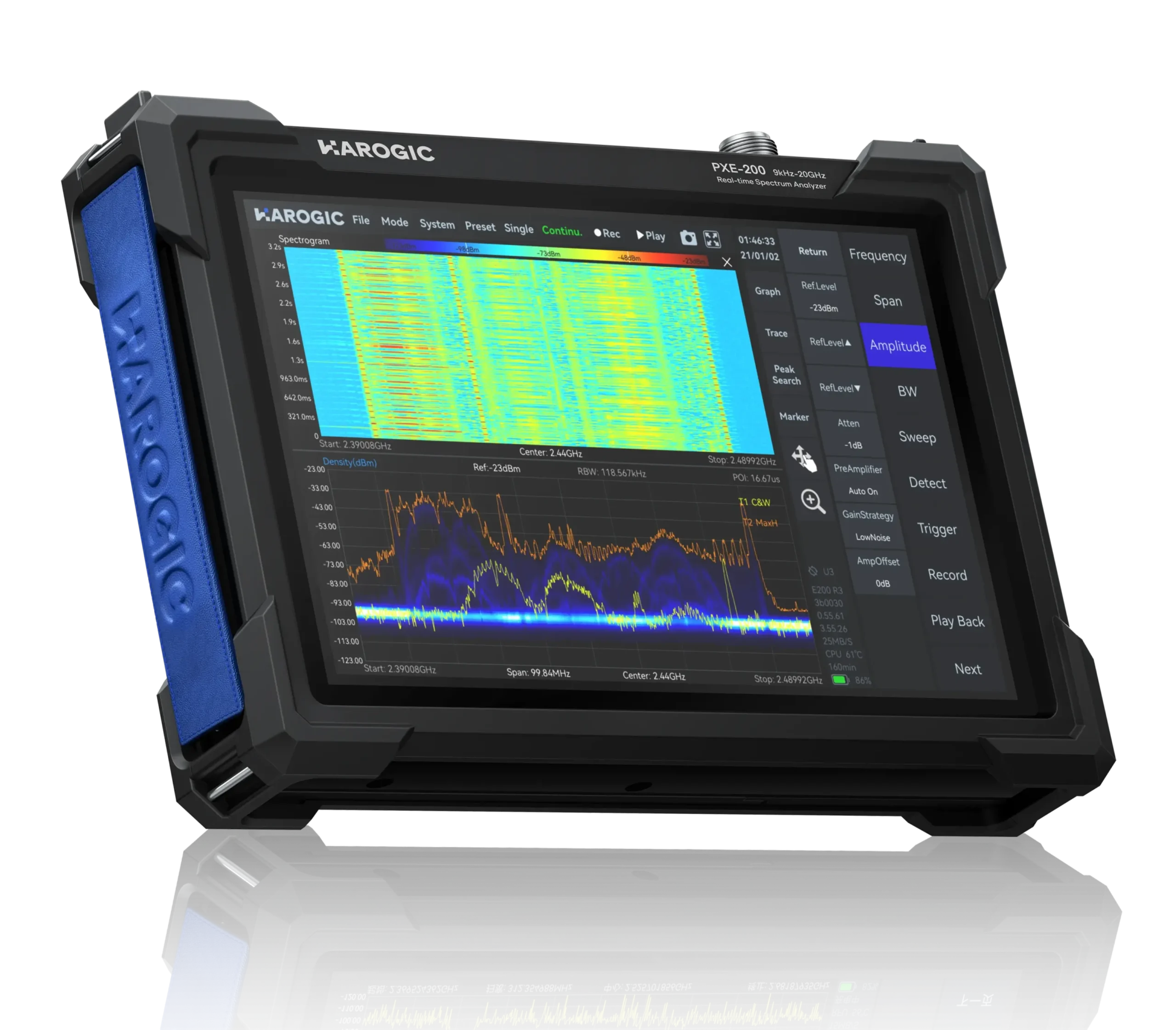

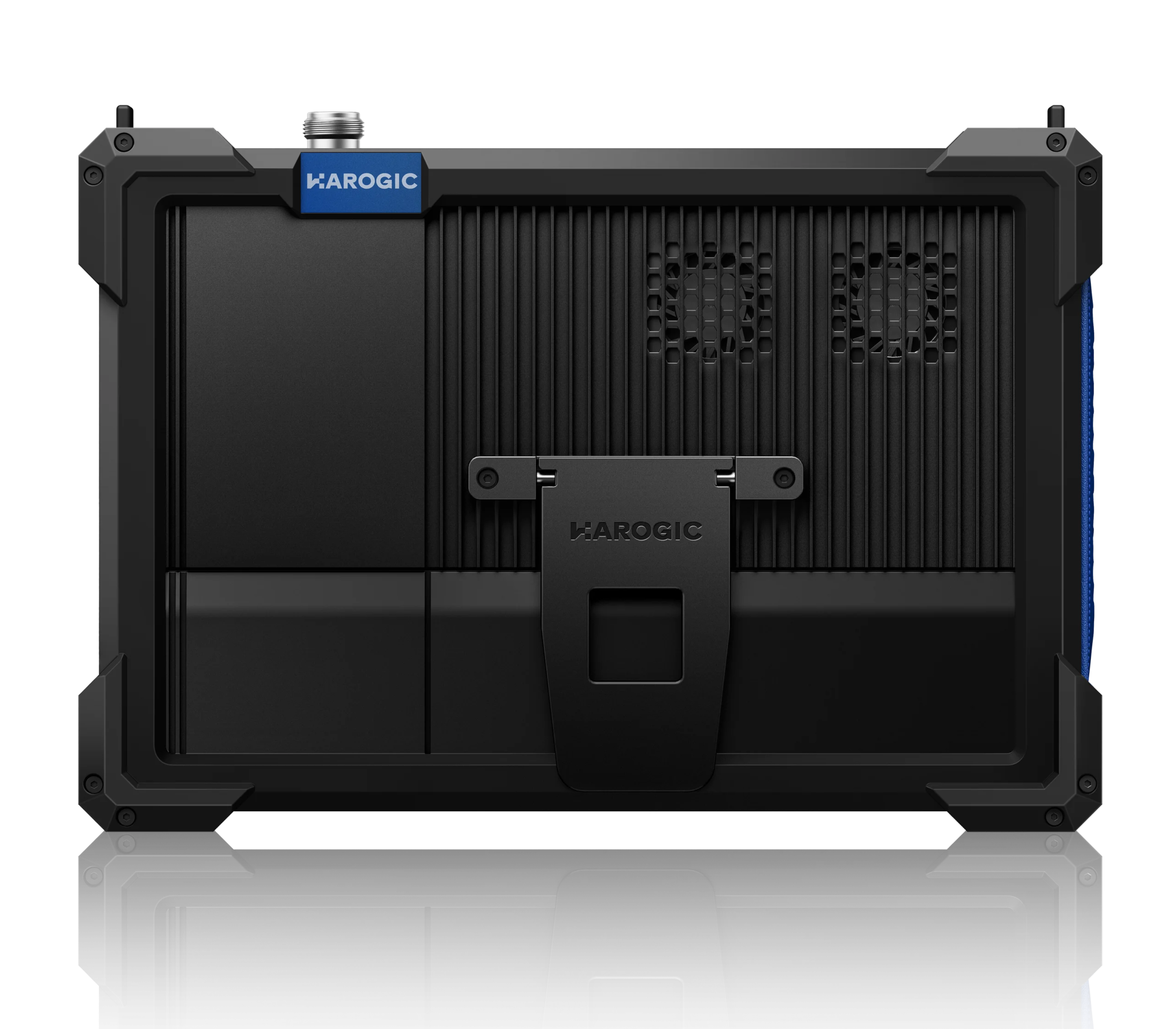

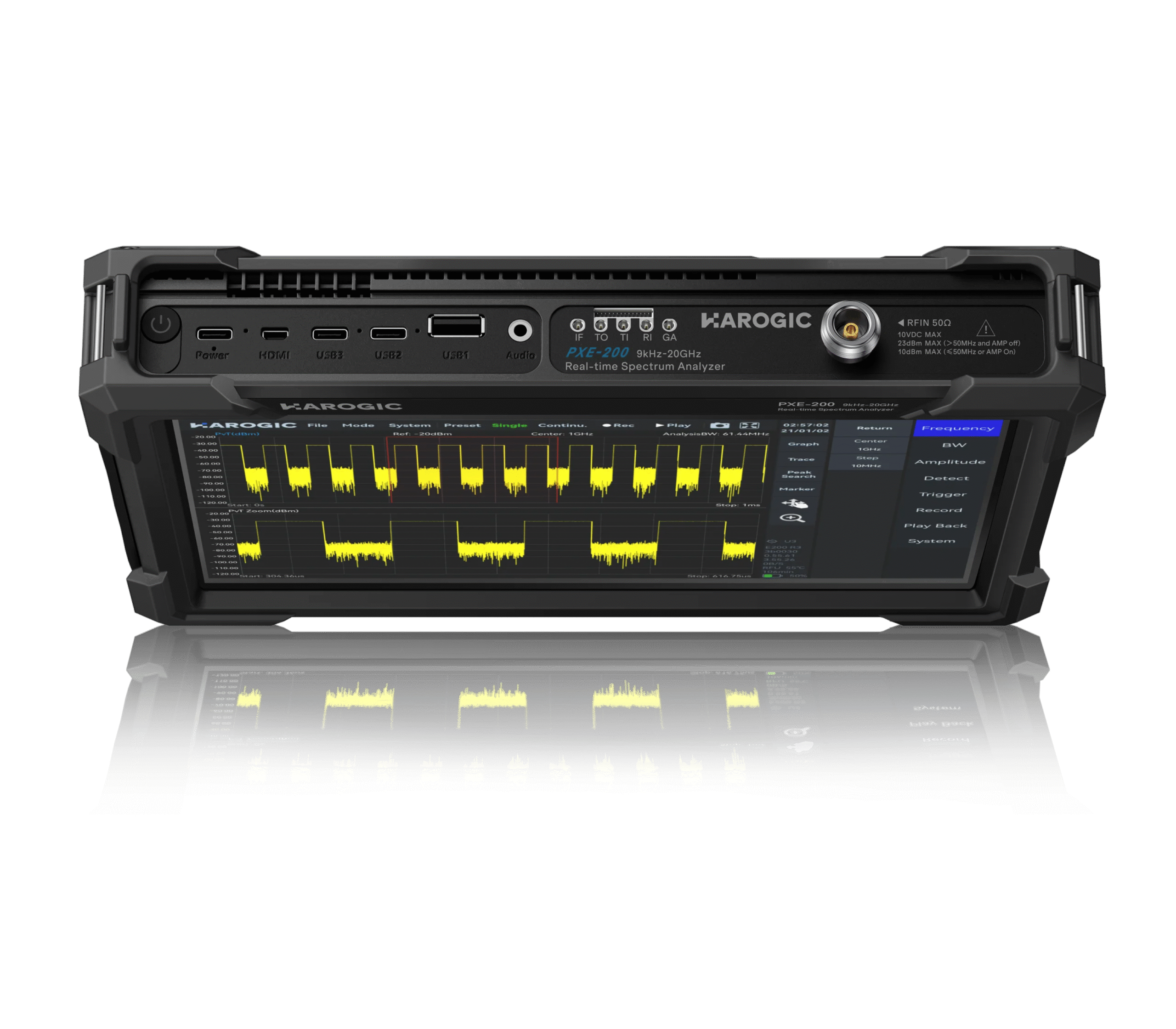

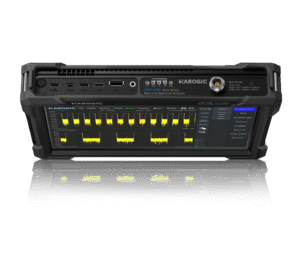

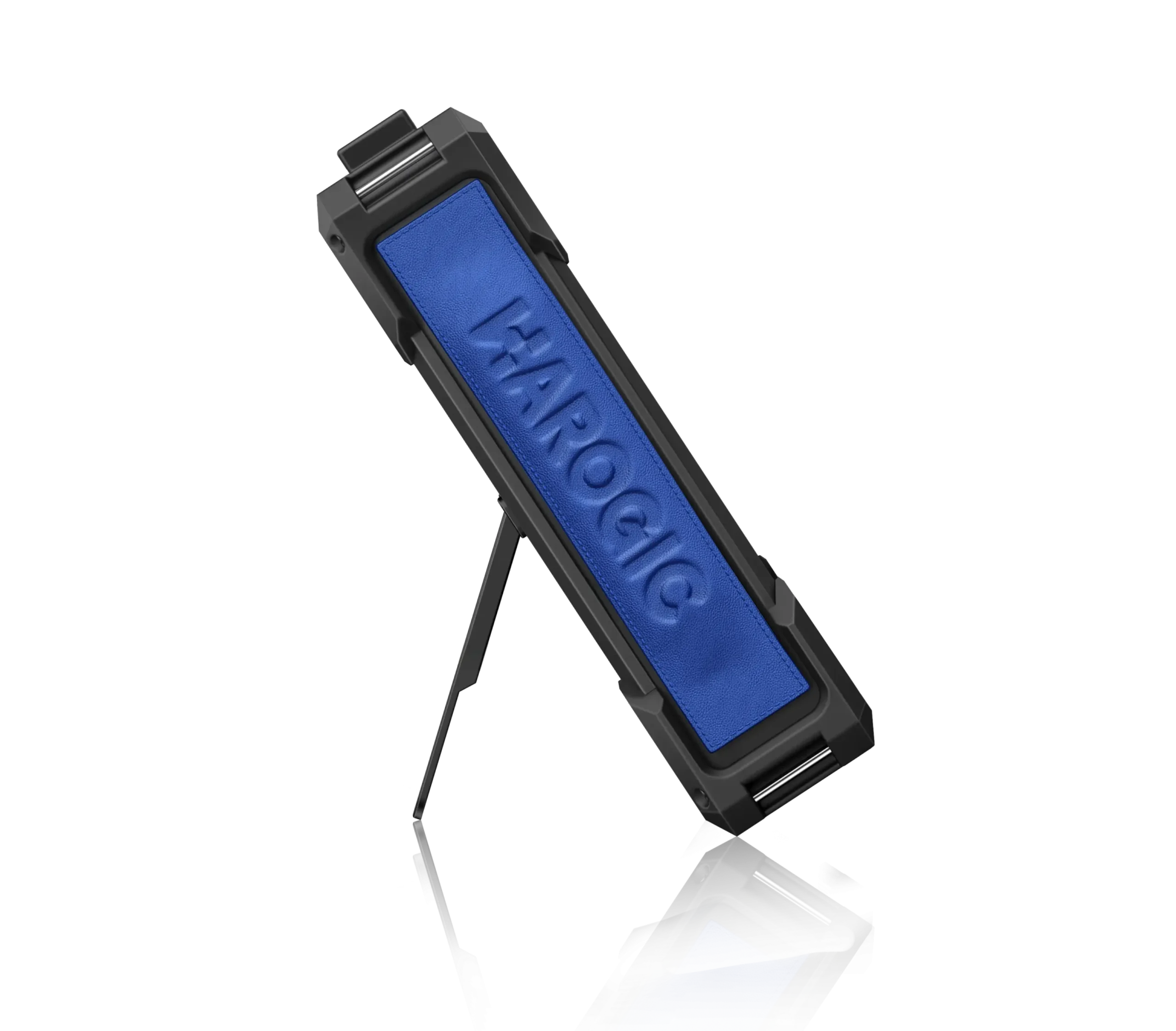

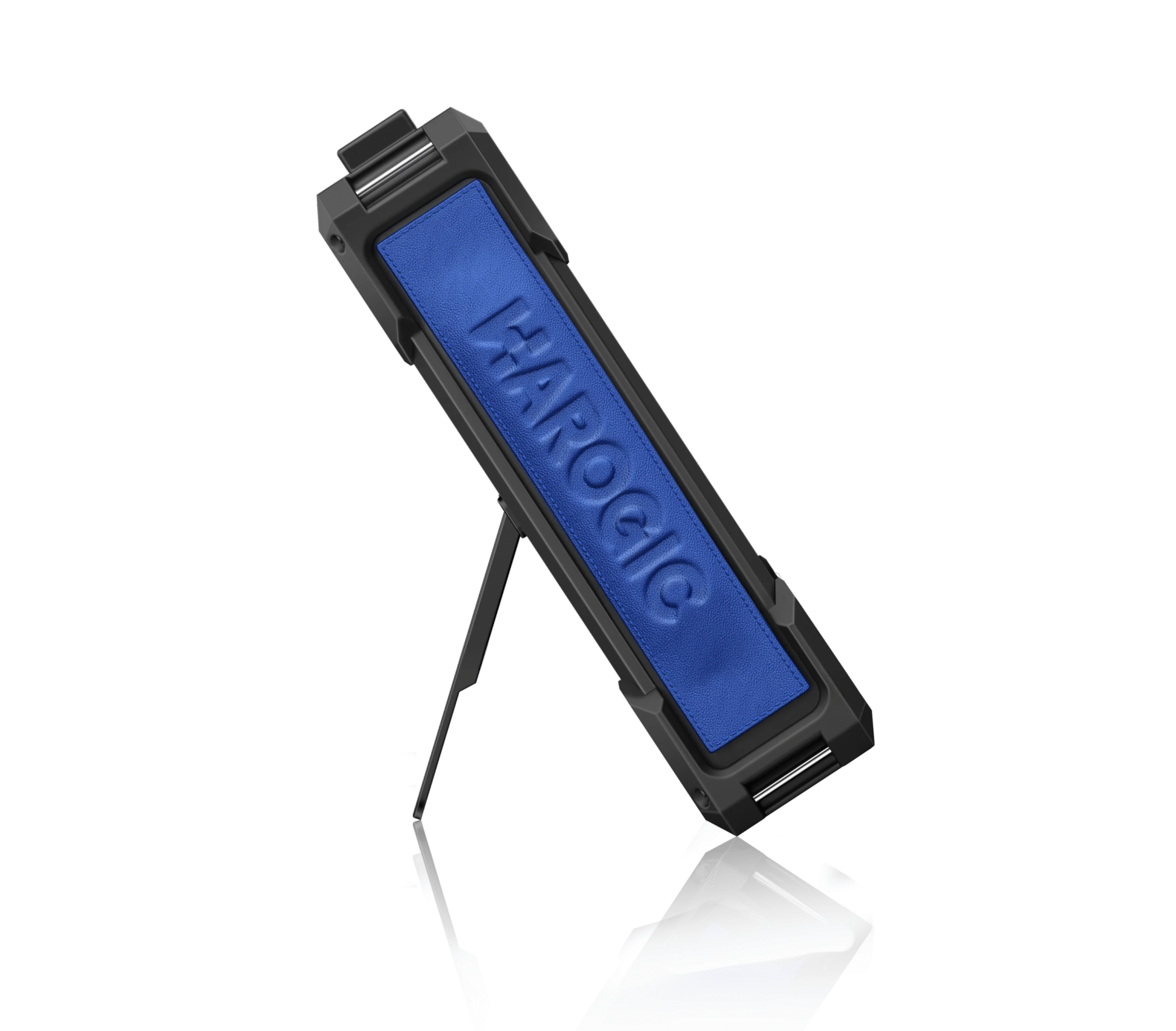

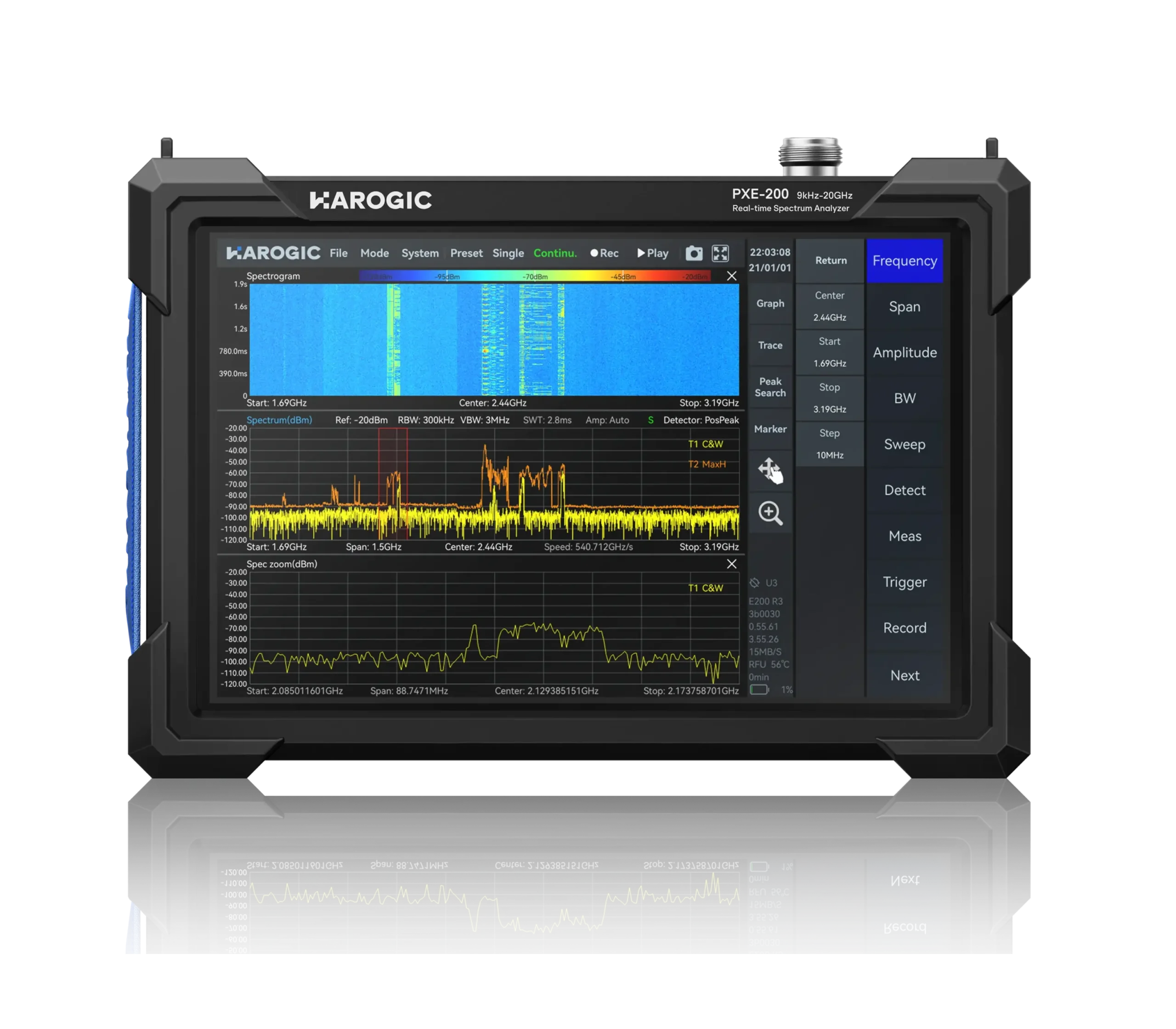

PXE-200 Series
PXE-200 Series - Image 2
PXE-200 Series - Image 3
PXE-200 Series - Image 4
PXE-200 Series - Image 5
DEA high voltage power supply
DEA high voltage power supply
Back to products
PXN-400 Series
PXN-400 Series

PXE-200 Series

KEY FACTS

  • Frequency Range: 9 kHz to 20 GHz
  • 1 GHz DNAL: -165 dBm/Hz (typ.)
  • 1 GHz Phase Noise: -101 dBc/Hz@10 kHz (typ.)
  • Analysis Bandwidth: 100 MHz
  • 3 Hours Battery Time (typ.)
  • Channel Power, ACPR, OBM, Phase Noise and More (std.)



Benefits Highlight

PXE series is the real-time spectrum analyzer up to 20 GHz with analytical bandwidth of 100 MHz and ultra-fast speed of 900 GHz/s, delivering standard spectrum sweep (SWP), IQ streaming (IQS), zero span (DET) and real-time analysis (RTA) working mode. The PXE-200 achieves good dynamic range and phase noise level. It can provide customers with spectrum analyzer, spectrum monitoring, interference finding, RF test and measurement functions.



Get Quote
Categories: ,
Description

KEY FACTS

  • Frequency Range: 9 kHz to 20 GHz
  • 1 GHz DNAL: -165 dBm/Hz (typ.)
  • 1 GHz Phase Noise: -101 dBc/Hz@10 kHz (typ.)
  • Analysis Bandwidth: 100 MHz
  • 3 Hours Battery Time (typ.)
  • Channel Power, ACPR, OBM, Phase Noise and More (std.)



Benefits Highlight

PXE series is the real-time spectrum analyzer up to 20 GHz with analytical bandwidth of 100 MHz and ultra-fast speed of 900 GHz/s, delivering standard spectrum sweep (SWP), IQ streaming (IQS), zero span (DET) and real-time analysis (RTA) working mode. The PXE-200 achieves good dynamic range and phase noise level. It can provide customers with spectrum analyzer, spectrum monitoring, interference finding, RF test and measurement functions.
