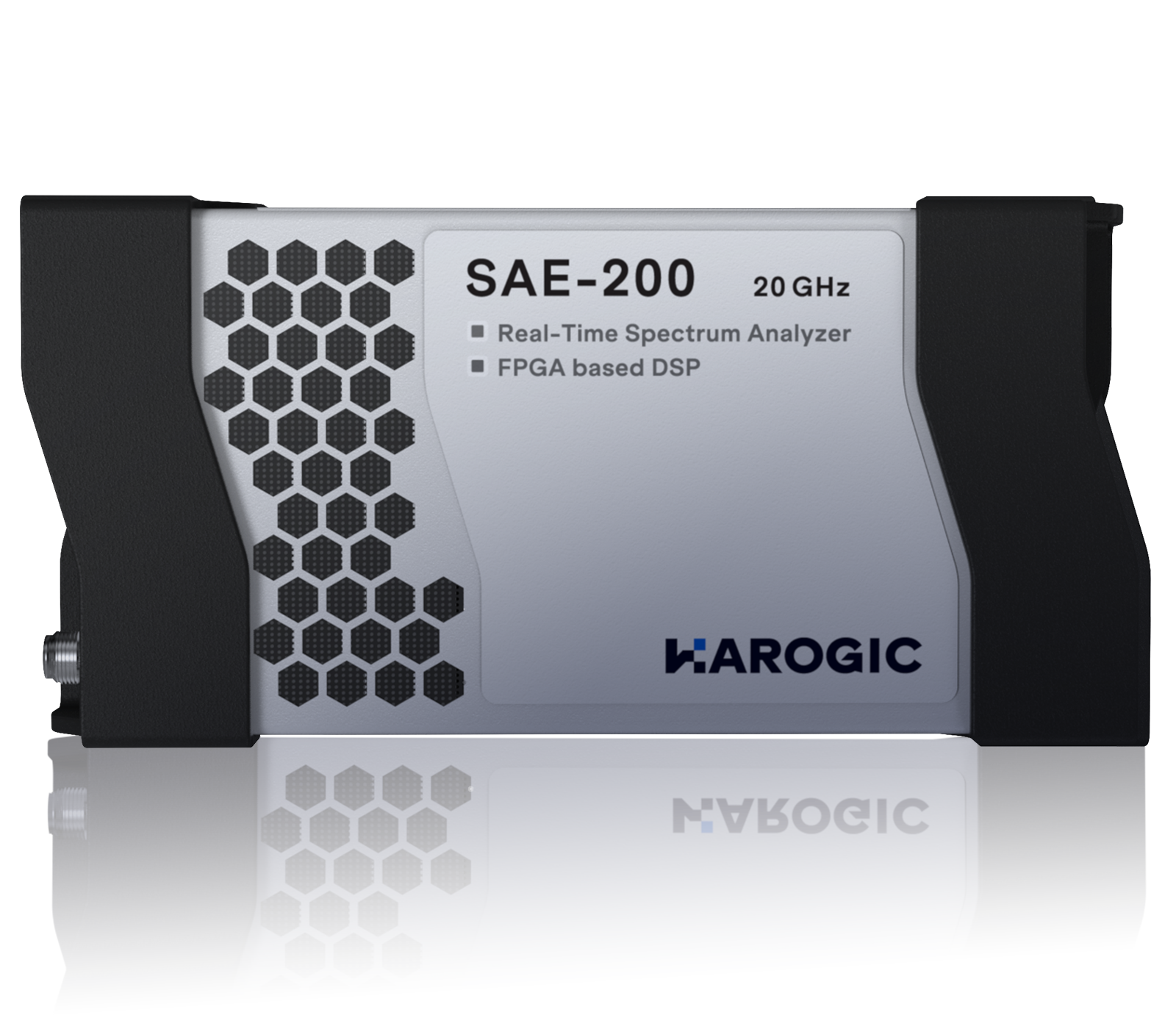

SAE Series

KEY FACTS

  • Frequency Range: 9 kHz To 9.5/20 GHz
  • 1 GHz DANL: -168 dBm/Hz
  • 1 GHz Phase Noise: -100 dBc/Hz@10 kHz
  • Analysis Bandwidth: Up to 100 MHz
  • USB3.0/2.0 Type C Interface
  • Highly Compatible API Interface
  • ARM and X86 Processor Are Supported
  • Linux and Windows Operating Systems Are Supported

Benefits Highlight

SAE series offers cutting-edge RF spectrum analysis in a compact, USB-powered package. Covering 9 kHz up to 20 GHz, it features a remarkable 100 MHz analysis bandwidth and ultra-fast 1.2 THz/s sweep speed. With superior image suppression and IF rejection, it’s an ideal portable tool for precise and efficient spectrum analysis, compatible with both Linux and Windows operating systems.

Get Quote
Categories: ,
Description

KEY FACTS

  • Frequency Range: 9 kHz To 9.5/20 GHz
  • 1 GHz DANL: -168 dBm/Hz
  • 1 GHz Phase Noise: -100 dBc/Hz@10 kHz
  • Analysis Bandwidth: Up to 100 MHz
  • USB3.0/2.0 Type C Interface
  • Highly Compatible API Interface
  • ARM and X86 Processor Are Supported
  • Linux and Windows Operating Systems Are Supported

Benefits Highlight

SAE series offers cutting-edge RF spectrum analysis in a compact, USB-powered package. Covering 9 kHz up to 20 GHz, it features a remarkable 100 MHz analysis bandwidth and ultra-fast 1.2 THz/s sweep speed. With superior image suppression and IF rejection, it’s an ideal portable tool for precise and efficient spectrum analysis, compatible with both Linux and Windows operating systems.
