SAM Series
KEY FACTS
- Frequency Range: 9 kHz to 6.3/8.5 GHz
- 1 GHz DANL: -166 dBm/Hz
- 1 GHz Phase Noise: -110 dBc/Hz@10 kHz
- Analysis Bandwidth: Up to 100 MHz

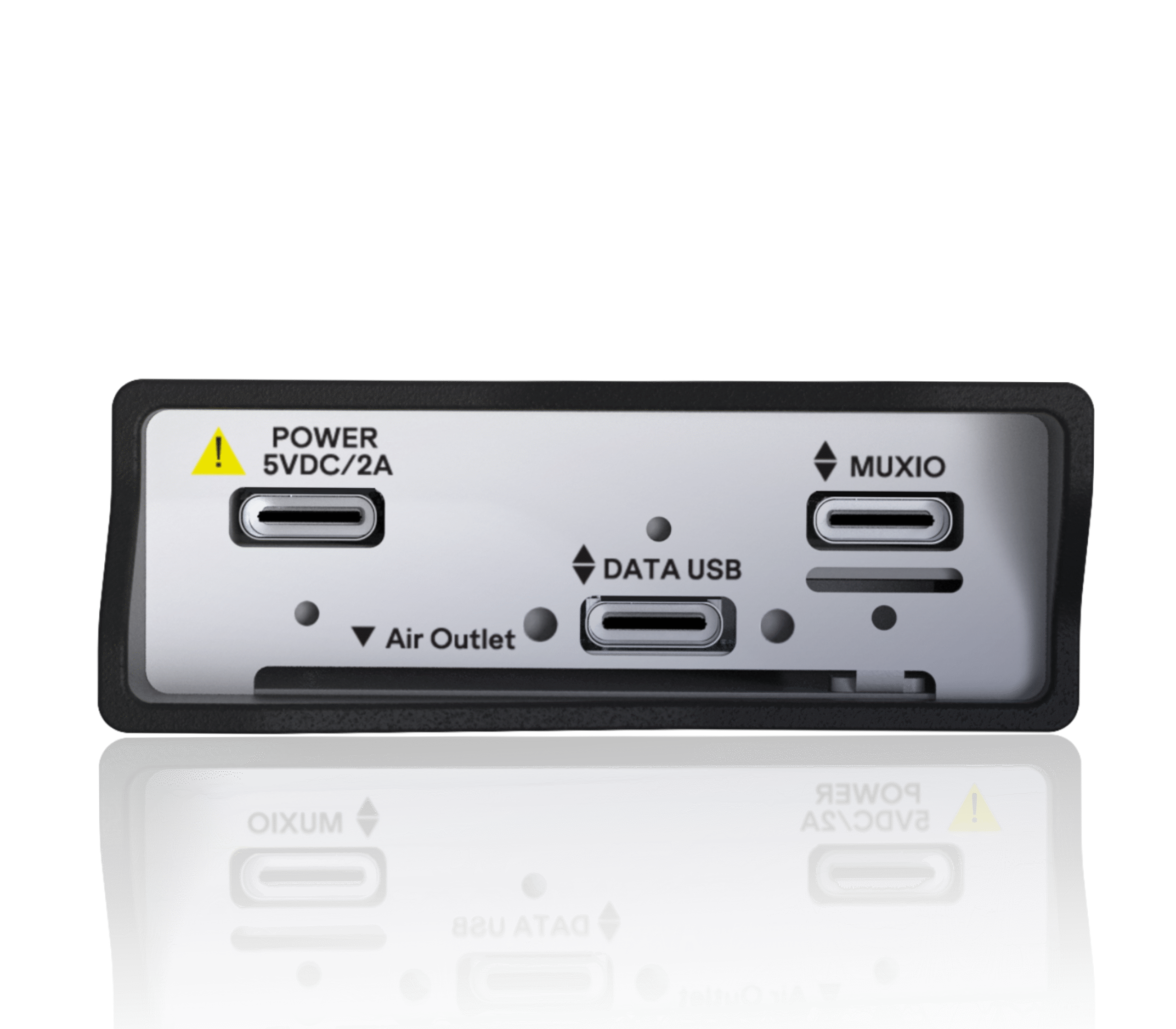

- USB3.0/2.0 Type C Interface
- Highly Compatible API Interface
- ARM and X86 Processor Are Supported
- Linux and Windows Operating Systems Are Supported
Benefits Highlight

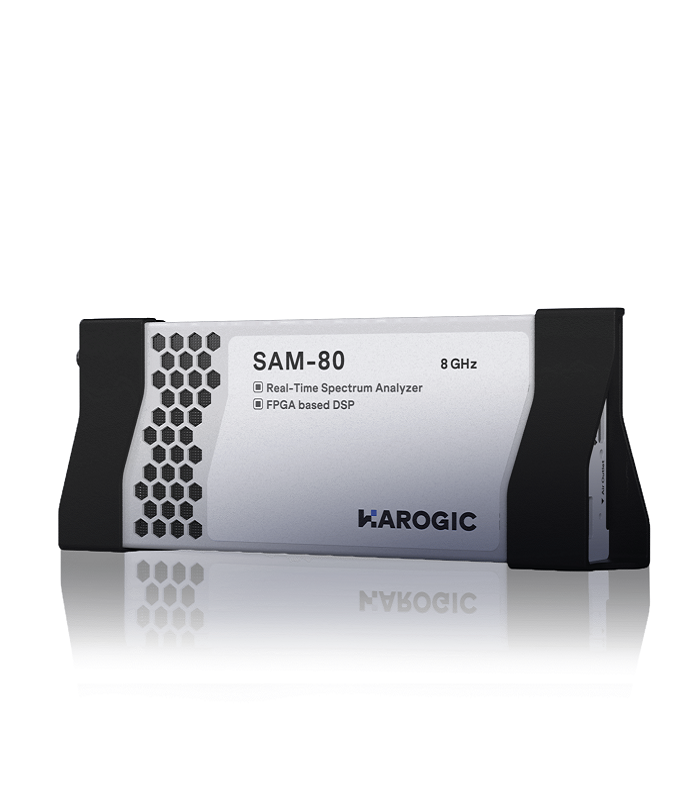

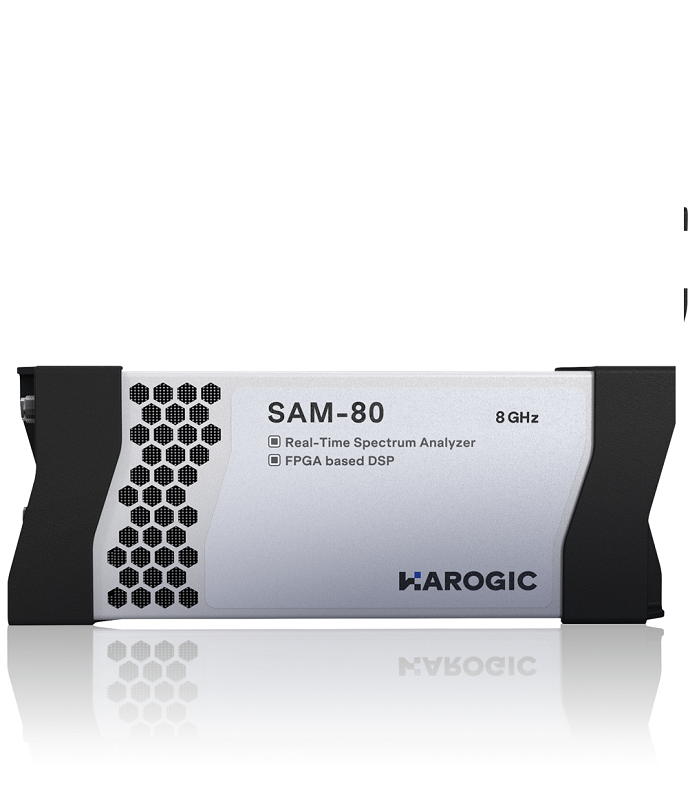

SAM series is a compact USB real-time spectrum analyzer from HAROGIC Technologies. It covers a frequency range of 9 kHz to 8.5 GHz and features an analysis bandwidth of 100 MHz with a spectrum sweep speed of 300 GHz/s. It also includes FPGA-based digital signal processing and offers 1 GHz phase noise over -114 dBc/Hz at 10 kHz offset.
Description
KEY FACTS
- Frequency Range: 9 kHz to 6.3/8.5 GHz
- 1 GHz DANL: -166 dBm/Hz
- 1 GHz Phase Noise: -110 dBc/Hz@10 kHz
- Analysis Bandwidth: Up to 100 MHz
- USB3.0/2.0 Type C Interface
- Highly Compatible API Interface
- ARM and X86 Processor Are Supported
- Linux and Windows Operating Systems Are Supported
Benefits Highlight
SAM series is a compact USB real-time spectrum analyzer from HAROGIC Technologies. It covers a frequency range of 9 kHz to 8.5 GHz and features an analysis bandwidth of 100 MHz with a spectrum sweep speed of 300 GHz/s. It also includes FPGA-based digital signal processing and offers 1 GHz phase noise over -114 dBc/Hz at 10 kHz offset.
