JEET measuring endoscope is suitable for aerospace, precision manufacturing and other fields,JEET 3D measuring endoscope has a variety of measurement methods such as point-to-point, point-to-line, polyline, etc., so that the probe can also measure the defects of the inspected object in narrow gaps, and the measurement accuracy can reach more than 95%! Moreover, it supports the replacement of pipeline systems with pipe diameters of 1.0mm-8.0mm, and can choose direct view/side view/straight side view in one direction.

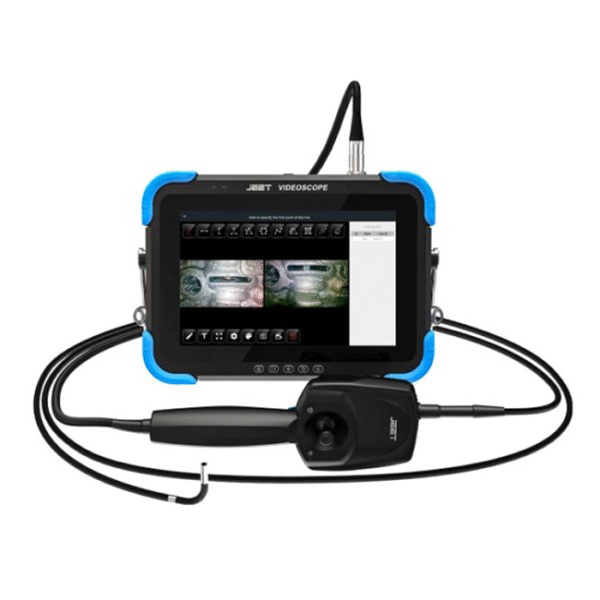

JEET F-Series 3D Measurement Industrial Videoscope | Remote Visual Inspection Borescope

Model F
Diameter 1.0/1.8/2.2/2.8/3.8/6.0/8.0mm
DOF 10~100mm
Sensor HD image sensor
Resolution HD 1000000 pixels
Working length 2m/3m, customized
Material Abrasion-resistant alloy
Articulation 360°
Bending angle ≤150°

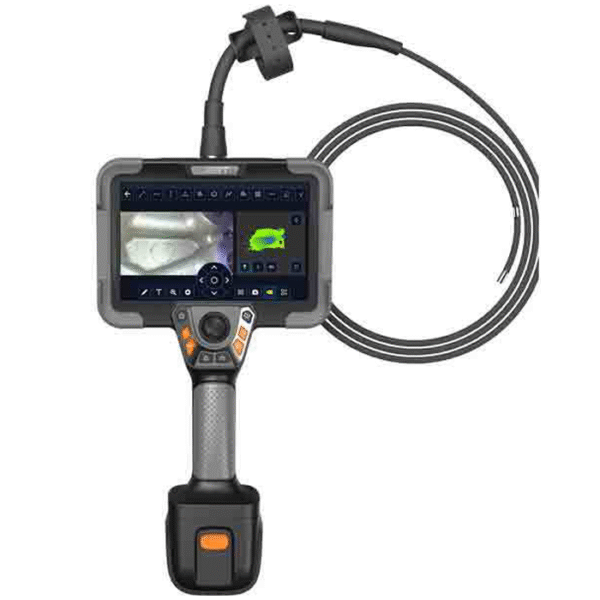

JEET JX Motor-driven 3D Measurement Videoscope

Model JX
Diameter 1.0/1.8/2.2/2.8/3.8/6.0/8.0mm
Tube Length 1m~10m
DOF 3-25mm/10-110mm
Articulation 360°all-way
Light Source LED/optic fiber
FOV 90°/120°
Measurement Accuracy ≥95%
Minimum Accuracy 0.01mm
Standard Accuracy 0.1mm

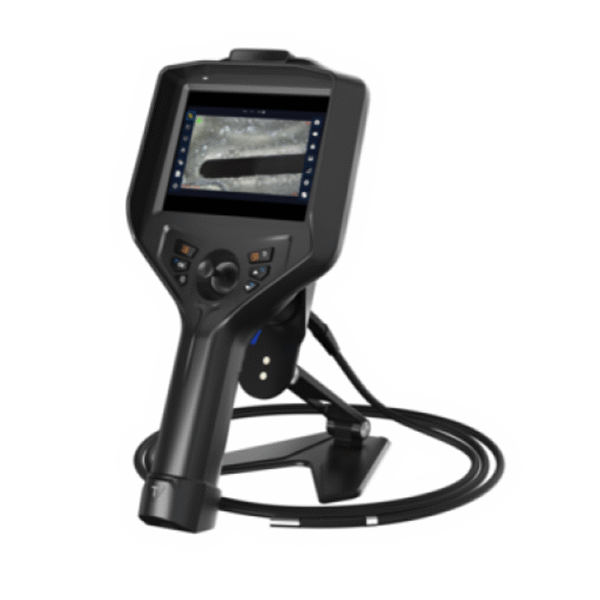

JEET TS series handheld measurement videoscope

Model TS
Diameter 1.8mm/2.2mm/2.8mm/3.9mm/6mm/8mm
Working length 1.5m/2m/3m(customized)
photo/video resolution 640 x 480/1280 x 720
DOF 5mm-50mm/10mm-100mm
Viewing Direction front view/side view front view/side view/dual-cam
Standard precision value 0.1mm
Minimum precision value 0.01mm
Accuracy ≥95%
Articulation 360°all way
